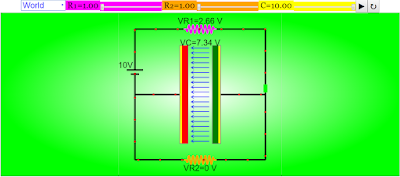

The red dots represent the electrons.
The color of the capacitor is yellow (red+green) to represent neutral charge.

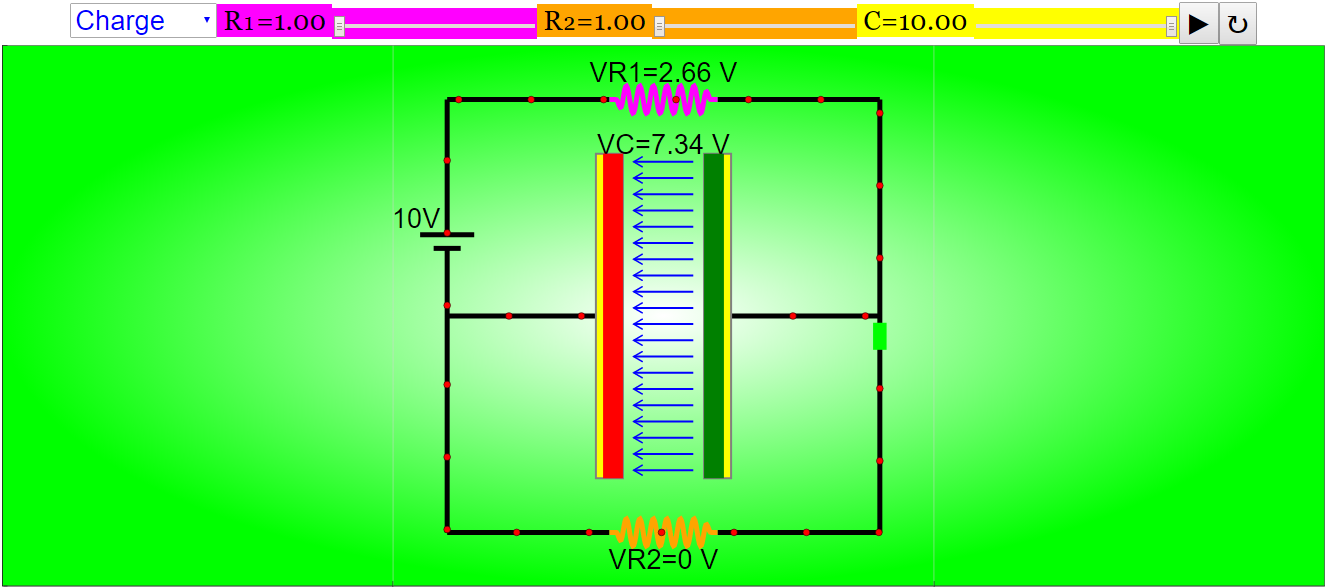

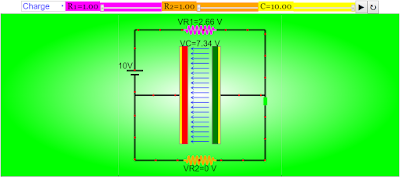

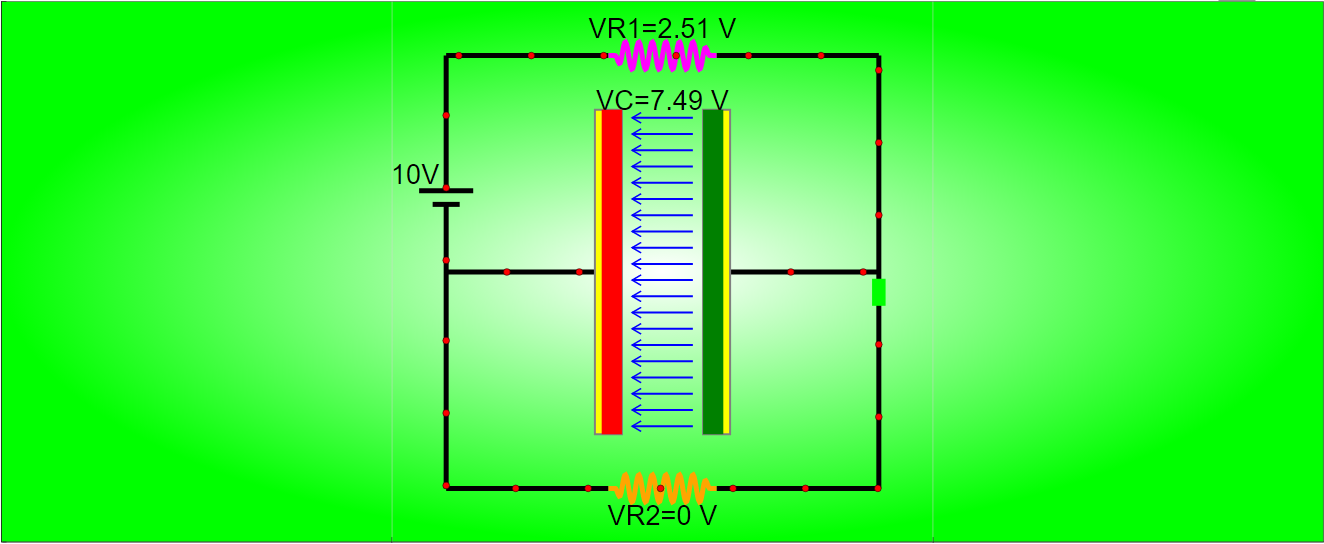

When electron enter one side of the capacitor, color for part of the region turn into red.
Another side of the capacitor lack of electron so it color turn into green.

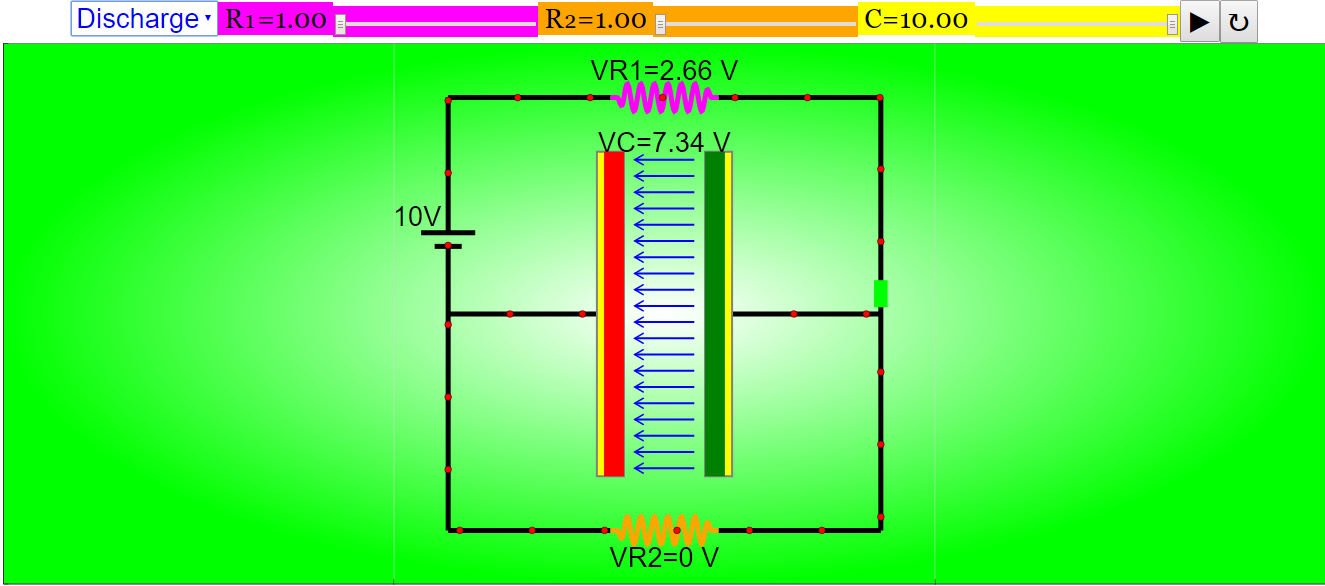

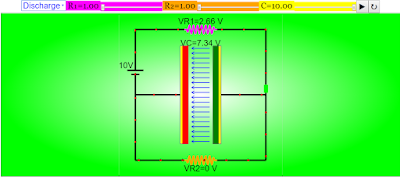

You can charge the capacitor or discharge it.

Translations

Code	Language		Translator	Run

Credits

Fu-Kwun Hwang; Fremont Teng; Loo Kang Wee

Overview:

This document provides a briefing on the "Charge or Discharge JavaScript Simulation Applet HTML5" available on the Open Educational Resources / Open Source Physics @ Singapore website. This resource is an interactive simulation designed to visually demonstrate the charging and discharging processes of a capacitor. The document outlines the main features, learning goals, and technical aspects of the applet, as described in the provided source.

Main Themes and Important Ideas/Facts:

1. Interactive Simulation for Capacitor Behavior: The primary focus of this resource is to provide users with an interactive way to understand how capacitors charge and discharge. The applet utilizes visual representations to illustrate the movement of electrons and the resulting change in charge on the capacitor plates.

• "The red dots represent the electrons."
• "You can charge the capacitor or discharge it."

1. Visual Representation of Charge: The simulation employs color changes on the capacitor to indicate its charge state. A neutral capacitor is yellow, and as it charges, parts turn red (excess electrons) and green (lack of electrons). This provides an intuitive visual link between electron movement and charge accumulation.

• "The color of the capacitor is yellow (red+green) to represent neutral charge."
• "When electron enter one side of the capacitor, color for part of the region turn into red."
• "Another side of the capacitor lack of electron so it color turn into green."

1. User Control and Exploration: The applet offers several interactive elements that allow users to control and observe the charging and discharging processes. These include toggles for different displays (Charge, Discharge, World, Graph, Both), sliders for adjusting resistance and charge, and play/pause/reset buttons for controlling the simulation flow.

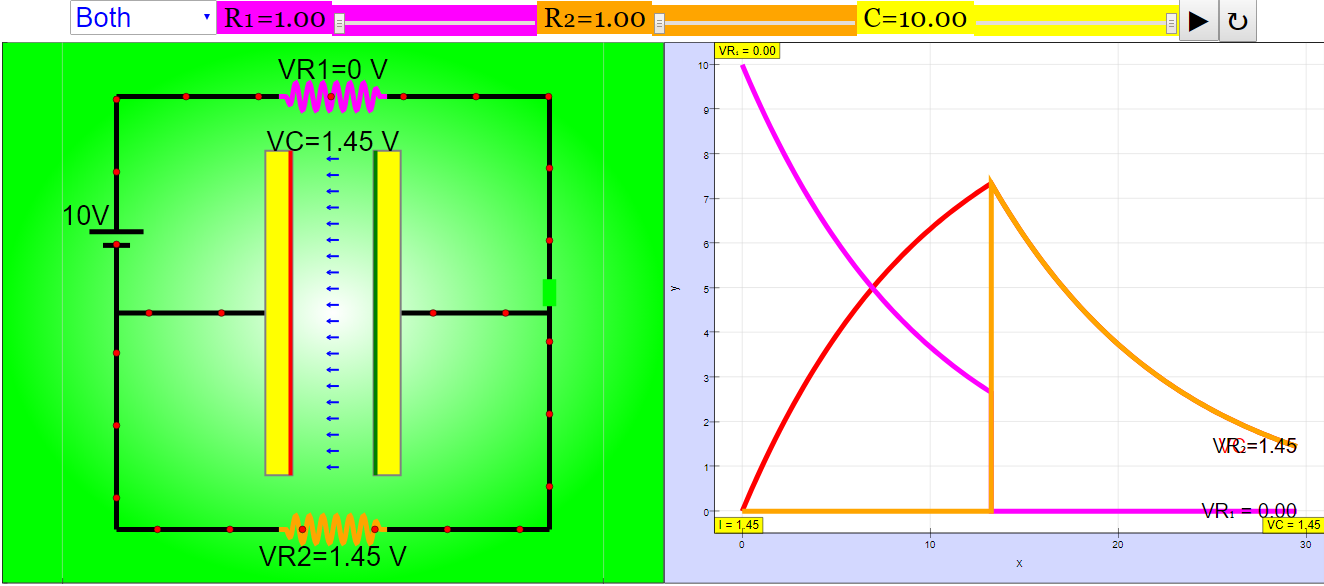

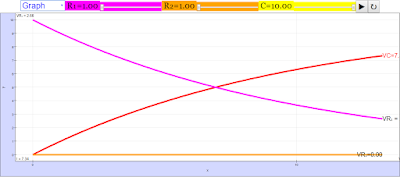

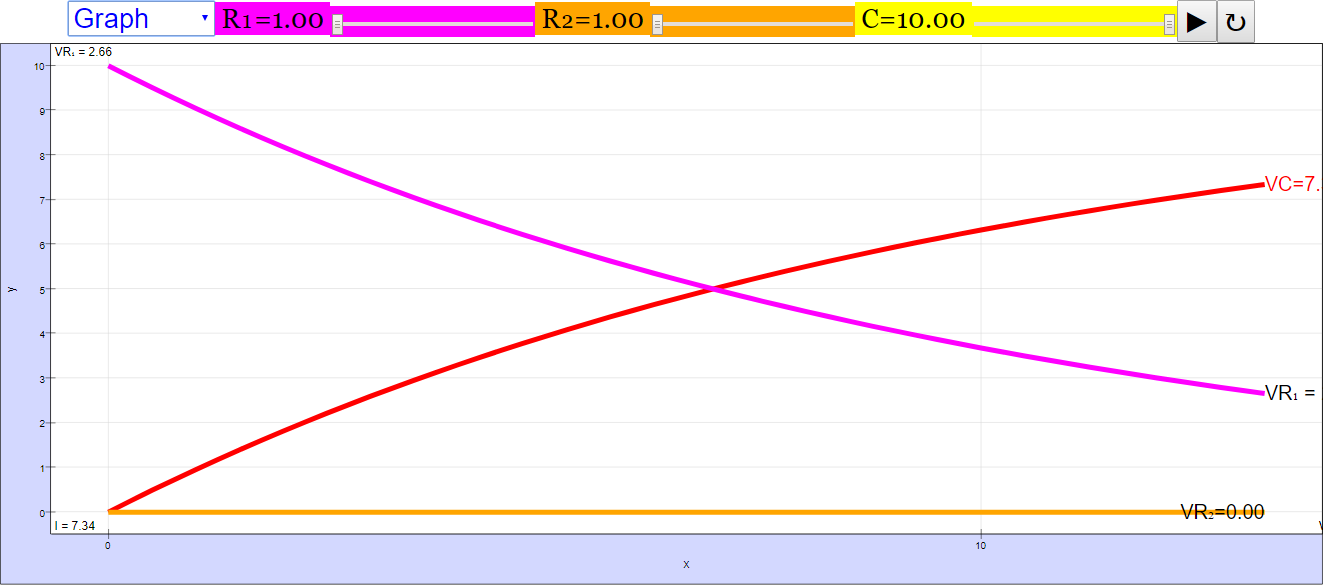

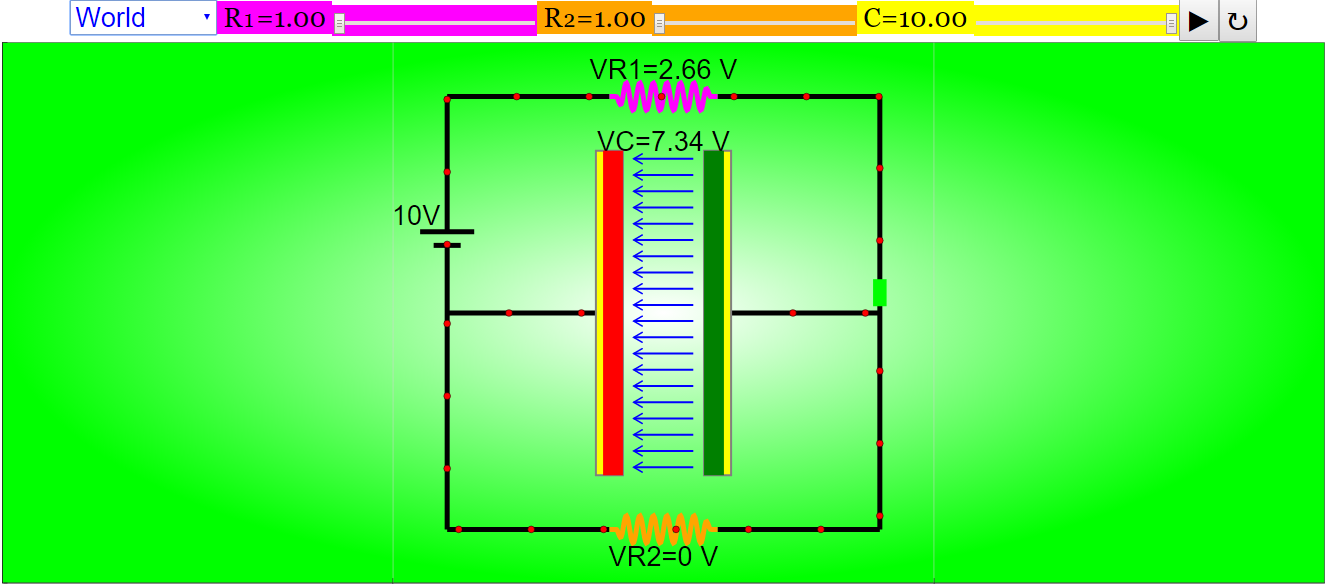

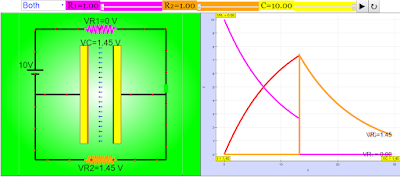

• Display Combo Box: "Toggling the display combo box will toggle the respective displays. (Charge) (Discharge) (World) (Graph) (Both)"
• Sliders: "Toggling the sliders were adjust the respective resistors and charge."
• Play/Pause and Reset Buttons: "Plays/Pauses and resets the simulation respectively."

1. Embeddable Resource: The simulation is provided as an HTML5 applet that can be easily embedded into other webpages using an iframe. This facilitates its integration into various online learning environments.

• Embed this model in a webpage: <iframe width="100%" height="100%" src="https://iwant2study.org/lookangejss/05electricitynmagnetism_19practicalelectricity/ejss_model_chargerc/chargerc_Simulation.xhtml " frameborder="0"></iframe>

1. Open Educational Resource: The resource is part of the Open Educational Resources / Open Source Physics @ Singapore initiative, suggesting it is freely available for educational purposes. The licensing information at the bottom of the page confirms a Creative Commons Attribution-Share Alike 4.0 Singapore License for the content.
2. Credits and Development: The applet is credited to Fu-Kwun Hwang, Fremont Teng, and Loo Kang Wee, indicating the individuals responsible for its creation.
3. Sample Learning Goals (Implied): While the specific learning goals are not explicitly detailed in the provided excerpt (marked as "[texthttps://iwant2study.org/lookangejss/05electricitynmagnetism_19practicalelectricity/ejss_model_chargerc/chargerc_Simulation.xhtml " frameborder="0"></iframe>"
4. "Toggling the display combo box will toggle the respective displays. (Charge) (Discharge) (World) (Graph) (Both)"
5. "Toggling the sliders were adjust the respective resistors and charge."
6. "Plays/Pauses and resets the simulation respectively."

Conclusion:

The "Charge or Discharge JavaScript Simulation Applet HTML5" is a valuable open educational resource for teaching and learning about the fundamental principles of capacitor behavior. Its interactive nature, visual representations, and embeddability make it a useful tool for both students and educators in exploring the concepts of charging and discharging in a dynamic and engaging way. The availability of related simulations on the platform further enhances its potential for supporting comprehensive learning in physics and mathematics.
