Study Guide: Bungee SHM

Overview: This study guide is designed to help you review the concepts related to Simple Harmonic Motion (SHM) in the context of a bungee cord system, based on the provided source materials. The materials primarily introduce and describe an interactive simulation ("SHM Bungee with Damping HTML5 Applet Javascript") and its associated resources.

Key Concepts:

• Simple Harmonic Motion (SHM): A type of periodic motion where the restoring force is directly proportional to the displacement and acts in the direction opposite to that of displacement.
• Oscillations: The repetitive variation, typically in time, of some measure about a central value or between two or more different states.
• Bungee Cord System: A system involving an elastic cord that can stretch significantly under load and then return to its original length. When combined with a mass and gravity, it can exhibit oscillatory motion.
• Damping: A process that dissipates the energy of an oscillating system, causing the amplitude of oscillations to decrease over time.
• Amplitude: The maximum displacement or distance moved by a point on a vibrating body or wave measured from its equilibrium position.
• Period: The time taken for one complete cycle of oscillation.
• Damping Ratio: A dimensionless measure describing how oscillations in a system decay after a disturbance.
• Graphs of Motion: Visual representations of how quantities like displacement, velocity, and acceleration change with time or with respect to each other.

Review Questions:

1. What is Simple Harmonic Motion, and what are its key characteristics?
2. How does a bungee cord system, when a mass is attached and allowed to move under gravity, potentially exhibit oscillatory motion?
3. What is meant by "damping" in the context of oscillations, and how does it affect the motion of a system?

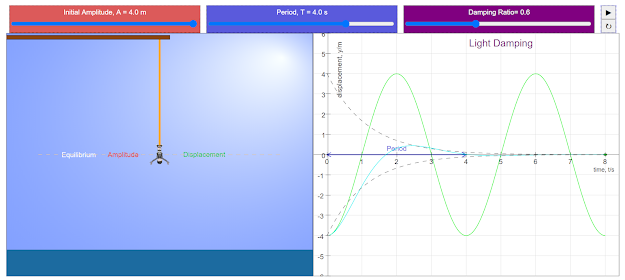

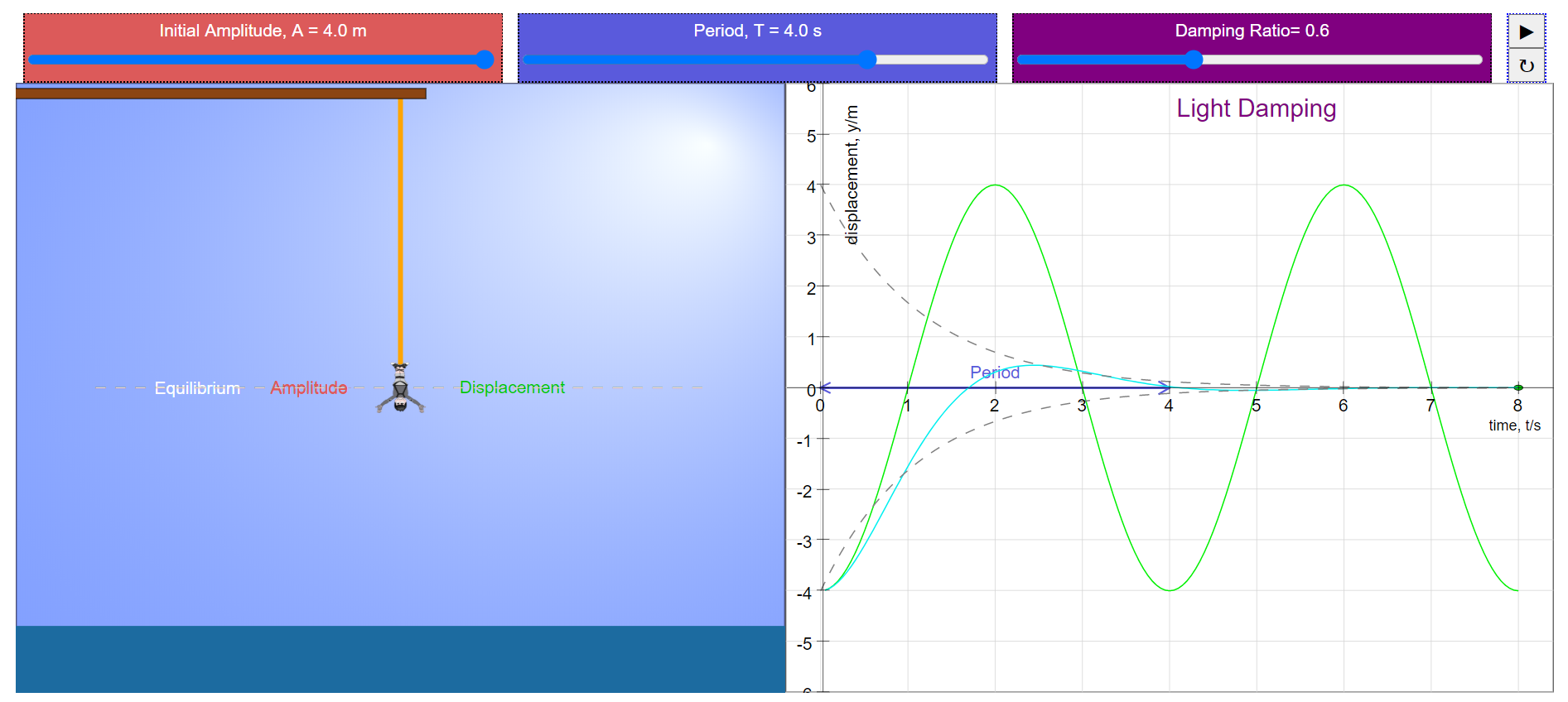

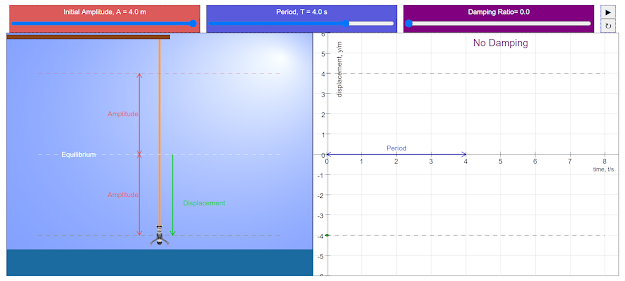

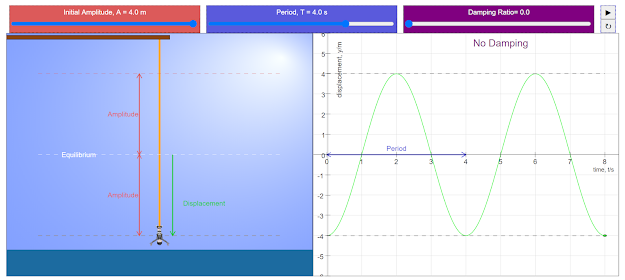

4. According to the "SHM Bungee with Damping HTML5 Applet Javascript" description, what parameters can a user typically change in the initial setup of the simulation?
5. What types of graphs might be useful for analyzing the motion of a bungee-mass system undergoing SHM with damping?
6. What is the significance of the "breadcrumbs" listed on the "SHM Bungee with Damping HTML5 Applet Javascript" page?
7. Who are the credited authors and contributors for the resources mentioned in the source materials?
8. What is the stated license under which the "Bungee SHM" document and the "SHM Bungee with Damping HTML5 Applet Javascript" are released?
9. What are some potential learning goals associated with using the "SHM Bungee with Damping HTML5 Applet Javascript" simulation?
10. Besides the SHM bungee simulations, what other types of interactive simulations are hosted on the "Open Educational Resources / Open Source Physics @ Singapore" website, as indicated by the provided list?

Quiz:

1. Define Simple Harmonic Motion in your own words and provide one example of a system that can exhibit it.
2. Explain how a bungee cord's elastic properties contribute to the potential for oscillatory motion when a mass is attached and released.
3. What is the role of damping in a real-world oscillating system like a bungee jumper, and what is its effect on the amplitude of oscillations over time?
4. Based on the "SHM Bungee with Damping HTML5 Applet Javascript" description, identify at least two parameters that a user can typically adjust to observe different oscillation behaviors.
5. Describe one type of graph that could be used to analyze the relationship between the acceleration and displacement of a mass undergoing SHM in a bungee system.
6. What does the presence of "Open Educational Resources" in the website title and description suggest about the accessibility and use of these materials?
7. Name at least two individuals credited with the creation or contribution to the "Bungee SHM" resources.
8. What does the Creative Commons Attribution-Share Alike 4.0 Singapore License generally allow users to do with the materials released under it?
9. Suggest one practical learning activity that could be conducted using the "SHM Bungee with Damping HTML5 Applet Javascript" simulation, based on the provided "Sample Learning Goals."
10. Briefly mention two other physics-related topics for which interactive simulations are available on the "Open Educational Resources / Open Source Physics @ Singapore" platform, as evidenced by the list of resources.

Answer Key for Quiz:

1. Simple Harmonic Motion is a periodic motion where the restoring force is directly proportional to the displacement from the equilibrium position and acts opposite to the direction of displacement. A common example is a mass attached to a spring oscillating on a frictionless surface.
2. A bungee cord stretches when a mass is attached and pulled down by gravity. This stretching creates a restoring force within the elastic cord that pulls the mass back up towards its equilibrium position. The interplay between this restoring force and the inertia of the mass leads to oscillations.
3. Damping represents energy loss in an oscillating system due to factors like air resistance or internal friction in the bungee cord. It causes the amplitude of the oscillations to decrease gradually over time until the system eventually comes to rest at its equilibrium position.
4. According to the description, users can typically change parameters such as the Initial Amplitude, Period, and the Damping Ratio of the system in the simulation's initial setup.
5. An Acceleration vs. Displacement graph would be useful. For ideal SHM, this graph would be a straight line passing through the origin with a negative slope, indicating that the acceleration is directly proportional and opposite to the displacement.
6. The term "Open Educational Resources" suggests that these materials are freely available for use, adaptation, and sharing for educational purposes, often under specific licenses that outline permitted uses.
7. Leong Tze Kwang, Lawrence Wee Loo Kang, Francisco Esquembre, and Felix Garcia Clemente are credited with the creation of these resources.
8. The Creative Commons Attribution-Share Alike 4.0 Singapore License generally allows users to copy, distribute, display, and perform the work and to make derivative works based on it, provided they give credit to the original creators and license their new works under the same or a compatible license.
9. A learning activity could involve investigating the effect of different damping ratios on the decay of oscillations, by setting different values for the damping ratio and observing how the amplitude of the oscillations changes over time in the simulation.
10. Other physics-related topics include Newtonian Mechanics, Elasticity, Electromagnetism, Pressure, and various aspects of Oscillations beyond the simple bungee system, such as Horizontal Spring motion and Phase Circle Graphs.

Essay Format Questions:

1. Discuss the key characteristics of Simple Harmonic Motion and explain how a bungee cord system can approximate this type of motion under certain conditions. Consider the factors that might cause deviations from ideal SHM in a real bungee cord scenario.
2. Explain the concept of damping in oscillatory systems. Using the context of a bungee jump, describe the different forces that might contribute to damping and how they affect the overall motion of the jumper.
3. Analyze the potential educational benefits of using interactive simulations like the "SHM Bungee with Damping HTML5 Applet Javascript" for learning about oscillatory motion. Consider how such tools can enhance understanding compared to traditional methods of instruction.
4. Based on the provided list of resources on the "Open Educational Resources / Open Source Physics @ Singapore" website, discuss the breadth and variety of physics and other science-related topics that can be explored through interactive simulations. What are the advantages of having such a diverse collection of open educational resources available?
5. Consider the role of the user-adjustable parameters in the "SHM Bungee with Damping HTML5 Applet Javascript" simulation (Initial Amplitude, Period, Damping Ratio). Design an experiment using this simulation to investigate the relationship between one of these parameters and a specific aspect of the resulting oscillatory motion. Describe your experimental design, including the variables you would manipulate and measure, and the expected outcomes.

Glossary of Key Terms:

• Simple Harmonic Motion (SHM): A periodic motion where the restoring force is directly proportional to the displacement from the equilibrium position and is directed towards the equilibrium position.
• Oscillation: A repetitive variation or movement back and forth around a central equilibrium position.
• Bungee Cord: An elastic rope that stretches considerably under tension, used especially for bungee jumping.
• Damping: The dissipation of energy in an oscillating system, resulting in a decrease in amplitude over time.
• Amplitude: The maximum extent of a vibration or oscillation, measured from the position of equilibrium.
• Period (T): The time required for one complete cycle of an oscillation.
• Damping Ratio (ζ): A dimensionless quantity that describes how oscillations decay in a system after a disturbance. It is a measure of the level of damping present.
• Interactive Simulation: A computer-based model that allows users to manipulate parameters and observe the resulting changes in a system's behavior in real-time.
• Open Educational Resources (OER): Teaching, learning, and research materials that are in the public domain or have been released under an open license that permits no-cost access, use, adaptation, and redistribution by others with no or limited restrictions.
• Javascript: A high-level, often just-in-time compiled programming language that conforms to the ECMAScript specification. It is commonly used in web development to add interactivity to HTML pages.
