Leong Tze Kwang; Lawrence Wee Loo Kang; Francisco Esquembre; Felix Garcia Clemente
1. Main Theme: Visualizing Simple Harmonic Motion with a Bungee Cord System
Both sources center around the concept of using a bungee cord system to illustrate and teach Simple Harmonic Motion (SHM). The primary focus is on providing interactive tools and resources to enhance understanding of the underlying physics principles.
2. Key Concepts and Ideas:
- Bungee Oscillation as an Example of SHM: The core idea is that the oscillatory motion of an object attached to a bungee cord, under certain conditions, can approximate SHM. This provides a tangible and relatable example compared to abstract theoretical descriptions.

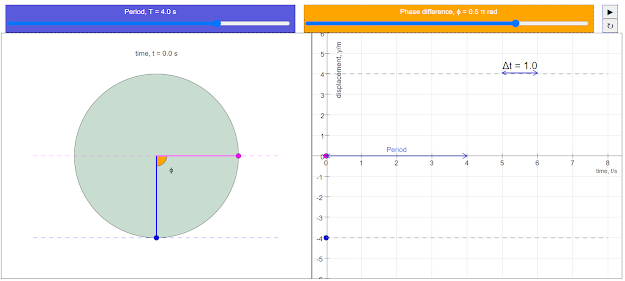

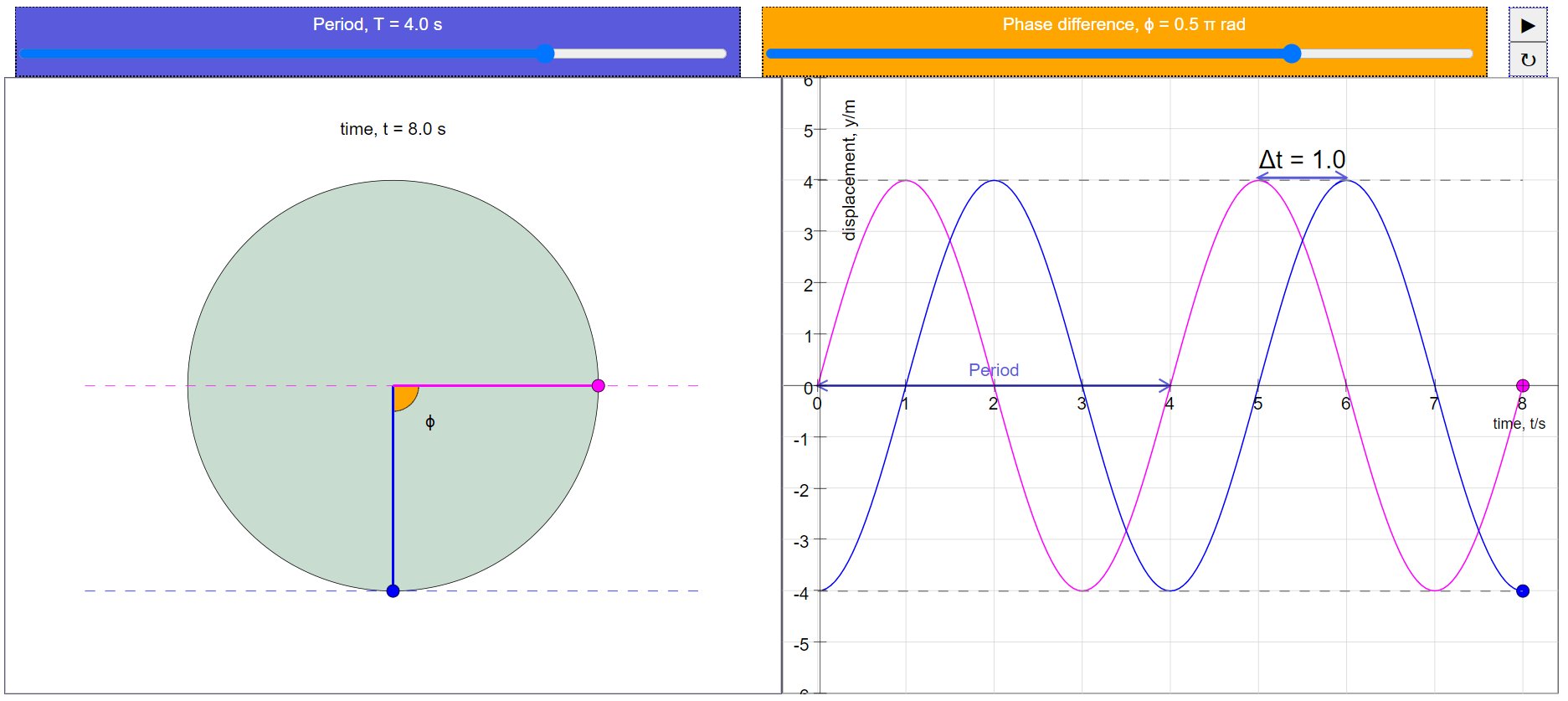

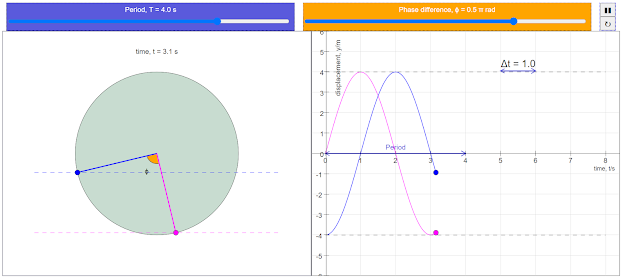

- Phase Circle Graph: A significant aspect highlighted is the use of a phase circle graph as a visualization tool. The applet specifically "displays the phase circle graph" and animates objects on a left panel as the simulation runs. This suggests a focus on connecting the linear oscillatory motion with its circular representation in phase space.
- Controllable Variables: The applet allows users to manipulate "the Period and the Phase Difference." This interactivity is crucial for students to explore how these parameters affect the SHM and its graphical representation.
- Educational Resource: The context of "Open Educational Resources / Open Source Physics @ Singapore" clearly positions these materials as tools for teaching and learning physics. The inclusion of "Sample Learning Goals" (though the text is "[texthttps://iwant2study.org/lookangejss/02_newtonianmechanics_8oscillations/ejss_model_shmbungee_phasecirclegraph/_shmbungee_phasecirclegraph_Simulation.xhtml).
- Source Website: Open Educational Resources / Open Source Physics @ Singapore (iwant2study.org).
4. Quotes from Original Sources:
- From "Bungee SHM": (No direct quotes provided in the excerpt, likely the document itself contains the detailed explanations and theory).
- From "SHM Bungee Phase Circle Graph HTML5 Applet Javascript - Open Educational Resources / Open Source Physics @ Singapore":"This simulation displays the phase circle graph." (From "For Teachers" - Initial Setup)
- "The controllable variables are the Period and the Phase Difference." (From "For Teachers" - Initial Setup)
- "<iframe width="100%" height="100%" src="https://iwant2study.org/lookangejss/02_newtonianmechanics_8oscillations/ejss_model_shmbungee_phasecirclegraph/_shmbungee_phasecirclegraph_Simulation.xhtml " frameborder="0">" (Embed code)
- "Leong Tze Kwang; Lawrence Wee Loo Kang; Francisco Esquembre; Felix Garcia Clemente" (Listed under "Credits")
- "Contents are licensed Creative Commons Attribution-Share Alike 4.0 Singapore License ." (Website footer)
5. Potential Implications and Use Cases:
- Enhanced Student Engagement: The interactive nature of the applet and the visual representation of the phase circle can make learning about SHM more engaging and intuitive for students.
- Deeper Conceptual Understanding: By manipulating parameters and observing the resulting changes in the motion and the phase circle, students can develop a deeper understanding of the relationship between these concepts.
- Classroom Activities and Demonstrations: Teachers can use the embedded applet in lectures, online learning platforms, or as part of interactive classroom activities.
- Independent Learning and Exploration: Students can access and use the simulation independently to explore SHM concepts at their own pace.
- Integration with Curriculum: The resource aligns with physics curricula covering oscillations and Simple Harmonic Motion.
6. Further Considerations:
- The excerpt from "Bungee SHM" lacks specific content. Accessing the full document would provide more detailed information on the theoretical framework, mathematical derivations, and pedagogical approaches associated with using the bungee example for teaching SHM.
- The "Sample Learning Goals" being marked as "[texthttps://weelookang.blogspot.com/2020/07/simple-harmonic-motion-shm-bungee-phase.html) could offer further insights into the development, intended use, and pedagogical rationale behind the applet.
Conclusion:
The provided sources highlight a valuable educational resource for teaching Simple Harmonic Motion using a bungee cord system as a relatable example. The "SHM Bungee Phase Circle Graph HTML5 Applet Javascript" offers an interactive and visually engaging tool for students to explore key concepts like period, phase difference, and the phase circle representation of SHM. The work of Leong Tze Kwang, Lawrence Wee Loo Kang, Francisco Esquembre, and Felix Garcia Clemente has resulted in an openly accessible simulation that can be readily integrated into various learning environments. Reviewing the full "Bungee SHM" document and related online materials would provide a more comprehensive understanding of this pedagogical approach.
Bungee SHM Study Guide
Review Questions
- What are the key physical principles underlying Simple Harmonic Motion (SHM)?
- How does the presence of a bungee cord modify the conditions for pure SHM in an oscillating system?
- What are the key variables that describe the motion of an object undergoing Bungee SHM, and how do they relate to each other?
- How can a phase circle graph be used to represent and analyze SHM? What information does it provide?
- According to the provided materials, what controllable variables are available in the "SHM Bungee Phase Circle Graph HTML5 Applet"?
- What is the purpose of visualizing Bungee SHM using an animation alongside a phase circle graph?
- Based on the title of one of the sources ("Bungee SHM"), what does the acronym SHM stand for in this context?
- Who are the authors credited for the "Bungee SHM" document and the "SHM Bungee Phase Circle Graph HTML5 Applet"?
- Under what type of license is the "Bungee SHM" document released? What are the implications of this license?
- What is the stated primary function of the "SHM Bungee Phase Circle Graph HTML5 Applet" as described in the "For Teachers" section?
Quiz
- Describe the fundamental characteristics of Simple Harmonic Motion. What distinguishes it from other types of oscillatory motion?
- Explain how the restoring force in a system undergoing SHM is mathematically related to the displacement from its equilibrium position. Provide the relevant equation.
- In the context of a bungee system, when would the motion approximate pure SHM, and when would the elastic properties of the bungee cord introduce deviations from ideal SHM?
- What does the radius of the phase circle represent in the context of SHM, and how is the angular velocity on the phase circle related to the frequency of the oscillation?
- Identify and briefly describe the two controllable variables mentioned for the "SHM Bungee Phase Circle Graph HTML5 Applet." How might changing these variables affect the simulation?
- Why is the phase difference a useful concept when analyzing oscillatory motion, particularly when comparing the motion of two related objects or aspects of a single object's motion?
- What are the potential benefits of using an interactive simulation, like the provided HTML5 applet, for learning about Bungee SHM compared to solely studying theoretical descriptions?
- Based on the credits, what software or environment was used to compile the "Bungee SHM" document? Why might this information be relevant?
- What does it mean for educational resources to be released under a Creative Commons Attribution-Share Alike license? How does this impact the use and distribution of the "Bungee SHM" material?
- Briefly explain how the animation of two objects alongside the phase circle graph in the applet could help users understand the relationship between the physical motion and its graphical representation.
Quiz Answer Key
- Simple Harmonic Motion (SHM) is a type of periodic motion where the restoring force on the moving object is directly proportional to the object's displacement magnitude and acts towards the equilibrium position. This results in oscillations with a constant period and sinusoidal displacement over time.
- The restoring force (F) in SHM is directly proportional to the displacement (x) and acts in the opposite direction, represented by the equation F = -kx, where k is the spring constant (or a similar proportionality constant). This linear relationship is a hallmark of SHM.
- The motion would approximate pure SHM when the bungee cord is taut and behaving like an ideal spring with a linear restoring force. Deviations would occur when the bungee cord slackens (providing no restoring force) or when its elastic properties are non-linear, especially at large extensions.
- The radius of the phase circle represents the amplitude of the SHM, which is the maximum displacement from the equilibrium position. The angular velocity on the phase circle (ω) is related to the frequency (f) of the oscillation by the equation ω = 2πf.
- The two controllable variables are the Period and the Phase Difference. Changing the period would affect the time it takes for one complete oscillation. Adjusting the phase difference would introduce a lead or lag in the oscillatory motion being represented, potentially between two objects or between displacement and velocity.
- Phase difference quantifies the temporal separation between two oscillations or between different aspects of the same oscillation (like displacement and velocity). It helps in understanding how the motions are synchronized or out of sync and can be visualized as the angular separation on a phase circle.
- Interactive simulations allow users to visualize abstract concepts like SHM and phase relationships in a dynamic way. By manipulating variables and observing the immediate effects on the animation and graph, learners can develop a more intuitive and deeper understanding compared to passive learning from text alone.
- The "Bungee SHM" document was compiled with EJS 6.1 BETA (Easy JavaScript Simulations). This is relevant because it indicates the software tool used to create the resource, suggesting its potential for interactivity or simulation capabilities, even if not explicitly embedded in the document itself.
- A Creative Commons Attribution-Share Alike 4.0 license allows others to copy, distribute, display, and perform the work and to make derivative works based on it, provided they give credit to the original authors and license their new creations under identical terms. This promotes open access and collaboration.
- By showing the physical motion of the objects alongside their corresponding positions on the phase circle, the simulation visually connects the abstract representation of SHM with the concrete movement of the oscillating system. This helps users understand how the angular position and motion on the phase circle relate to the displacement and velocity of the physical objects over time.
Essay Format Questions
- Discuss the conditions under which a bungee cord system undergoing oscillations can be accurately modeled as Simple Harmonic Motion. What factors would cause deviations from this ideal model, and how might these deviations manifest in the motion?
- Explain the utility of the phase circle graph in analyzing Simple Harmonic Motion. How do the key parameters of SHM (amplitude, frequency, and phase) relate to the features of a phase circle diagram? Consider how the "SHM Bungee Phase Circle Graph HTML5 Applet" leverages this representation.
- Compare and contrast the information gained from observing the animation of a Bungee SHM system with the information obtained from its corresponding phase circle graph. How do these two representations complement each other in enhancing understanding of the motion?
- Based on the provided excerpts, analyze the potential pedagogical benefits of using interactive simulations like the "SHM Bungee Phase Circle Graph HTML5 Applet" for teaching and learning about oscillatory motion. Consider aspects such as visualization, exploration of variables, and engagement.
- Explore the significance of open educational resources and open-source physics initiatives, as exemplified by the provided materials. How do licenses like Creative Commons Attribution-Share Alike contribute to the accessibility and collaborative development of educational content in physics?
Glossary of Key Terms
- Simple Harmonic Motion (SHM): A type of periodic motion where the restoring force is directly proportional to the displacement and acts in the direction opposite to that of displacement from the equilibrium position. This results in sinusoidal oscillations.
- Oscillation: A repetitive variation, typically in time, of some measure about a central value or between two or more different states.
- Period (T): The time taken for one complete cycle of an oscillation. It is usually measured in seconds.
- Frequency (f): The number of complete cycles of an oscillation that occur per unit time. It is typically measured in Hertz (Hz), where 1 Hz = 1 cycle per second.
- Amplitude (A): The maximum displacement or distance moved by a point on a vibrating body or wave measured from its equilibrium position.
- Phase Difference (φ): The difference in phase between two oscillations or between two points on the same oscillation. It describes how much one oscillation leads or lags another in time and is often expressed in radians or degrees.
- Phase Circle Graph: A graphical representation of SHM where the state of the oscillating system (position and velocity) is represented by a vector rotating with a constant angular velocity. The projection of this vector onto the x-axis (or y-axis) represents the displacement as a function of time.
- Restoring Force: A force that acts to bring a system back to its equilibrium position. In SHM, this force is proportional to the displacement.
- Equilibrium Position: The central or neutral position of an oscillating object where the net force acting on it is zero.
- HTML5 Applet: A small application written in HTML5, often using JavaScript, that can be embedded in a webpage to provide interactive content, such as simulations.
- Open Educational Resources (OER): Teaching, learning, and research materials in any medium – digital or otherwise – that reside in the public domain or have been released under an open license that permits no-cost access, use, adaptation, and redistribution by others with no or limited restrictions.
- Open Source Physics (OSP): An initiative that promotes the use and development of open-source computational tools and resources for physics education.
- Creative Commons License: A type of public copyright license that enables the free distribution of an otherwise copyrighted work. Different Creative Commons licenses offer different levels of permission and restriction. Attribution-Share Alike requires users to give credit to the creator and to distribute any derivative works under the same license.
Sample Learning Goals
[text]
For Teachers
Research
[text]
Video
[text]
Version:
Other Resources
[text]
Frequently Asked Questions: Bungee Jumping and Simple Harmonic Motion
1. What is the primary focus of the "Bungee SHM" resource and the associated applet?
The primary focus is to explore the physics of a bungee jump, particularly in relation to Simple Harmonic Motion (SHM). The resources provide simulations and tools to visualize and understand how the motion of a bungee jumper can exhibit characteristics of SHM under certain conditions.
2. How does a bungee jump relate to Simple Harmonic Motion (SHM)?
While a full bungee jump involves more complex physics, certain phases of the motion, particularly after the initial freefall and when the bungee cord starts to stretch and recoil, can approximate SHM. This happens when the restoring force (due to the stretched cord) is proportional to the displacement from the equilibrium position. The applet likely allows users to adjust parameters to observe when and how closely the bungee motion resembles ideal SHM.
3. What can users interact with in the "SHM Bungee Phase Circle Graph HTML5 Applet"?
Users can interact with controllable variables such as the Period and the Phase Difference of the simulated bungee oscillation. The applet displays a phase circle graph and animates objects to visually represent the motion. This allows users to observe how changes in these variables affect the oscillatory behavior and its representation on the phase circle.
4. What is the purpose of the phase circle graph displayed in the applet?
The phase circle graph is a tool used to represent Simple Harmonic Motion. It provides a visual way to understand the relationship between the displacement, velocity, and acceleration of an oscillating object over time. The position of a point on the circle corresponds to the state of the oscillation at a given moment, with its projection onto the horizontal axis representing the displacement and its angular velocity related to the frequency of oscillation.
5. Who are the creators and under what license are these resources released?
The "Bungee SHM" resource and the "SHM Bungee Phase Circle Graph HTML5 Applet" were created by Leong Tze Kwang, Lawrence Wee Loo Kang, Francisco Esquembre, and Felix Garcia Clemente. The textual content is released under a Creative Commons Attribution-Share Alike 4.0 Singapore License. For commercial use of the underlying EasyJavaScriptSimulations Library, separate licensing terms apply and inquiries should be directed to fem@um.es.
6. What are some potential learning goals associated with using these resources?
Based on the "Sample Learning Goals" and the applet's features, potential learning goals include understanding the concept of Simple Harmonic Motion, visualizing oscillatory motion using phase circle graphs, exploring the relationship between period and phase difference in oscillations, and observing how a real-world system like a bungee cord can approximate SHM.
7. Are there any related resources or versions mentioned that could provide further information?
Yes, Version 1 of the "SHM Bungee Phase Circle Graph HTML5 Applet" is linked at https://weelookang.blogspot.com/2020/07/simple-harmonic-motion-shm-bungee-phase.html. This blog post likely contains further explanation, context, or activities related to the simulation.
8. What tools and frameworks are utilized in the development of the applet?
The applet is an HTML5 application written in Javascript and likely utilizes the Easy JavaScript Simulations (EJS) Toolkit, as mentioned in the credits of the "Bungee SHM" resource and the general information about Open Source Physics @ Singapore. EJS is a tool designed for creating interactive physics simulations.
