weelookang@gmail.com; Francisco Esquembre; Felix J. Garcia Clemente; Siti; Coco

Authors/Contributors (Common to both sources): weelookang@gmail.com; Francisco Esquembre; Felix J. Garcia Clemente; Siti; Coco.

Main Themes:

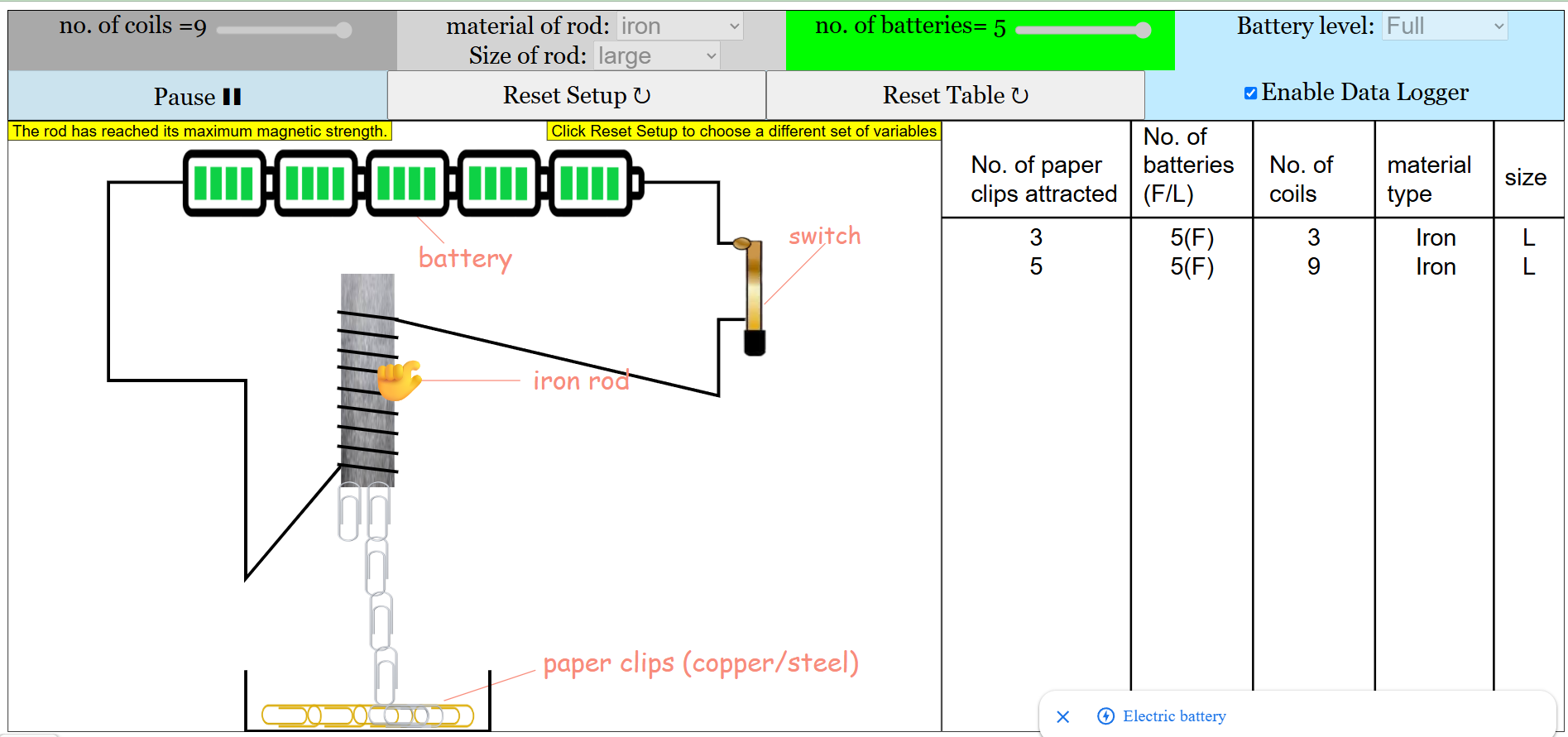

Both sources center on a JavaScript HTML5 Applet Simulation Model designed to explore the factors affecting the strength of an electromagnet. The core theme is to provide an interactive and visual tool for understanding the relationship between various parameters and the resulting magnetic force. This aligns with the goals of Open Educational Resources (OER) and Open Source Physics (OSP) to offer accessible and effective learning tools.

Key Ideas and Facts:

  • Simulation Focus: The primary focus of both sources is a simulation that allows users to manipulate variables and observe the impact on the strength of an electromagnet, measured by its ability to pick up paperclips. The second source explicitly states it's a "'Strength of an Electromagnet on paper clips JavaScript HTML5 Applet Simulation Model'."
  • Manipulable Variables: The first source explicitly lists the variables that can be controlled within such a simulation:
  • Number of coils
  • Material of the rod (iron or plastic)
  • Size of the rod (large or small)
  • Number of batteries
  • Battery strength (full or low)
  • Learning Objectives: The second source highlights a key learning goal: "Increasing the number of batteries in an electromagnet setup may initially enhance its magnetic field strength, allowing it to lift more paperclips. However, beyond a certain point, the benefits diminish due to factors like saturation. The magnetic material reaches a limit where it can't be magnetized further, and additional batteries won't significantly increase the lifting capacity." This emphasizes the non-linear relationship and the concept of magnetic saturation.
  • Educational Use: The inclusion of "For Teachers" section in the second source indicates its intended use in educational settings. It provides direct links for initial setup and manipulation of variables within the simulation, such as:
  • Changing the number of coils
  • Increasing the number of batteries
  • Using a plastic rod (to demonstrate the necessity of a ferromagnetic core)
  • Simulating low battery level
  • Using a small iron rod
  • Teacher Feedback: The second source includes a positive testimonial from a teacher who used the simulation for student experiments: "I used the virtual electromagnet experiment you created for SLS. [The simulation is]very good. I got the students to do the 2 experiments for changing the number of coils and number of batteries. I realized that they changed 2 variables [and] anyhow did [it]. Today get them to redo and snip it to submit it to me for monitoring.... so much better. I like this [this is] because [it is usually] very difficult to do a real experiment to see the trend. Thanks so much!" This highlights the value of the simulation in overcoming the practical difficulties of conducting real-world electromagnet experiments and visualizing trends.
  • Accessibility and Embedding: The second source provides an embed code (<iframe width="100%" height="100%" src="/ospsg/...") allowing educators to easily integrate the simulation into their webpages or learning management systems.
  • Credits and Licensing: Both sources provide clear authorship and copyright information. The second source explicitly states that the "Contents are licensed Creative Commons Attribution-Share Alike 4.0 Singapore License," promoting open sharing and adaptation for non-commercial purposes. It also provides specific licensing information for commercial use of the EasyJavaScriptSimulations Library.
  • Related Resources: The second source includes links to video demonstrations of the simulation and a vast list of other interactive physics and science simulations available through the Open Educational Resources / Open Source Physics @ Singapore platform. This context positions the electromagnet simulation within a broader ecosystem of educational tools.

Quotes:

  • From "Strength of an Electromagnet on paper clips JavaScript HTML5 Applet Simulation Model":
  • "Strength of an Electromagnet on paper clips JavaScript HTML5 Applet Simulation Model"
  • "Increasing the number of batteries in an electromagnet setup may initially enhance its magnetic field strength, allowing it to lift more paperclips. However, beyond a certain point, the benefits diminish due to factors like saturation."
  • "I used the virtual electromagnet experiment you created for SLS. [The simulation is]very good... I like this [this is] because [it is usually] very difficult to do a real experiment to see the trend."
  • "Contents are licensed Creative Commons Attribution-Share Alike 4.0 Singapore License."
  • From "Strength of an ElectroMagnet with variables number of coils, material of rod type, iron or plastic, size of rod large or small, number of batteries, battery strength full or low":
  • (Implicitly, the entire title lists the key manipulable variables in the simulation.)

Conclusion:

These sources describe a valuable interactive simulation designed to teach the principles affecting the strength of an electromagnet. By allowing users to manipulate key variables such as the number of coils, core material and size, battery strength, and number of batteries, the simulation provides a hands-on (virtual) experience for understanding electromagnetism. The positive teacher feedback underscores its effectiveness as an educational tool, particularly in visualizing abstract concepts and overcoming limitations of physical experiments. The open licensing and embeddability further enhance its accessibility and potential impact in educational settings. The simulation is part of a larger collection of OER and OSP resources, indicating a commitment to providing a wide range of interactive learning materials.





Electromagnet Study Guide

Quiz

  1. What are three variables mentioned in the first source that can affect the strength of an electromagnet?
  2. According to the second source, how does increasing the number of batteries initially affect the magnetic field strength of an electromagnet?
  3. What is meant by "saturation" in the context of an electromagnet's magnetic material, as described in the second source?
  4. Name the individuals credited in both sources for their contributions to the content.
  5. What type of learning activity was a teacher able to conduct using the virtual electromagnet experiment, according to the feedback in the second source?
  6. What is the purpose of the JavaScript HTML5 Applet Simulation Model mentioned in the title of the second source?
  7. Besides the number of batteries, what other variable did the teacher in the feedback want their students to investigate concerning the electromagnet?
  8. The second source mentions embedding the model in a webpage. What is the code provided for this purpose?
  9. What are "Open Educational Resources" and where is this particular resource based, according to the second source?
  10. What are two potential factors, besides battery number, that the second source suggests play a role in determining the maximum number of paperclips an electromagnet can lift?

Quiz Answer Key

  1. Three variables mentioned are the number of coils, the material of the rod (iron or plastic), and the size of the rod (large or small). Other mentioned variables include the number of batteries and the battery strength (full or low).
  2. Increasing the number of batteries in an electromagnet setup may initially enhance its magnetic field strength, allowing it to lift more paperclips, as stated in the second source.
  3. Saturation refers to the limit where the magnetic material of an electromagnet can no longer be magnetized further, meaning that adding more batteries will not significantly increase its lifting capacity.
  4. The individuals credited in both sources are weelookang@gmail.com, Francisco Esquembre, Felix J. Garcia Clemente, Siti, and Coco.
  5. A teacher was able to conduct virtual electromagnet experiments where students could change variables like the number of coils and batteries to observe the effects on magnetic strength.
  6. The JavaScript HTML5 Applet Simulation Model is designed to simulate the strength of an electromagnet and its ability to attract paperclips, allowing users to explore the relationship between different variables and magnetic force.
  7. Besides the number of batteries, the teacher wanted the students to investigate changing the number of coils and to redo their experiments while changing only one variable at a time for better monitoring of the trend.
  8. The code provided to embed the model in a webpage is an <iframe> tag with a specified width, height, source URL, and frameborder attribute.
  9. Open Educational Resources are freely available teaching and learning materials. This particular resource is based in Singapore, as indicated by "Open Educational Resources / Open Source Physics @ Singapore".
  10. Two potential factors mentioned are the design and efficiency of the electromagnet, which can influence its maximum lifting capacity in addition to the number of batteries.

Essay Format Questions

  1. Discuss how the variables mentioned in the sources (number of coils, rod material and size, number and strength of batteries) individually and collectively influence the strength of an electromagnet. Based on the provided information, which variables appear to have the most significant impact?
  2. The second source highlights the concept of "saturation" in electromagnets. Explain this phenomenon in detail and discuss its implications for designing and using electromagnets effectively. How might the point of saturation be affected by other variables?
  3. Analyze the pedagogical value of using virtual simulations, like the one described in the second source, for teaching concepts related to electromagnetism. What are the advantages and potential limitations of such tools compared to traditional hands-on experiments? Support your answer with evidence from the provided text.
  4. Based on the teacher's feedback in the second source, discuss the common challenges students might face when conducting scientific investigations involving multiple variables. How can structured virtual experiments help address these challenges and promote better scientific understanding?
  5. Synthesize the information from both sources to create a comprehensive overview of the factors that determine the strength of an electromagnet. Consider the practical implications of these factors in real-world applications of electromagnets.

Glossary of Key Terms

  • Electromagnet: A type of magnet in which the magnetic field is produced by an electric current. It typically consists of a coil of wire wrapped around a ferromagnetic core.
  • Magnetic Field Strength: A measure of the intensity of a magnetic field, indicating the force it can exert on magnetic materials or moving electric charges.
  • Coils (Number of): The loops of wire in an electromagnet. Increasing the number of coils generally increases the magnetic field strength, assuming the current remains constant.
  • Rod Material (Iron/Plastic): The material of the core around which the wire is coiled. Iron is a ferromagnetic material that significantly enhances the magnetic field, while plastic is non-magnetic and does not provide this enhancement.
  • Rod Size (Large/Small): The physical dimensions of the ferromagnetic core. The size can affect the strength and distribution of the magnetic field.
  • Batteries (Number of): The power source for the electric current in the electromagnet. Increasing the number of batteries (in series) increases the voltage and thus the potential current, leading to a stronger magnetic field (up to a point).
  • Battery Strength (Full/Low): The amount of electrical potential energy stored in the batteries. A full battery provides a higher current than a low battery, resulting in a stronger magnetic field.
  • Saturation (Magnetic): The state where the ferromagnetic core of an electromagnet has reached its maximum magnetization. Beyond this point, increasing the current or adding more coils will not significantly increase the magnetic field strength.
  • JavaScript HTML5 Applet Simulation Model: An interactive computer program created using JavaScript and HTML5 that simulates a real-world phenomenon (in this case, electromagnetism) allowing users to manipulate variables and observe the outcomes.
  • Open Educational Resources (OER): Freely accessible and openly licensed teaching, learning, and research materials that can be used, adapted, and shared without cost.
  • Ferromagnetic: A type of material (like iron) that exhibits strong magnetic effects and can be easily magnetized.
  • Virtual Lab/Experiment: A computer-based simulation of a scientific experiment that allows users to conduct investigations and collect data in a virtual environment

Sample Learning Goals

Increasing the number of batteries in an electromagnet setup may initially enhance its magnetic field strength, allowing it to lift more paperclips. However, beyond a certain point, the benefits diminish due to factors like saturation. The magnetic material reaches a limit where it can't be magnetized further, and additional batteries won't significantly increase the lifting capacity. Other factors, such as the design and efficiency of the electromagnet, also play a role in determining the maximum number of paperclips it can lift.

For Teachers

Initial Setup
https://sg.iwant2study.org/ospsg/index.php/973
Direct link

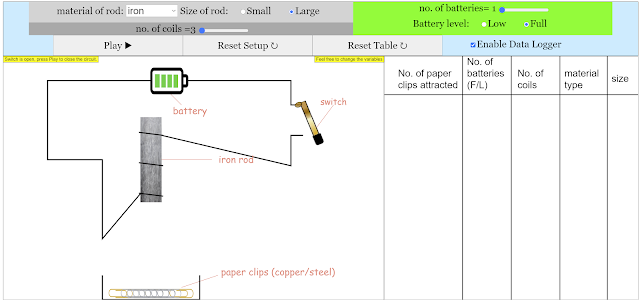

Enable data logger
https://sg.iwant2study.org/ospsg/index.php/973
Direct link

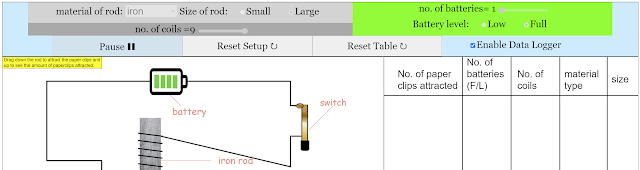

Change the number of coils and close the switch
https://sg.iwant2study.org/ospsg/index.php/973
Direct link

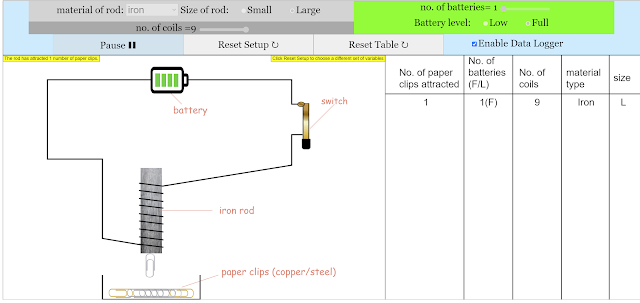

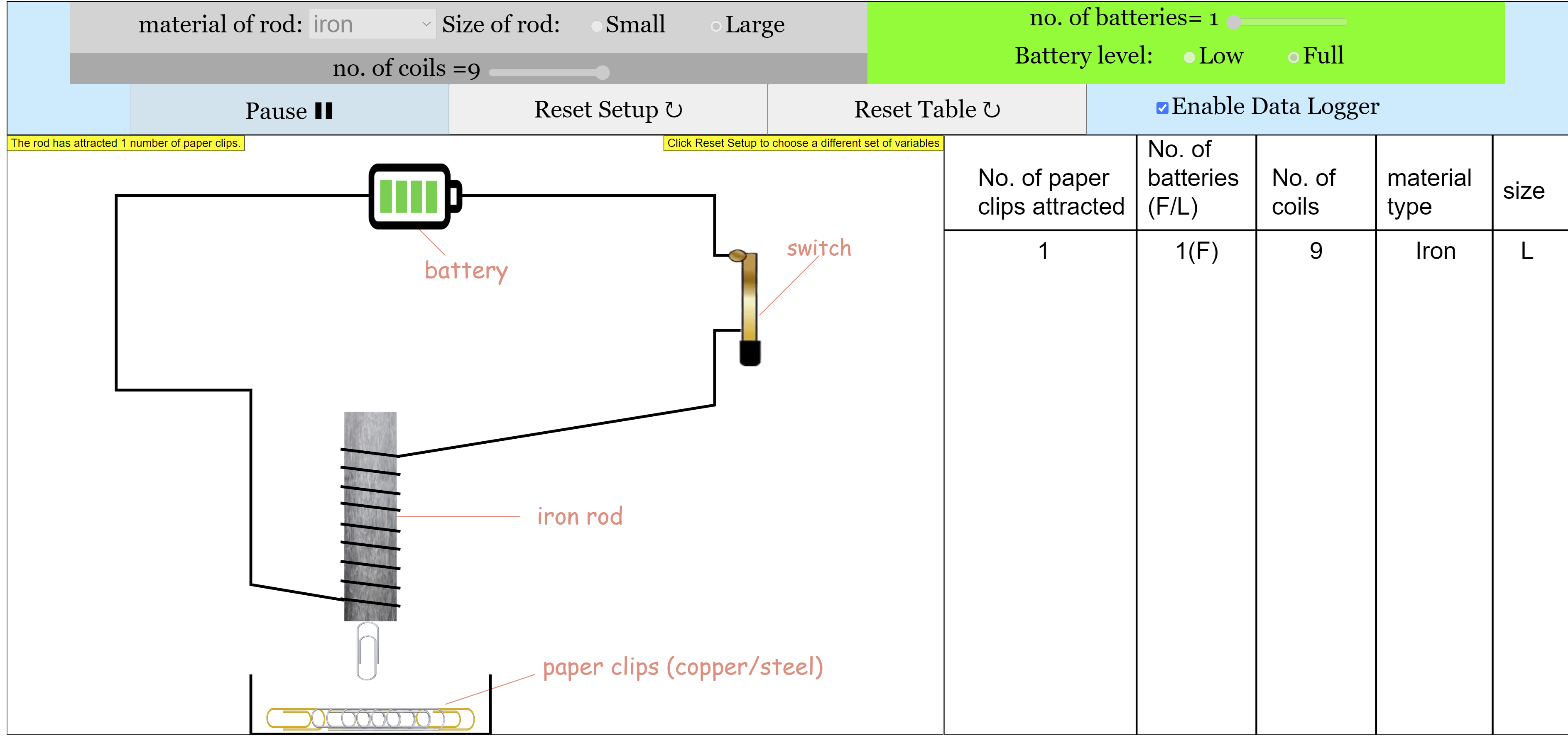

Drag the rod to attract steel paper clips and obtain data
https://sg.iwant2study.org/ospsg/index.php/973
Direct link

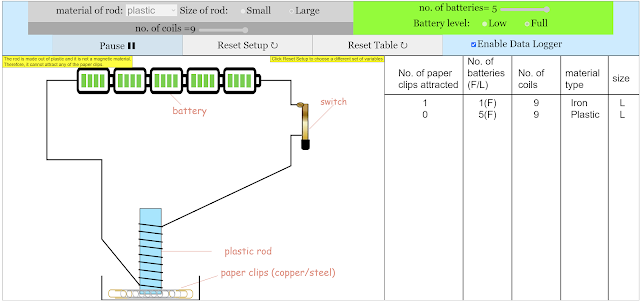

Plastic rod
https://sg.iwant2study.org/ospsg/index.php/973
Direct link

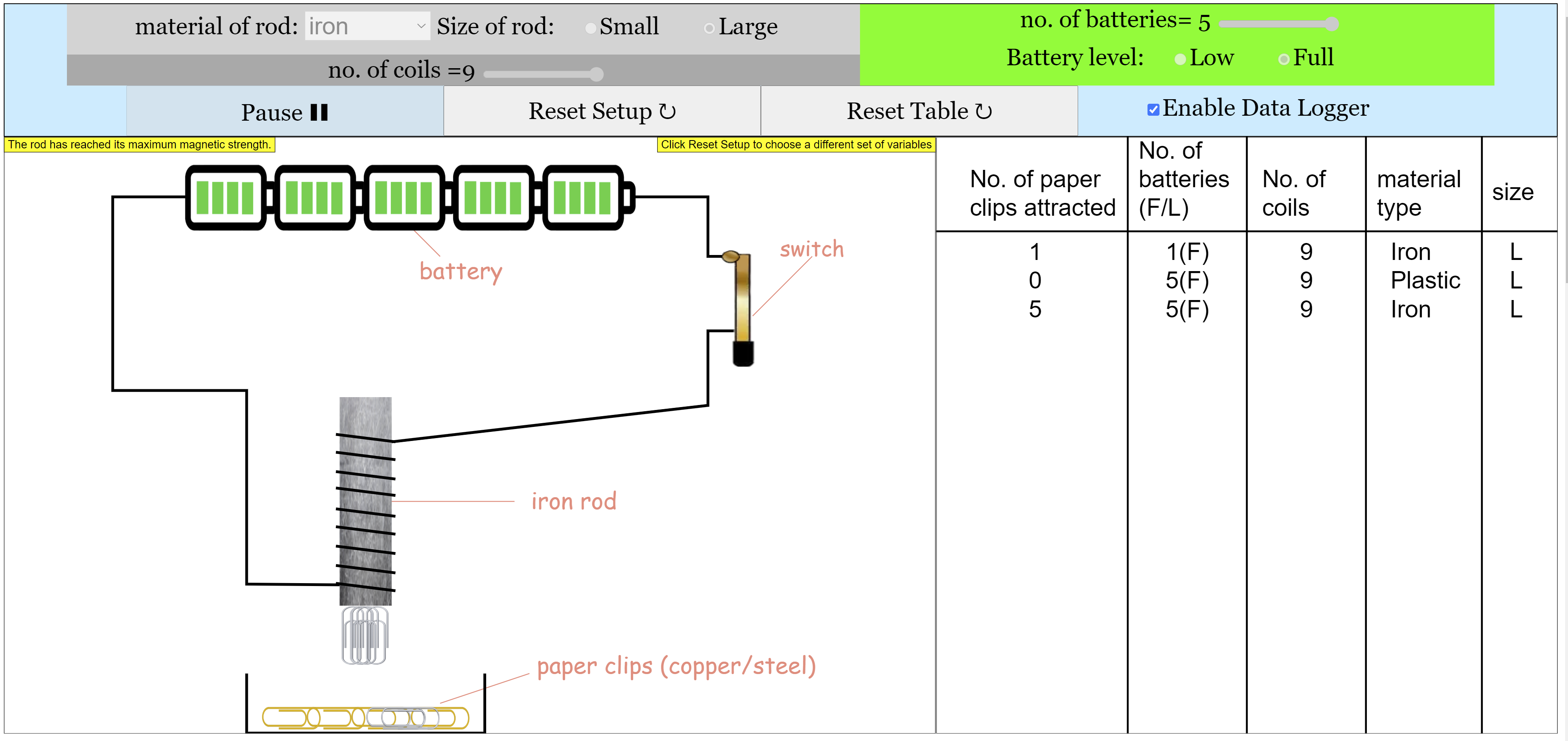

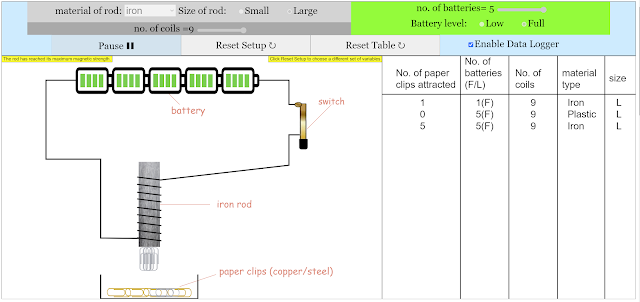

Increase the number of batteries
https://sg.iwant2study.org/ospsg/index.php/973
Direct link

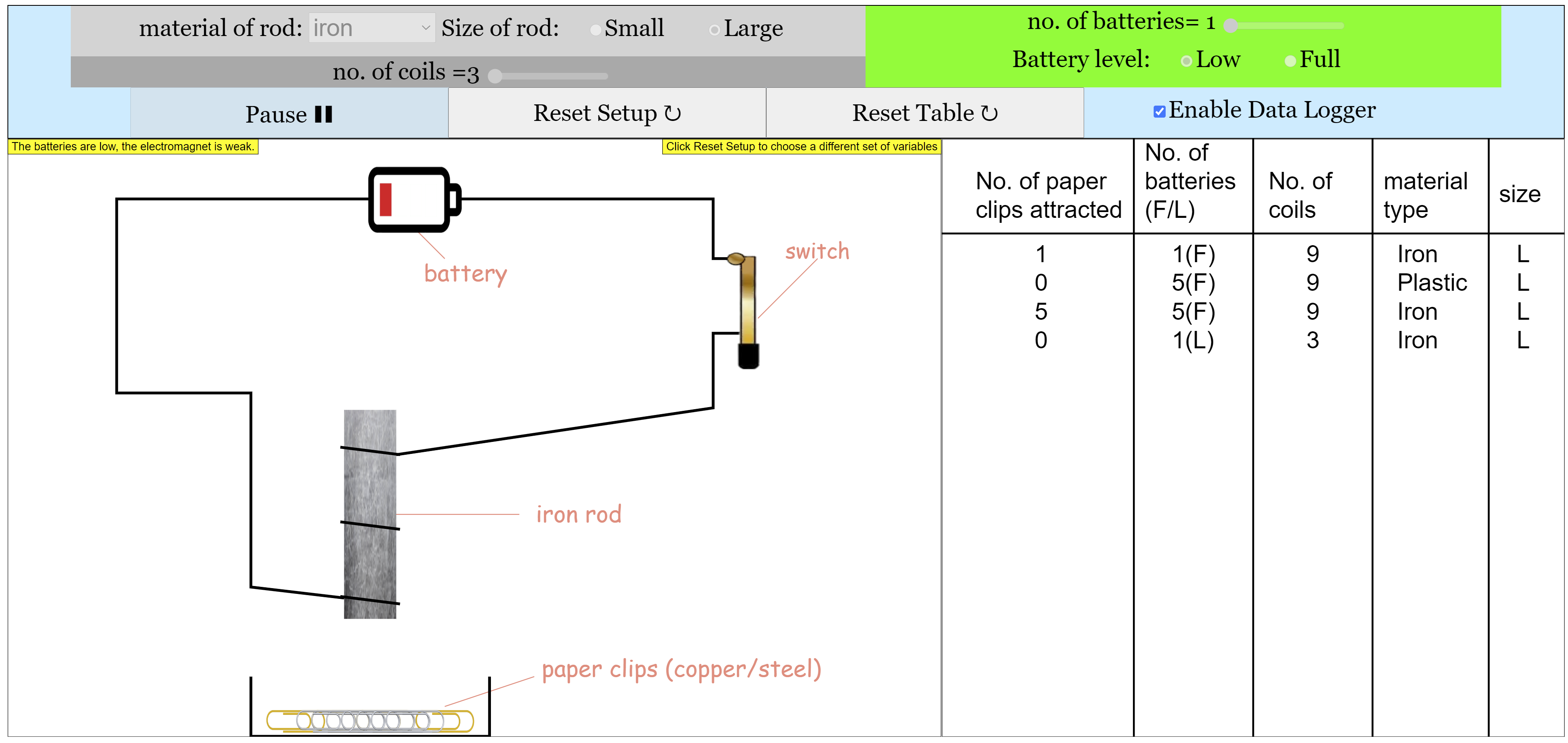

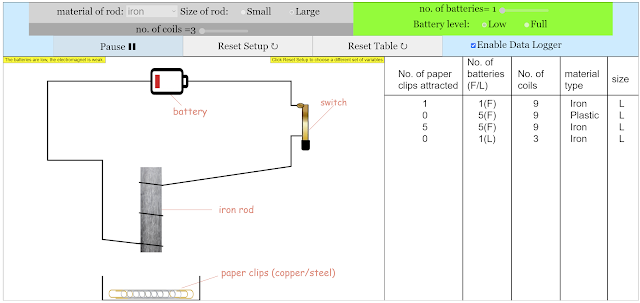

Low battery level
https://sg.iwant2study.org/ospsg/index.php/973
Direct link

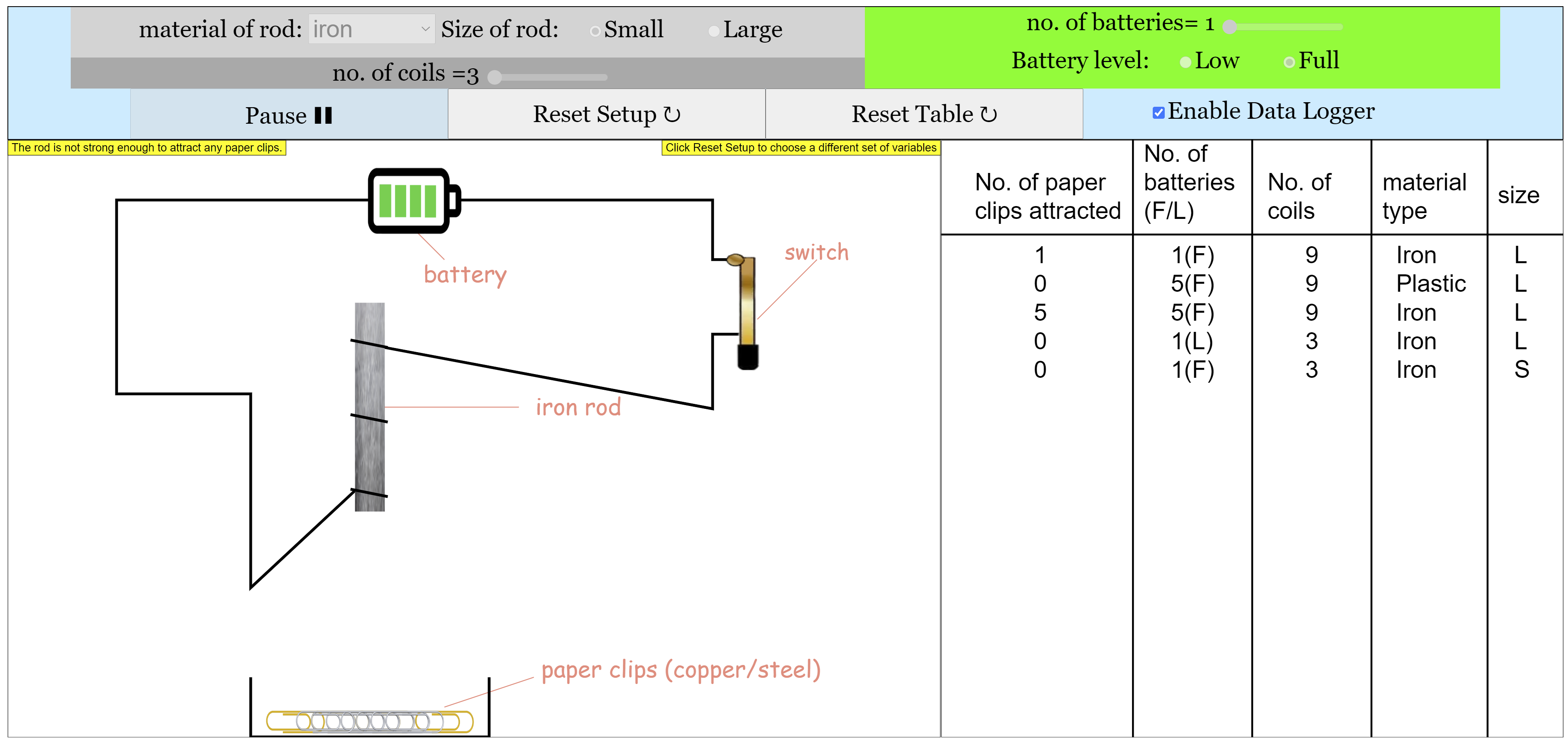

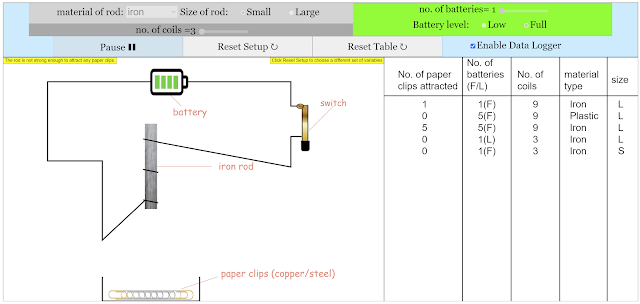

Small iron rod
https://sg.iwant2study.org/ospsg/index.php/973
Direct link

Research

From Teacher: 20210801

I used the virtual electromagnet experiment you created for SLS. [The simulation is]very good. I got the students to do the 2 experiments for changing the number of coils and number of batteries. I realized that they changed 2 variables [and] anyhow did [it]. Today  get them to redo and snip it to submit it to me for monitoring.... so much better. I like this [this is] because [it is usually] very difficult to do a real experiment to see the trend. Thanks so much! Attached a sample of students' work.

https://sg.iwant2study.org/ospsg/index.php/973-emstrengthpaperclips
direct link

Video

Strength of an Electromagnet with paperclips virtual lab for primary school science

 Version:

  1. https://weelookang.blogspot.com/2020/07/strength-of-electromagnet-on-paper-clips.html
  2. https://weelookang.blogspot.com/2021/08/thank-you-from-school-teacher-after.html

Other Resources

[text]

Frequently Asked Questions: Strength of an Electromagnet

1. What are the primary factors that influence the strength of an electromagnet, as suggested by these resources?

The strength of an electromagnet is primarily influenced by several factors: the number of coils of wire wrapped around the core, the material of the core (iron significantly enhances the strength compared to plastic), the size of the core (larger may allow for more coils and potentially a stronger field), the number of batteries used to supply current, and the strength or voltage of those batteries (full batteries provide more current than low ones).

2. How does increasing the number of coils affect an electromagnet's strength?

Increasing the number of coils around the core generally leads to a stronger magnetic field. Each coil contributes to the overall magnetic field strength. More coils mean a higher concentration of magnetic field lines, resulting in a more powerful electromagnet.

3. What role does the core material play in determining the strength of an electromagnet? Why is iron typically preferred over plastic?

The core material is crucial for electromagnet strength. Iron, being a ferromagnetic material, greatly amplifies the magnetic field produced by the current in the coils. It becomes easily magnetized and helps to concentrate the magnetic field lines. Plastic, on the other hand, is non-magnetic and offers virtually no enhancement to the magnetic field strength. Therefore, an iron core is essential for creating a strong electromagnet.

4. How does the number and strength of batteries impact the strength of an electromagnet? Is there a limit to this effect?

Increasing the number of batteries (in series) or using batteries with higher voltage increases the current flowing through the coils. A larger current produces a stronger magnetic field. However, the provided resources indicate that there is a limit to this effect. Beyond a certain point, the magnetic material of the core can become saturated. Saturation means the core has reached its maximum magnetization capacity, and further increases in current (by adding more or stronger batteries) will not significantly increase the magnetic field strength or the lifting capacity of the electromagnet.

5. What is magnetic saturation, and how does it limit the strength of an electromagnet?

Magnetic saturation is a phenomenon where the ferromagnetic core of an electromagnet reaches its maximum level of magnetization. Once saturated, the core cannot become any more strongly magnetic, regardless of further increases in the current flowing through the coils. This limits the ultimate strength achievable by simply increasing the current or the number/strength of batteries.

6. Can a virtual simulation be an effective tool for learning about electromagnetism? What are some benefits highlighted in the text?

Yes, the resources strongly suggest that virtual simulations are highly effective tools for learning about electromagnetism. A teacher's feedback mentions using a virtual electromagnet experiment for students, noting it was "very good" and made it easier to observe trends by changing variables, something difficult to do with real experiments. Simulations allow students to safely and easily manipulate variables like the number of coils and batteries and instantly see the effect on the electromagnet's strength (e.g., its ability to lift paperclips). This facilitates better understanding and visualization of the underlying principles.

7. What evidence is there that the described simulations are used in educational settings?

The text provides several pieces of evidence:

  • A "For Teachers" section with links to initial setups and manipulations within the simulation.
  • Direct feedback from a teacher who used the virtual electromagnet experiment with students for a lesson, praising its effectiveness for observing trends.
  • Mentions of using the simulations for the Student Learning Space (SLS), a platform likely used in Singaporean schools.
  • Inclusion of the simulation under "Open Educational Resources / Open Source Physics @ Singapore," indicating its intended use for education.

8. Besides the factors explicitly mentioned (coils, core, batteries), are there other potential design or efficiency aspects that could influence the maximum strength of an electromagnet?

While not detailed extensively, the "Sample Learning Goals" section hints that "other factors, such as the design and efficiency of the electromagnet, also play a role in determining the maximum number of paperclips it can lift." This suggests that the physical arrangement of the coils, the shape and purity of the core material, the gauge and type of wire used in the coils (affecting resistance and current flow), and the overall construction of the electromagnet can all contribute to its efficiency in converting electrical energy into magnetic field strength and its ultimate lifting capacity.
