Intro Page

Useful Variables:

- Coordinates of Paperclip, xPaperclip, yPaperclip, relative position south

- Coordinates of Sheet, xSheet, ySheet, relative position west

- Size of Sheet, xSizeS, ySizeS

Information:

- The string attached to the paperclip is already following the paperclip's coordinates

- Flipping of the magnet does nothing as it doesnt change anything in the actual experiment, just giving a variety

For Debugging:

TRmsg: "xSheet= "+_view._format(xSheet,"0.0")+"\nblockbymetal="+blockbymetal

TLmsg: "Type of Sheet [Iron, Wood, Plastic, Ceramic] = " + sheetType

BRmsg: "distance="+distance+"\nattractiveA="+attractiveA+"\nangle="+angle+"\nomega="+omega+"\ndx="+dx+"\ndy="+dy+"\ndistance2="+distance2

BLmsg: "thetao="+thetao+"\ntheta="+theta+"\nxPapercliptip="+xPapercliptip+"\nyPapercliptip="+yPapercliptip



Translations

Code Language Translator Run

Credits

weelookang@gmail.com; Francisco Esquembre; Felix J. Garcia Clemente; Siti

Executive Summary:

These sources describe and provide access to an interactive simulation designed to illustrate the principle that magnetism can pass through non-magnetic materials. The "Hanging Magnet" applet allows users to experiment with placing different types of sheets (Iron, Wood, Plastic, Ceramic) between a magnet and a hanging paperclip. By observing the paperclip's behavior, users can understand how various materials affect the magnetic force. The accompanying webpage offers valuable context, learning goals, technical details for debugging, and links to related resources.

Main Themes and Important Ideas/Facts:

1. Demonstration of Magnetism Passing Through Non-Magnetic Materials:

  • The core purpose of the simulation is to visually demonstrate that magnetic forces can act across certain materials.
  • The webpage explicitly states this: "Riveting and Rotating Paperclip and Magnet to demonstrate magnetism passes through non-magnetic materials HTML5 Applet Javascript".
  • The simulation allows users to insert different types of "sheets" between the magnet and the paperclip to observe the effect on the magnetic attraction.

2. Interactive Learning and Experimentation:

  • The simulation provides a hands-on approach to learning about magnetism. Users can actively change variables and observe the resulting effects.
  • The "For Teachers" section on the webpage highlights this: "This simulation allows the user to experiment with a sheet of different material to place it in between a magnet and a paperclip."
  • Users can specifically "change the material of the sheet."

3. Material-Dependent Interaction with Magnetic Fields:

  • The simulation allows for testing different materials (Iron, Wood, Plastic, Ceramic) to see how they interact with the magnetic field.
  • The "TLmsg" (Top Left Message for Debugging) in the simulation indicates the available options: "'Type of Sheet [Iron, Wood, Plastic, Ceramichttps://youtu.be/8TR4Qr9DxfQ?t=164" target="_blank" rel="noopener noreferrer" style="box-sizing: border-box; color: rgb(0, 102, 204); text-decoration: underline;">https://youtu.be/8TR4Qr9DxfQ?t=164), which offers a real-world demonstration related to the simulation.
  • It also lists numerous "Other Resources," including simulations related to bar magnets, electromagnets, and other physics concepts, highlighting a broader collection of interactive learning tools. One particularly relevant link is: "6. Need Riveting and Rotating Paperclip and Magnet to demonstrate magnetism passes through non-magnetic materials," which likely points to another version or description of the same simulation.

Quotes from Original Sources:

  • Title of the webpage: "Riveting and Rotating Paperclip and Magnet to demonstrate magnetism passes through non-magnetic materials HTML5 Applet Javascript"
  • Description of the simulation's purpose: "This simulation allows the user to experiment with a sheet of different material to place it in between a magnet and a paperclip." (From "For Teachers")
  • Available sheet materials: "Type of Sheet [Iron, Wood, Plastic, Ceramic] = " + sheetType" (From "TLmsg" for Debugging)
  • Observation with an Iron sheet: "The view when an Iron sheet is placed in between the magnet and the paperclip. The paperclip will rotate downwards." (From "Initial Setup")
  • Licensing information: "Contents are licensed Creative Commons Attribution-Share Alike 4.0 Singapore License ."

Conclusion:

The "Hanging Magnet" simulation, accessible through the provided webpage, is a valuable interactive tool for teaching and learning about the ability of magnetism to pass through non-magnetic materials. By allowing users to manipulate the type of material placed between a magnet and a paperclip, it offers a visual and engaging way to understand this fundamental concept. The accompanying information provides context, technical details, and connections to other relevant resources, making it a comprehensive educational tool within the Open Educational Resources framework. The observation regarding the iron sheet suggests that the simulation also allows for exploring the interaction of magnetic fields with ferromagnetic materials.





Hanging Magnet Simulation Study Guide

Key Concepts

  • Magnetism: The force exerted by magnets when they attract or repel each other. This force is due to the movement of electric charges.
  • Magnetic Field: The area around a magnet where its magnetic force is exerted. Magnetic field lines are used to visualize this field.
  • Magnetic Materials: Materials that are strongly attracted to magnets, such as iron. These materials can become temporary or permanent magnets themselves.
  • Non-Magnetic Materials: Materials that are not attracted to magnets, such as wood, plastic, and ceramic.
  • Interaction at a Distance: The ability of magnets to exert force on other objects without direct physical contact through their magnetic field.
  • Obstruction of Magnetic Force: Investigating whether non-magnetic materials placed between a magnet and a magnetic object can block or alter the magnetic force.
  • Simulation: A computer-based model that allows users to interact with a system (in this case, a magnet and a paperclip with an intervening sheet) to observe and understand its behavior.
  • Variables: Quantities that can be changed or measured within the simulation, such as the material of the sheet placed between the magnet and the paperclip.
  • Observation: The act of noting and recording the behavior of the paperclip in the presence of the magnet and different intervening materials.
  • Hypothesis: A testable prediction about how the magnetic force will be affected by different non-magnetic materials.

Quiz

Answer the following questions in 2-3 sentences each.

  1. What is the primary phenomenon being demonstrated by the "Hanging Magnet" simulation?
  2. List three examples of non-magnetic materials that can be tested using this simulation.
  3. According to the provided text, what happens to the paperclip when an iron sheet is placed between it and the magnet? Why does this occur?
  4. What does the "Useful Variables" section in the description of the simulation indicate about what can be tracked or observed?
  5. The description mentions that "flipping of the magnet does nothing." Explain why this is the case in the context of the simulation.
  6. What is the purpose of allowing the user to change the material of the sheet in the simulation?
  7. What kind of learning goals might be associated with using this simulation in an educational setting?
  8. Besides the interactive simulation, what other types of resources are suggested in the "Other Resources" section that could be helpful for learning about magnetism?
  9. Based on the title of resource number 6 under "Other Resources," what specific concept about magnetism is it designed to demonstrate?
  10. How can this simulation be used as a tool for scientific inquiry or experimentation?

Quiz Answer Key

  1. The primary phenomenon being demonstrated is that magnetic force can act through non-magnetic materials. The simulation allows users to observe the interaction between a magnet and a paperclip with different materials placed in between.
  2. Three examples of non-magnetic materials that can be tested are wood, plastic, and ceramic, as listed in the "TLmsg" variable description. The simulation allows users to select these different "sheet types."
  3. When an iron sheet is placed between the magnet and the paperclip, the paperclip will rotate downwards. This suggests that the iron sheet, being a magnetic material, interacts with the magnetic field in a way that affects the force on the paperclip.
  4. The "Useful Variables" section indicates that the simulation allows tracking the coordinates of the paperclip and the sheet, their relative positions, and the size of the sheet. This helps in understanding the spatial relationships within the simulation.
  5. Flipping the magnet does nothing in the simulation because the fundamental magnetic properties of the magnet (north and south poles and the resulting field) are not being dynamically altered by this action in the model's calculations. The attractive force depends on the presence of the magnetic field, not its orientation in this simplified model.
  6. Allowing the user to change the material of the sheet enables the investigation of whether different non-magnetic materials affect the magnetic force between the magnet and the paperclip differently, or if they allow the magnetic force to pass through unimpeded.
  7. Learning goals for this simulation could include understanding that magnetism can act at a distance, that non-magnetic materials do not block magnetic forces, and exploring the properties of different materials in relation to magnetic fields.
  8. Besides the simulation, the "Other Resources" section suggests resources like visualizations of bar magnet field lines and simulations involving multiple magnets, which can provide a broader understanding of magnetic phenomena.
  9. Based on the title "Need Riveting and Rotating Paperclip and Magnet to demonstrate magnetism passes through non-magnetic materials," this resource aims to visually show that the magnetic force can still have an effect even when a non-magnetic material is present.
  10. This simulation allows users to test hypotheses about the effect of different non-magnetic materials on magnetic force by observing the paperclip's behavior when various materials are placed between it and the magnet. By changing the sheet type and observing the outcome, users can draw conclusions about the properties of magnetism.

Essay Format Questions

  1. Discuss how the "Hanging Magnet" simulation can be used as a virtual experiment to explore the concept of magnetism acting through non-magnetic materials. What are the strengths and limitations of using such a simulation compared to a physical, hands-on experiment?
  2. Explain the role of variables in the "Hanging Magnet" simulation. How does manipulating the "Type of Sheet" contribute to understanding the interaction between magnets, magnetic objects, and intervening non-magnetic materials?
  3. Based on the information provided about the "Hanging Magnet" simulation and the related resources, describe the potential learning outcomes for students who interact with this tool. How can teachers effectively integrate this simulation into a lesson on magnetism?
  4. The description mentions debugging messages and useful variables within the simulation. Discuss how these elements contribute to the development and understanding of the simulation itself and how they might indirectly benefit a user exploring the concept of magnetism.
  5. Compare and contrast the "Hanging Magnet" simulation with the suggested video "Magnets - Activity 1: The Floating Paper Clip." How do these two resources complement each other in illustrating the principles of magnetic force and interaction at a distance?

Glossary of Key Terms

  • Magnetism: A physical phenomenon produced by the motion of electric charge, resulting in attractive and repulsive forces between objects.
  • Magnetic Force: The force exerted by a magnetic field on magnetic materials or moving electric charges.
  • Magnetic Field Lines: Imaginary lines used to represent the direction and strength of a magnetic field around a magnet. The closer the lines, the stronger the field.
  • Magnetic Material: A material that exhibits a strong attractive force when placed in a magnetic field. Iron, nickel, and cobalt are common examples.
  • Non-Magnetic Material: A material that does not exhibit a significant attractive or repulsive force when placed in a magnetic field. Examples include wood, plastic, and aluminum.
  • Simulation: A computer program that models a real-world system or process, allowing users to interact with it and observe its behavior.
  • Variable: A quantity that can change or be changed in an experiment or simulation.
  • Hypothesis: A proposed explanation for a phenomenon, made as a starting point for further investigation.
  • Interaction at a Distance: The ability of objects to exert forces on each other without being in direct physical contact. Magnetic and gravitational forces are examples.
  • Applet: A small application, often written in Java or JavaScript, designed to be run within another application (like a web browser).

Sample Learning Goals

[text]

For Teachers


Initial Setup. This simulation allows the user to experiment with a sheet of different material to place it in between a magnet and a paperclip.

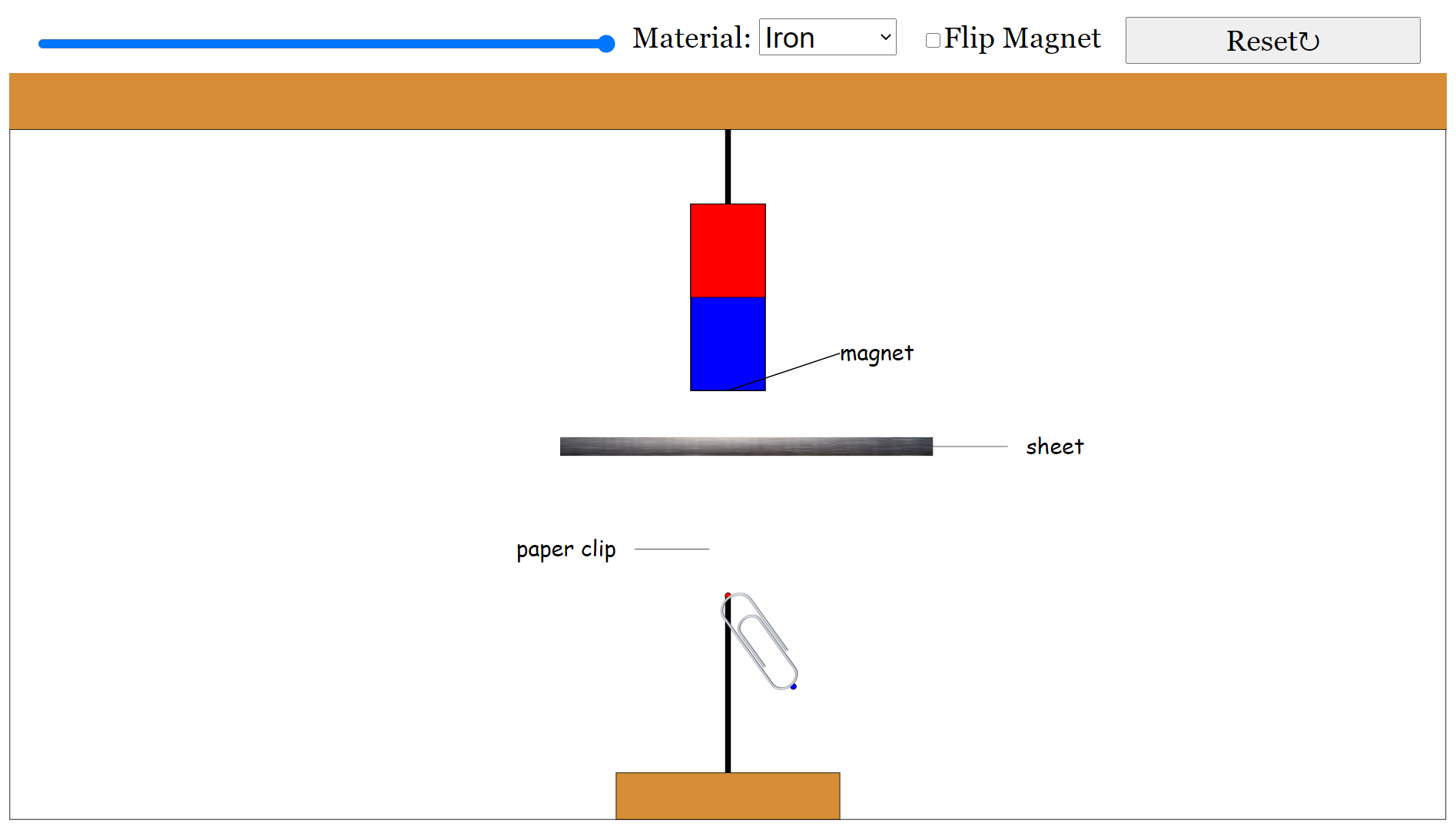

The view when an Iron sheet is placed in between the magnet and the paperclip. The paperclip will rotate downwards.

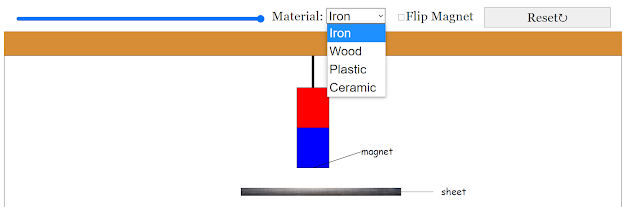

User may change the material of the sheet.

Research

[text]

Video

Magnets - Activity 1: The Floating Paper  Clip by Delta Science Modules

https://youtu.be/8TR4Qr9DxfQ?t=164

Demostration

Riveting and Rotating Paperclip and Magnet

 Version:

  1. https://weelookang.blogspot.com/2020/07/floating-paperclip-simulation-html5.html

Other Resources

  1. Need a Bar Magnet and Earth?
  2. Need a Bar Magnet Field Line?
  3. Need 2 Bars Magnet?
  4. Need a 3D visualization of a Bar Magnet Field Line?
  5. Need 2 Bar Magnets on a level surface for Primary School Science?
  6. Need Riveting and Rotating Paperclip and Magnet to demonstrate magnetism passes through non-magnetic materials
  7. Need Suspended Magnet with effects of Heating?
  8. Need Stacking Ring Magnets?
  9. Need More Simulations? Check this out!
  10. Frequently Asked Questions: Magnetism and Non-Magnetic Materials

    1. What is the core concept being demonstrated by the "Hanging Magnet" simulation?

    The primary concept demonstrated is that magnetism can pass through certain non-magnetic materials. This is visually represented by a magnet attracting a paperclip hanging by a string, even when a sheet of material (like wood, plastic, or ceramic) is placed between them. The simulation allows users to change the material of this intervening sheet to observe the effect on the magnetic attraction.

    2. What types of materials can be placed between the magnet and the paperclip in the simulation?

    The simulation allows users to experiment with different non-magnetic materials placed between the magnet and the paperclip. The interface explicitly mentions options such as Iron, Wood, Plastic, and Ceramic. Observing the paperclip's behavior with each material helps illustrate whether and how magnetism is affected.

    3. What visual cues in the simulation indicate the presence and strength of the magnetic force?

    The primary visual cue is the position and orientation of the hanging paperclip. When the magnet exerts a sufficient attractive force through the intervening material (or without any material), the paperclip will be pulled upwards towards the magnet. If the force is weaker or blocked, the paperclip will hang more vertically due to gravity. The simulation also provides numerical readouts (accessible through the debugging messages) for variables like distance, attractive force, and angle, offering a more quantitative understanding of the magnetic interaction.

    4. Does the orientation (flipping) of the magnet affect the outcome of the experiment in the simulation?

    According to the information provided, flipping the magnet in the simulation "does nothing as it doesn't change anything in the actual experiment." This suggests that the simulation focuses on the presence of the magnetic field passing through materials, rather than the specific orientation of the poles.

    5. What are some of the "Useful Variables" provided in the simulation for understanding the interaction?

    The simulation offers several useful variables for analysis, including:

    • Coordinates of the Paperclip (xPaperclip, yPaperclip) and its relative south position.
    • Coordinates of the Sheet (xSheet, ySheet) and its relative west position.
    • Size of the Sheet (xSizeS, ySizeS).
    • Distance between the magnet and the paperclip.
    • Attractive force (attractiveA).
    • Angle of the paperclip.
    • Angular velocity (omega).
    • Change in x and y coordinates (dx, dy).
    • Squared distance (distance2).
    • Initial and current theta angles (thetao, theta).
    • Coordinates of the paperclip tip (xPapercliptip, yPapercliptip).

    These variables allow users to gain a deeper insight into the mechanics of the magnetic interaction and the influence of the intervening material.

    6. What is the purpose of the "For Teachers" section in the simulation description?

    The "For Teachers" section provides guidance on how to use the simulation in an educational setting. It suggests an initial setup where an iron sheet is placed between the magnet and paperclip to observe the downward rotation of the paperclip. It also highlights the user's ability to change the sheet material as a key aspect of experimentation and learning. This section indicates that the simulation is designed as a tool for teaching about magnetism and the properties of different materials.

    7. How does the inclusion of the YouTube video link "Magnets - Activity 1: The Floating Paper Clip" enhance the learning experience associated with this simulation?

    The YouTube video provides a real-world demonstration of a related concept – a "floating" paperclip achieved through magnetic forces. Linking to such a video can provide students with a tangible example of the principles explored in the simulation, bridging the gap between the abstract model and a physical experiment. It can also offer different perspectives and explanations of magnetic phenomena.

    8. Where can users find more simulations and resources related to physics and other subjects mentioned alongside this simulation?

    The description includes a comprehensive list of "Other Resources" and "More Simulations," with links to various interactive applets and tools developed by Open Educational Resources / Open Source Physics @ Singapore and other contributors. This list covers a wide range of topics, including other magnetism simulations, mechanics, waves, optics, chemistry, and even educational games for different subjects and age levels. Users can explore this extensive collection to further their learning in diverse scientific and mathematical areas

5 1 1 1 1 1 1 1 1 1 1 Rating 5.00 (1 Vote)
