1. Core Concept: Bungee Jumping as an Approximation of Simple Harmonic Motion (SHM)
Both sources revolve around the idea of using a bungee jump as a physical scenario to explore and understand the principles of Simple Harmonic Motion (SHM). The title "Bungee SHM" directly indicates this focus, suggesting that under certain idealizations, the motion of a person on a bungee cord can be approximated by SHM.
2. Interactive Simulation for Learning:
The second source heavily emphasizes the use of an interactive HTML5 applet to visualize and explore the displacement of a bungee jumper over time, specifically in the context of SHM and the effect of damping.
- The resource is described as an "SHM Bungee Displacement against Time Graph with Damping HTML5 Applet Javascript." This highlights its key features: visualization of displacement vs. time, focus on a bungee system, incorporation of damping, and its format as an interactive web-based applet.
- The "Embed this model in a webpage" section provides an iframe code, indicating the tool's purpose is to be integrated into online learning environments.
- The "About" section explicitly states "Bungee Oscillation" as the introductory topic.
- The "Initial Setup" parameters are listed as "Initial Amplitude, Period, frequency and Damping Ratio," confirming that these are the controllable variables within the simulation, directly related to the characteristics of an oscillating system, including damping.

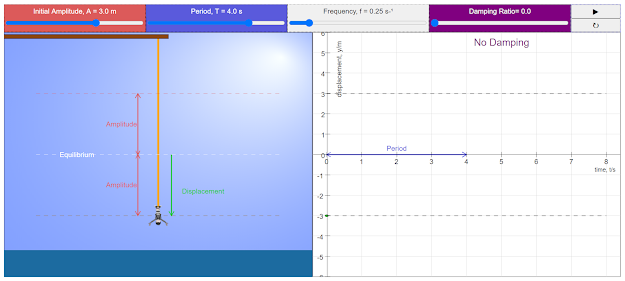

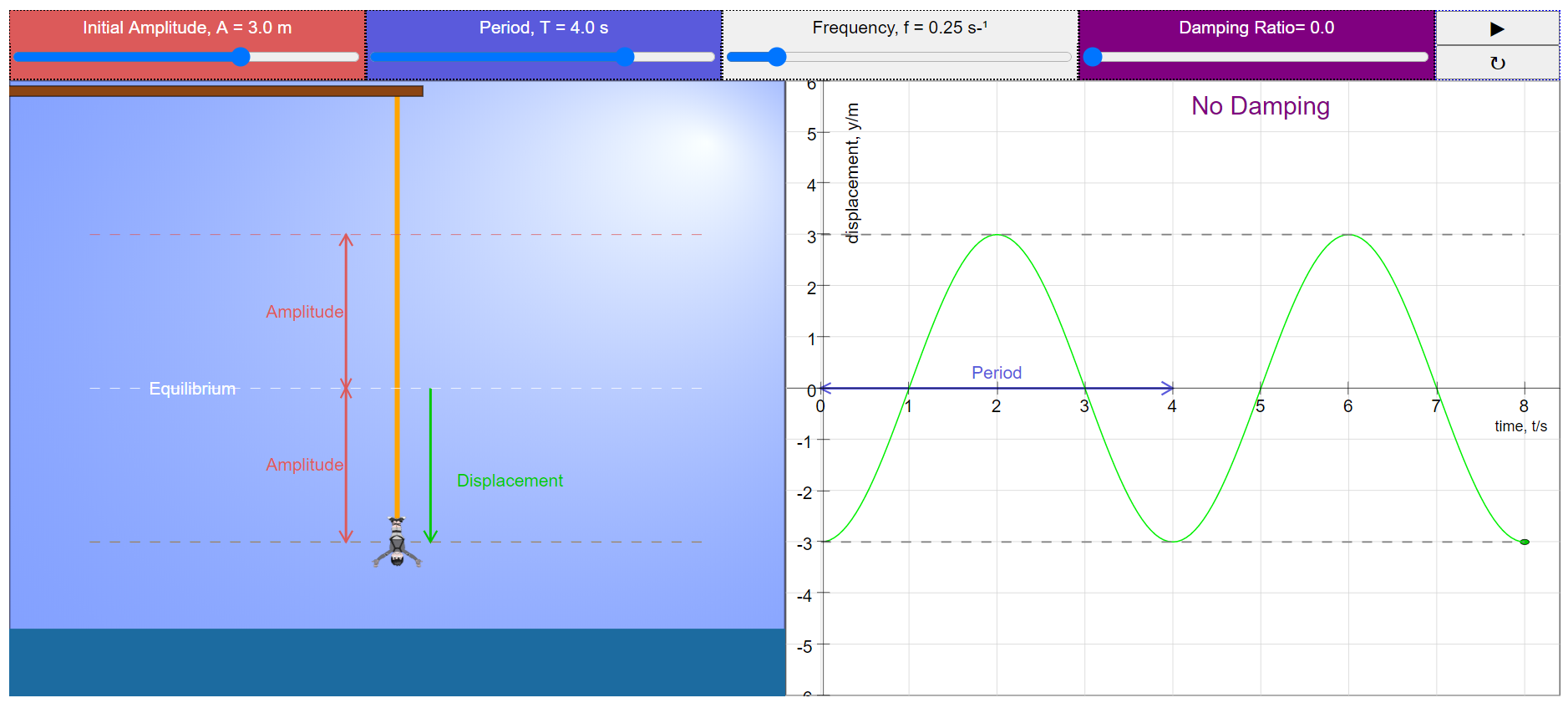

- The description notes that "This simulation displays a displacement against time graph. In its default state, the graph will be drawn as shown with no Damping." This emphasizes the ability to observe the fundamental SHM behavior without the complexity of damping initially.

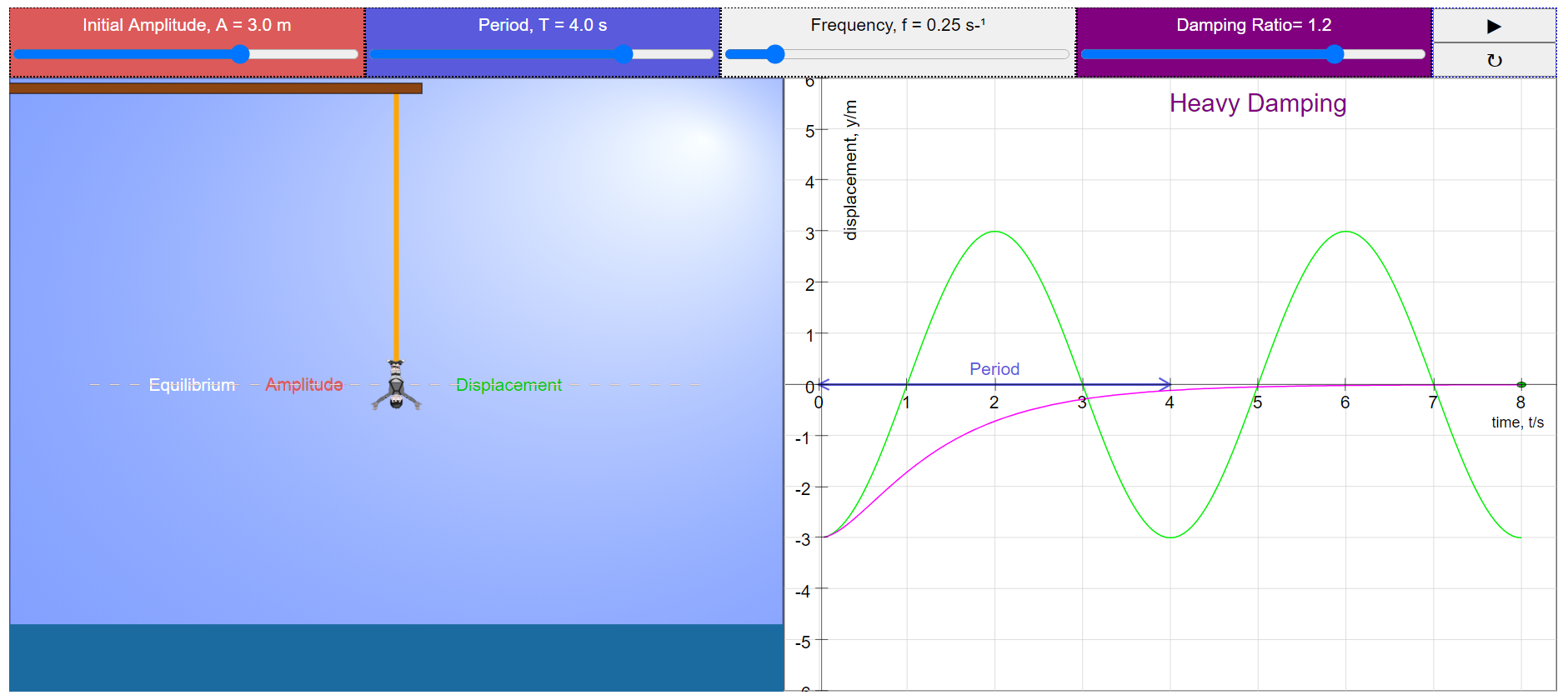

- Users can then "run the simulation in its default state to create a comparison when there is Damping involved, from No Damping to Heavy Damping." This highlights a key learning objective: understanding how damping affects the oscillatory motion.
3. Learning Goals and Teacher Resources:
The second source also indicates its pedagogical purpose:
- The presence of "Sample Learning Goals" (although the specific text is not provided) suggests that the resource is designed to help students achieve specific understandings related to SHM and damped oscillations in the context of a bungee jump.
- The "For Teachers" section provides guidance on the "Initial Setup" and how to use the controllable variables to facilitate learning. This suggests that the resource is intended to be used in an educational setting with guided activities.
4. Credits and Authorship:
Both sources attribute the work to the same individuals: Leong Tze Kwang, Lawrence Wee Loo Kang, Francisco Esquembre, and Felix Garcia Clemente. This suggests a collaborative effort in developing both the theoretical concepts (implied by "Bungee SHM") and the interactive simulation. The compilation with "EJS 6.1 BETA (200414)" and the mention of the "Easy Java/JavaScript Simulations Toolkit" further indicates the technological foundation of this educational resource.
5. Broader Context: Open Educational Resources and Open Source Physics:
The header of the second source clearly identifies it as part of "Open Educational Resources / Open Source Physics @ Singapore." This places the work within a larger movement focused on providing freely accessible and modifiable educational materials for physics learning. The extensive list of other interactive resources on the webpage demonstrates the breadth of this initiative.
6. Relationship to Other SHM Concepts:
The listing of related resources, such as "SHM Bungee Acceleration vs Displacement Graph," "SHM Overall Bungee HTML5 Applet Javascript," and "SHM Bungee Phase Circle Graph," suggests that the "SHM Bungee Displacement against Time Graph" is part of a suite of tools designed to provide a comprehensive exploration of SHM through the bungee jumping analogy, examining different aspects of the motion and its graphical representations.
7. Damping as a Key Extension:
The explicit inclusion of "Damping" in the title and description of the applet indicates that understanding the effects of resistive forces on the idealized SHM of a bungee jump is a significant component of this learning resource. Comparing undamped and damped oscillations is a central activity.
In summary, the provided sources highlight the use of the familiar scenario of a bungee jump as a pedagogical tool to introduce and explain the concepts of Simple Harmonic Motion. The development of an interactive HTML5 simulation allows students to visualize the displacement of a bungee jumper over time and, crucially, to explore the impact of damping on this oscillatory motion. This resource is part of a broader initiative in Open Educational Resources and Open Source Physics, aiming to provide freely accessible and engaging tools for physics education.
Bungee SHM Study Guide
Key Concepts
- Simple Harmonic Motion (SHM): A type of periodic motion where the restoring force is directly proportional to the displacement and acts in the direction opposite to that of displacement.
- Oscillation: The repetitive variation, typically in time, of some measure about a central value or between two or more different states.
- Bungee Cord as an Oscillator: The elasticity of a bungee cord can cause an attached mass to oscillate after being stretched and released.
- Displacement: The distance and direction of an object from its equilibrium position.
- Time Graph: A visual representation of how a quantity (like displacement) changes over time, with time plotted on the horizontal axis and the quantity on the vertical axis.
- Damping: A phenomenon that dissipates energy from an oscillating system, causing the amplitude of oscillations to decrease over time.
- Amplitude: The maximum displacement or distance moved by a point on a vibrating body or wave measured from its equilibrium position.
- Period (T): The time taken for one complete oscillation.
- Frequency (f): The number of oscillations that occur per unit of time (typically per second), often measured in Hertz (Hz). The relationship between period and frequency is f = 1/T.
- Damping Ratio: A dimensionless measure describing how oscillations in a system decay after a disturbance. It indicates the level of damping present in the system.
- Controllable Variables: Parameters in a simulation that the user can adjust to observe their effect on the system's behavior.
Quiz
- What is simple harmonic motion (SHM), and what is the key characteristic of the restoring force in SHM?
- Explain how a bungee cord can act as an oscillator when a mass is attached to it and released.
- What does a displacement against time graph for a bungee oscillation show, and what are the axes representing?
- Define damping in the context of oscillations. How does damping typically affect the amplitude of oscillations over time?
- What is the amplitude of an oscillation, and how is it represented on a displacement against time graph?
- Explain the terms period and frequency in the context of oscillations. What is the mathematical relationship between them?
- What is the damping ratio, and what does it indicate about the level of damping in an oscillating system?
- According to the provided text, what are some of the controllable variables in the "SHM Bungee Displacement against Time Graph with Damping" simulation?
- In the default state of the simulation, what is the condition of damping, and why might a user want to run the simulation in this state?
- How can using the "SHM Bungee Displacement against Time Graph with Damping" simulation help in understanding the effect of damping on bungee oscillations?
Quiz Answer Key
- Simple Harmonic Motion (SHM) is a periodic motion where the restoring force is directly proportional to the displacement from the equilibrium position and acts in the opposite direction. This restoring force is the fundamental characteristic of SHM.
- When a mass is attached to a bungee cord and pulled down (displaced from its equilibrium), the stretched cord exerts an upward elastic restoring force proportional to the displacement. Upon release, this force causes the mass to oscillate up and down.
- A displacement against time graph for a bungee oscillation shows how the position of the mass (displacement from its equilibrium) changes as time progresses. The vertical axis represents displacement, and the horizontal axis represents time.
- Damping is the process by which energy is dissipated from an oscillating system, typically due to resistive forces like friction or air resistance. Damping causes the amplitude of oscillations to decrease gradually over time until the oscillations eventually cease.
- The amplitude of an oscillation is the maximum extent of the oscillation, measured from the equilibrium position. On a displacement against time graph, the amplitude is the peak value of the displacement (either positive or negative) from the zero line.
- The period (T) is the time required for one complete cycle of oscillation. The frequency (f) is the number of complete oscillations that occur per unit of time. They are inversely related by the formula: frequency (f) = 1 / period (T).
- The damping ratio is a dimensionless quantity that describes the level of damping in an oscillatory system. A higher damping ratio indicates a greater level of damping, leading to a faster decay of oscillations.
- According to the text, the controllable variables in the "SHM Bungee Displacement against Time Graph with Damping" simulation are the Initial Amplitude, Period, frequency, and Damping Ratio.
- In its default state, the graph is drawn with no damping. A user might want to run the simulation in this state to establish a baseline and create a comparison for how damping affects the oscillations when it is introduced.
- By adjusting the damping ratio from no damping to heavy damping and observing the resulting displacement against time graphs, users can visually and conceptually understand how different levels of damping influence the amplitude and duration of bungee oscillations.
Essay Format Questions
- Discuss the relationship between simple harmonic motion and the oscillations of a mass on a bungee cord. In what ways does the bungee cord system approximate SHM, and what factors might cause deviations from ideal SHM?
- Explain the significance of a displacement against time graph in analyzing oscillatory motion. How can features of this graph, such as amplitude, period, and the rate of decay, provide information about a damped bungee cord system?
- Describe the phenomenon of damping and its effects on a bungee cord oscillation. Discuss the role of the damping ratio in characterizing the level of damping and how different levels of damping would manifest on a displacement against time graph.
- Considering the "SHM Bungee Displacement against Time Graph with Damping" simulation, analyze how manipulating the controllable variables (Initial Amplitude, Period, Frequency, and Damping Ratio) would affect the resulting displacement against time graph and the overall oscillatory behavior of the bungee system.
- Based on the provided resources, discuss the pedagogical value of using interactive simulations, such as the "SHM Bungee Displacement against Time Graph with Damping" applet, in learning about simple harmonic motion and damped oscillations. What learning goals can be effectively addressed through such tools?
Glossary of Key Terms
- Simple Harmonic Motion (SHM): A periodic motion where the restoring force is directly proportional to the displacement and acts in the opposite direction.
- Oscillation: A repetitive variation or movement around a central equilibrium position.
- Bungee Cord: An elastic cord that can stretch significantly when a force is applied and return to its original length when the force is removed.
- Displacement: The change in position of an object from its equilibrium point, including both distance and direction.
- Time Graph: A graph that shows how a variable changes with respect to time.
- Damping: The dissipation of energy from an oscillating system, resulting in a decrease in amplitude over time.
- Amplitude: The maximum displacement of an oscillating object from its equilibrium position.
- Period (T): The time required for one complete cycle of an oscillation.
- Frequency (f): The number of complete oscillations per unit of time.
- Damping Ratio: A dimensionless parameter that describes the level of damping in an oscillatory system.
- Controllable Variables: Parameters in a simulation that can be adjusted by the user to observe their impact on the system.
Sample Learning Goals
[text]
For Teachers
Research
[text]
Video
[text]
Version:
Other Resources
[text]
Frequently Asked Questions: Bungee Jumping and Simple Harmonic Motion
1. What is the fundamental concept being explored in the "Bungee SHM" resource and the associated simulation?
The core idea is to model and visualize the motion of a bungee jumper as a form of damped or undamped simple harmonic motion (SHM). It allows users to observe how factors like initial amplitude, period, frequency, and damping influence the displacement of the jumper over time, drawing parallels between a bungee cord's elasticity and the restoring force in SHM.
2. What kind of simulation is provided by the "SHM Bungee Displacement against Time Graph with Damping HTML5 Applet Javascript"?
This resource offers an interactive HTML5 applet that simulates the vertical motion of a bungee jumper. The key feature is the visualization of a displacement versus time graph, which dynamically updates as the simulation runs. Users can control variables such as initial amplitude, period, frequency, and, crucially, the damping ratio to observe its effect on the oscillations.
3. What does the "Damping Ratio" control in the bungee jumping simulation, and why is it important?
The damping ratio controls the rate at which the oscillations of the bungee jumper decrease in amplitude over time due to resistive forces (like air resistance). It's important because real-world oscillations are rarely perfectly simple harmonic; energy is typically lost to the environment, causing the motion to eventually cease. The simulation allows users to compare scenarios with no damping, light damping, and heavy damping to understand this effect.
4. What are some of the controllable variables in the bungee jumping simulation, and how do they relate to the motion?
The controllable variables include:
- Initial Amplitude: This determines the starting displacement of the jumper from their equilibrium position, directly affecting the maximum displacement during the oscillation.
- Period: This is the time taken for one complete cycle of oscillation. It influences the overall speed of the oscillatory motion.
- Frequency: This is the number of oscillations that occur per unit of time and is inversely related to the period. A higher frequency means faster oscillations.
- Damping Ratio: As mentioned earlier, this controls how quickly the oscillations decay over time.
By manipulating these variables, users can explore their individual and combined effects on the resulting displacement-time graph and the overall oscillatory behavior.
5. What is the educational value of using this type of simulation for understanding bungee jumping and SHM?
The simulation provides a visual and interactive way to grasp abstract concepts related to oscillatory motion. By allowing users to manipulate parameters and observe the immediate impact on the displacement-time graph, it fosters a deeper intuitive understanding of SHM, damping, and the factors influencing a bungee jump. It enables exploration of "what-if" scenarios and facilitates comparisons between idealized SHM (no damping) and more realistic damped oscillations.
6. Who are the creators of these resources, and what is the licensing under which they are released?
The "Bungee SHM" resource and the associated simulation are credited to Leong Tze Kwang, Lawrence Wee Loo Kang, Francisco Esquembre, and Felix Garcia Clemente. The resources are released under a Creative Commons Attribution-Share Alike 4.0 Singapore License, which generally allows for sharing and adaptation with appropriate attribution and under the same license terms. The EasyJavaScriptSimulations library used in the simulation has a separate license for commercial use, as specified in the provided text.
7. Where can users typically find and potentially embed this "SHM Bungee Displacement against Time Graph with Damping" simulation?
The resource is part of the Open Educational Resources / Open Source Physics @ Singapore project. The provided text includes an embed code (an <iframe> tag) suggesting that the simulation is hosted online at the given URL (https://iwant2study.org/lookangejss/02_newtonianmechanics_8oscillations/ejss_model_shmbungeev15/_shmbungeev15_Simulation.xhtml) and can be embedded into other webpages using this code. The parent website is also mentioned: https://weelookang.blogspot.com/2020/07/simple-harmonic-motion-shm-bungee_17.html.
8. Beyond bungee jumping, what broader physics concepts do these resources help to illustrate?
While the immediate context is bungee jumping, these resources fundamentally illustrate the principles of Simple Harmonic Motion (SHM) and damped oscillations, which are crucial concepts in various areas of physics and engineering. These principles apply to other oscillating systems like springs, pendulums (under small angle approximations), and even certain electrical circuits. The simulation helps visualize key characteristics of SHM such as period, frequency, amplitude, and the role of restoring forces, as well as the real-world phenomenon of energy dissipation through damping.
