About
Useful Variables:
- Coordinates of Rod, xRod, yRod, relative position East, most right tip
- Coordinates of Magnet, xMagnet, yMagnetm relative position West, most left tip
- Heating, fireOn, true or false
Information:
- Very simple repulsion, attempted attraction
- Based on the qns, Rod X is supposed to be a magnet, so flipping the magnet is an option, meaning we must include attraction. (variable: flipMagnet:true/false)
Debugging Purposes:
TL: "xRod+dxRod/2="+(xRod+dxRod/2).toFixed(2)+"\ninCollisionRange="+inCollisionRange+"\nxMagnet.toFixed(2)="+xMagnet.toFixed(2)
TR: "distance=" + distance+"\nattractivepower="+attractivepower+"\nxRod="+xRod+"\nxMagnet="+xMagnet+"\ndebugangle="+debugangle+"\ncheck="+((xRod+dxRod/2)>xMagnet)
BL: %hint%
BR: "distance2="+distance2+"\nstage="+stage+"\ntheta="+theta+"\nomega="+omega+"\nthetacollsion="+thetacollsion
Translations
| Code | Language | Translator | Run | |
|---|---|---|---|---|
 |
||||
Credits
weelookang@gmail.com; Francisco Esquembre; Felix J. Garcia Clemente; Siti
Main Themes and Important Ideas/Facts:
- Interactive Learning Tool for Magnetism: The core theme is the use of an interactive simulation to teach fundamental concepts of magnetism, specifically repulsion and attraction between magnetic objects. The applet provides a visual and manipulable environment for students to understand these forces. The "Initial Setup" encourages users to "drag the magnet closer to the Rod to see the interaction."
- Demonstrating Repulsion and Potential Attraction: The simulation is initially set up to show repulsion between the rod and the magnet, implying that "Rod X is supposed to be a magnet, so flipping the magnet is an option, meaning we must include attraction." This allows users to investigate the concept of magnetic poles and how their orientation affects the interaction force.

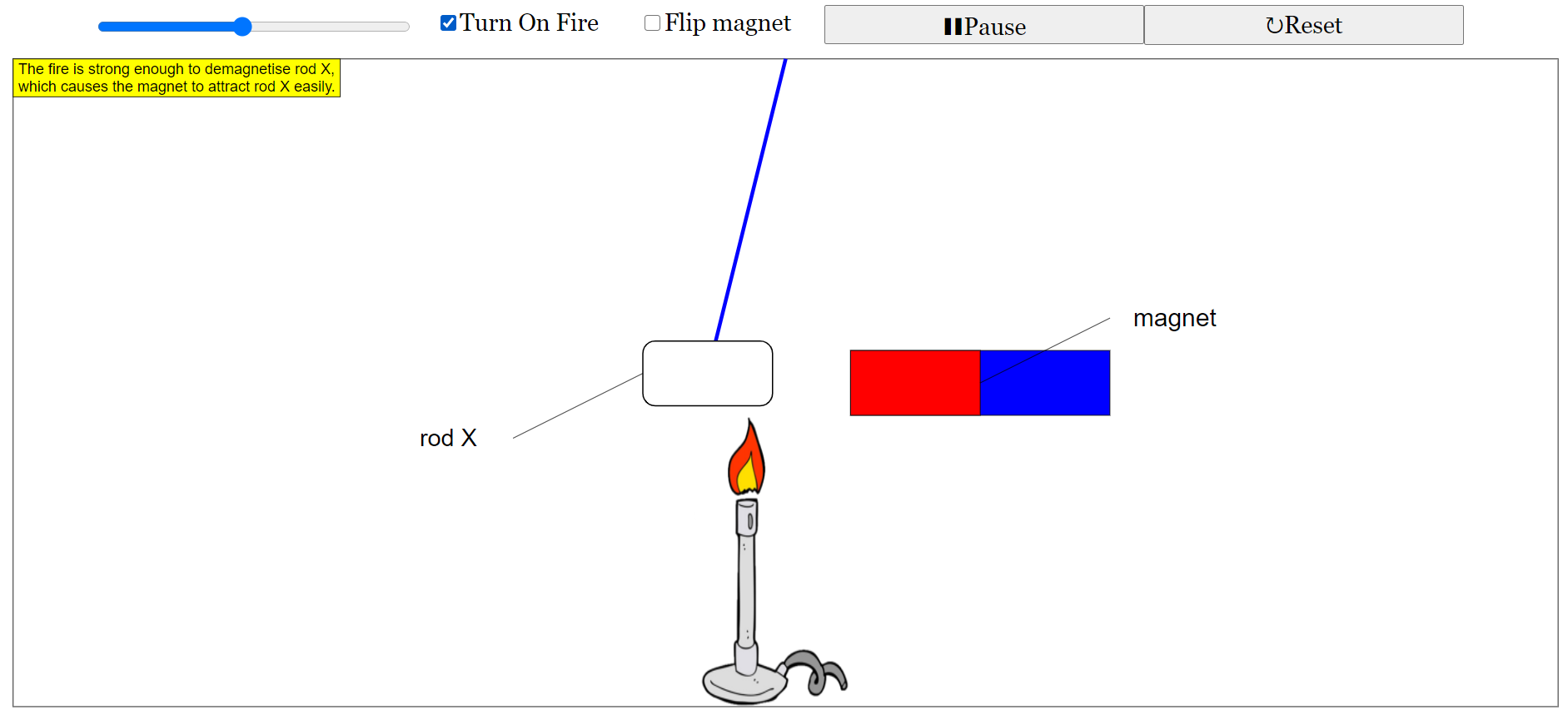

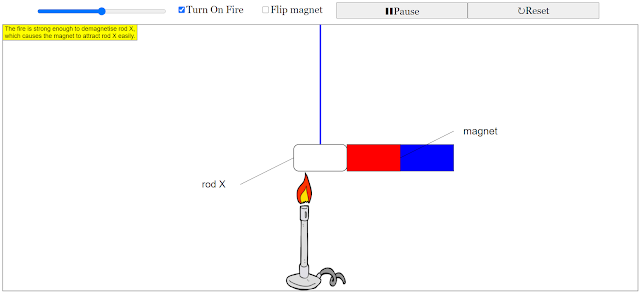

- Investigating Demagnetization through Heating: A key feature of the simulation is the ability to "turn on the fire to heat up the rod to see if anything will happen." The underlying assumption is that "the fire is assumed to be strong enough to demagnetise Rod X, thus rod X will be attracted by the Magnet." This introduces the concept that magnetic properties can be altered through external factors like heat.

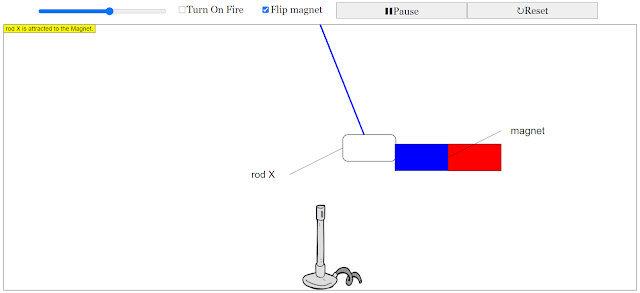

- Exploring Magnetic Polarity through Flipping: The simulation allows the user to "choose to flip the magnet to determine whether Rod X is a magnet. Thus, this shows an attraction between the two objects." This directly allows students to test the hypothesis of Rod X being a magnet and observe the change in interaction based on the relative orientation of magnetic poles. The inclusion of the variable flipMagnet:true/false in the "Useful Variables" confirms this functionality.
- Open Educational Resource: The applet is part of the "Open Educational Resources / Open Source Physics @ Singapore" project, indicating its commitment to providing free and accessible educational materials. The license mentioned in the "Suspended Magnet" document ("Released under a license") and the explicit mention of "Creative Commons Attribution-Share Alike 4.0 Singapore License" on the web page reinforces this.
- Technical Details and Underlying Mechanics: The "About" section of the web page provides insights into the simulation's variables and underlying logic. It mentions "Very simple repulsion, attempted attraction" and lists key variables such as the coordinates of the rod and magnet (xRod, yRod, xMagnet, yMagnetm), the heating state (fireOn), and the magnet flip state (flipMagnet). The "Debugging Purposes" section reveals variables like distance, attractivepower, theta, and omega, suggesting a physics-based calculation of the interaction.
- Intended Learning Goals and Teacher Guidance: The "Sample Learning Goals" section (though empty in the provided excerpt) indicates that the resource is designed with specific educational objectives in mind. The "For Teachers" section explicitly outlines how the simulation can be used in a classroom setting, suggesting initial setups and experiments that students can perform.
- Integration and Accessibility: The provision of an "Embed" code (<iframe width="100%" height="100%" src="/ospsg/..."></iframe>) highlights the ease with which this simulation can be integrated into websites and learning management systems, enhancing its accessibility for educators and students.
- Part of a Larger Collection of Physics Simulations: The extensive list of "Other Resources" and related applets on the web page demonstrates that the "Suspended Magnet" simulation is part of a much larger collection of interactive physics learning tools covering various topics from mechanics and thermodynamics to modern physics and electromagnetism. The sheer volume of these resources indicates a significant effort in creating open-source physics education materials.
- Credits and Collaboration: The "Credits" section acknowledges the individuals involved in the creation of the simulation ("weelookang@gmail.com; Francisco Esquembre; Felix J. Garcia Clemente; Siti"), highlighting the collaborative nature of open-source educational resource development.
Key Quotes:
- From the "Suspended Magnet HTML5 Applet Javascript" page, "Initial Setup. User is able to drag the magnet closer to the Rod to see the interaction."
- From the same page, regarding the initial state: "The simulation is based on the question of whether Rod X is a magnet or not. In this case, it is as the two objects are repelling."
- From the same page, on heating: "User can experiment by turning on the fire to heat up the rod to see if anything will happen. The fire is assumed to be strong enough to demagnetise Rod X, thus rod X will be attracted by the Magnet."
- From the same page, on flipping the magnet: "At the initial setup, the user can choose to flip the magnet to determine whether Rod X is a magnet. Thus, this shows an attraction between the two objects."
- From the "About" section: "Very simple repulsion, attempted attraction."
Conclusion:
The "Suspended Magnet" simulation is a valuable open educational resource for teaching fundamental concepts of magnetism. Its interactive nature, coupled with the ability to manipulate variables like magnet orientation and rod temperature, allows for engaging and inquiry-based learning. The detailed information provided on the associated web page, including learning goals and teacher guidance, further enhances its pedagogical value. As part of a larger collection of physics simulations, it contributes to a significant repository of open-source materials for physics education.
Suspended Magnet Simulation Study Guide
Quiz
- What is the primary interaction being demonstrated in the "Suspended Magnet" simulation at its initial setup?
- According to the "For Teachers" section, what happens to the magnetic properties of Rod X when the fire is turned on in the simulation?
- Identify two "Useful Variables" listed in the "About" section of the applet and briefly describe what they represent.
- What option does the simulation provide to allow users to explore the possibility of Rod X being a magnet with an opposite pole facing the suspended magnet?
- Where can a user find the HTML code to embed the "Suspended Magnet" model into a webpage?
- Based on the "Sample Learning Goals" text (which is empty in the provided source), infer what a likely learning goal of this simulation might be related to magnetism.
- Name at least two other physics-related simulations or resources mentioned on the same webpage as the "Suspended Magnet" applet.
- What does the debugging information labeled "TL" display about the rod and magnet in the simulation?
- According to the credits, who are the individuals involved in the creation and compilation of this simulation?
- What is the license under which the contents of the Open Educational Resources / Open Source Physics @ Singapore website are released?
Quiz Answer Key
- The primary interaction demonstrated initially is repulsion between the suspended magnet and Rod X, indicating that Rod X is behaving as a magnet with like poles facing each other.
- When the fire is turned on, it is assumed to be strong enough to demagnetise Rod X. As a result, Rod X will then be attracted by the suspended magnet.
- Two useful variables are:
- xRod, yRod: These represent the coordinates of the Rod, specifically the relative position of its East, most right tip.
- xMagnet, yMagnetm: These represent the coordinates of the Magnet, specifically the relative position of its West, most left tip.
- The simulation allows the user to experiment with flipping the magnet (variable: flipMagnet:true/false) to determine if there is attraction between the two objects, exploring the scenario where Rod X might have the opposite magnetic pole facing the suspended magnet.
- The HTML code to embed the model in a webpage is provided under the "Embed" heading, within an <iframe> tag that links to the simulation's URL.
- A likely learning goal might be to understand the concept of magnetic repulsion and attraction, how heating can affect magnetic properties, or how the orientation of magnetic poles influences the interaction between magnets.
- Examples of other physics-related simulations or resources mentioned include "PICUP Relativistic Dynamics in 1D with a constant force JavaScript Simulation Applet HTML 5," "Need a Bar Magnet and Earth?," and "Swinging Magnet HTML5 Applet Javascript." (Many other examples are listed).
- The debugging information labeled "TL" displays the x-coordinate of the center of the rod (xRod+dxRod/2), the boolean value of inCollisionRange, and the x-coordinate of the magnet (xMagnet.toFixed(2)).
- The individuals credited for the creation and compilation are weelookang@gmail.com, Francisco Esquembre, Felix J. Garcia Clemente, and Siti.
- The contents are licensed under the Creative Commons Attribution-Share Alike 4.0 Singapore License.
Essay Format Questions
- Discuss how the "Suspended Magnet" simulation can be used as an interactive tool to teach fundamental concepts of magnetism in a physics classroom. Include specific examples of how a teacher might guide students through the simulation to achieve learning objectives.
- Analyze the design and functionality of the "Suspended Magnet" applet as described in the provided sources. What are its strengths and limitations as an open educational resource for learning about magnetic interactions?
- Based on the information provided, describe the pedagogical approach behind the creation of the "Suspended Magnet" simulation and the broader "Open Educational Resources / Open Source Physics @ Singapore" project. What evidence supports your analysis?
- Explore the role of simulations like "Suspended Magnet" in modern physics education. How do these interactive tools compare to traditional methods of teaching magnetism, and what are the potential benefits and challenges of their widespread adoption?
- Considering the various debugging variables and options available in the "Suspended Magnet" simulation, discuss how such features can be valuable not only for developers but also for students and teachers seeking a deeper understanding of the underlying physics model.
Glossary of Key Terms
- Applet: A small application, often written in Java or JavaScript, designed to run within another application (such as a web browser) or platform. In this context, it refers to the interactive simulation.
- Repulsion: The force that pushes two objects apart. In magnetism, this occurs between like poles (e.g., North-North or South-South).
- Attraction: The force that pulls two objects together. In magnetism, this occurs between opposite poles (e.g., North-South).
- Demagnetisation: The process of losing or reducing magnetic properties in a material. In the simulation, heating is assumed to cause this in Rod X.
- Coordinates: A set of values that define the position of a point in space. In the applet, x and y coordinates are used to track the positions of the rod and magnet.
- Variable: A named storage location in a computer program that holds a value that can be changed or accessed. The "About" section lists several variables used in the simulation.
- HTML5: The latest evolution of the standard that defines the structure and content of the web. It enables rich multimedia experiences, including interactive simulations, directly in the browser.
- Open Educational Resources (OER): Teaching, learning, and research materials that are freely available and can be used, adapted, and shared with no or limited restrictions.
- Open Source Physics (OSP): A project focused on creating and sharing computational tools and resources for physics education, often emphasizing open-source software and freely available content.
- Simulation: A computer-based model of a real-world system or process, used to explore its behavior and properties. The "Suspended Magnet" applet is an example of a physics simulation.
Sample Learning Goals
[text]
For Teachers

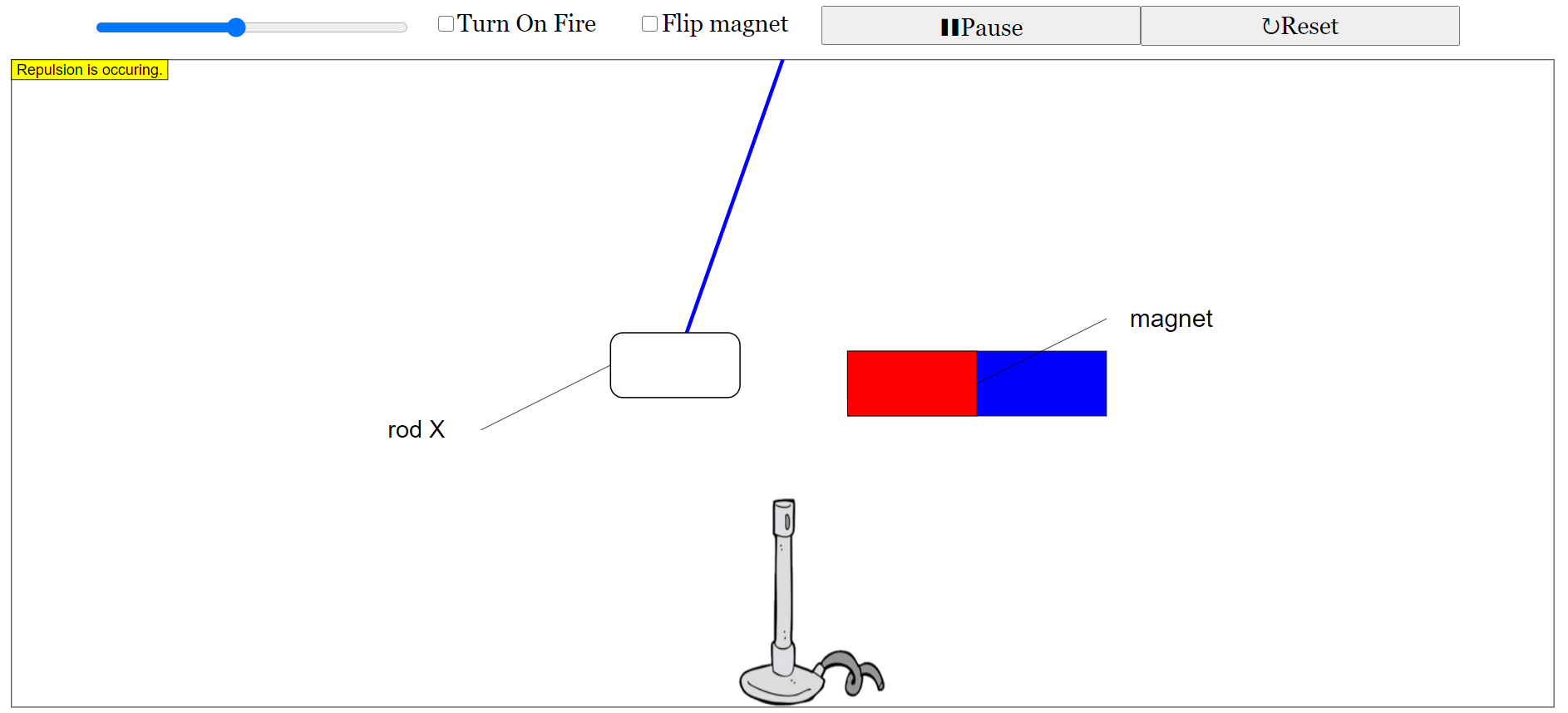

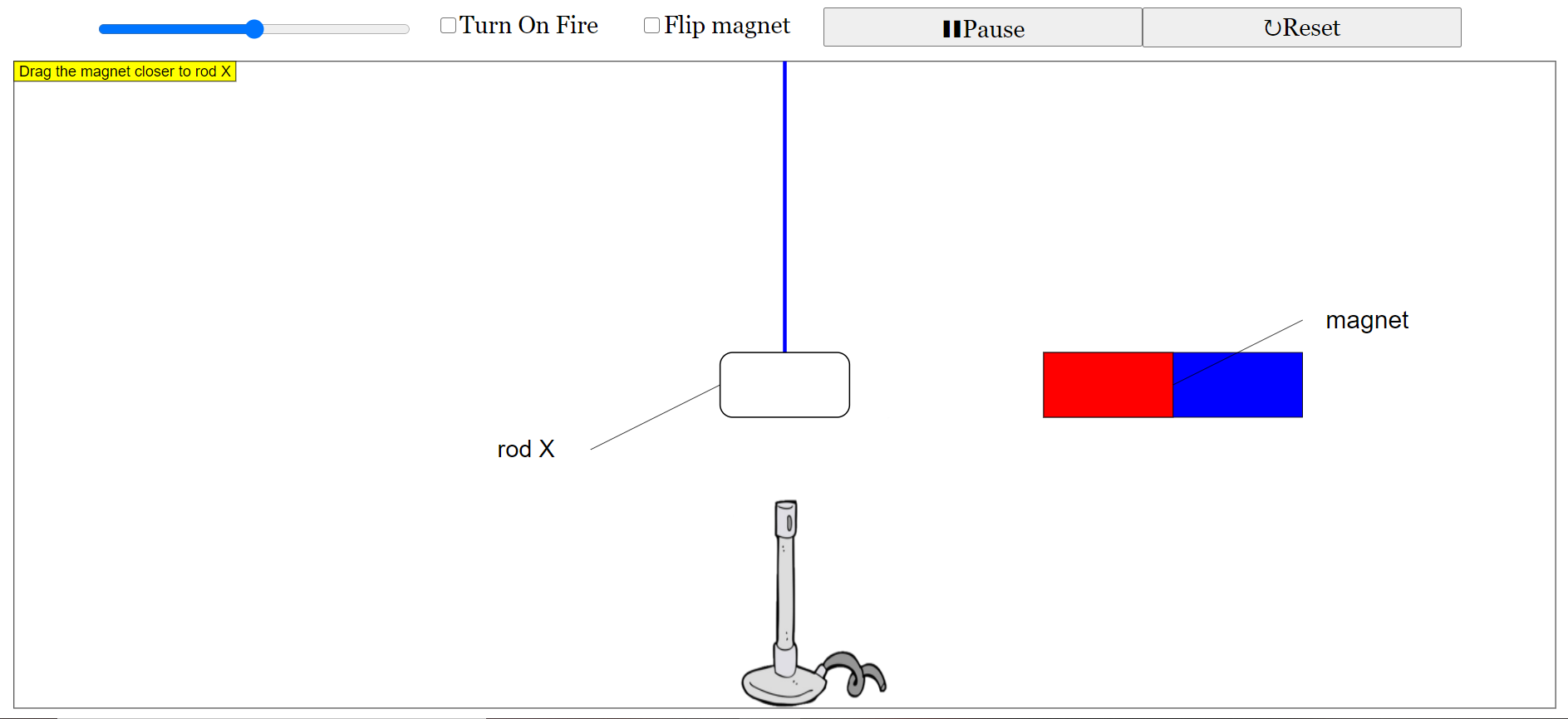

Initial Setup. User is able to drag the magnet closer to the Rod to see the interaction.
Research
[text]
Video
Version:
Other Resources
- https://youtube.com/shorts/NwhnMLd0_wY?si=gHyJr7JDBnPabqf0
- Need a Bar Magnet and Earth?
- Need a Bar Magnet Field Line?
- Need 2 Bars Magnet?
- Need a 3D visualization of a Bar Magnet Field Line?
- Need 2 Bar Magnets on a level surface for Primary School Science?
- Need Riveting and Rotating Paperclip and Magnet to demonstrate magnetism passes through non-magnetic materials
- Need Suspended Magnet with effects of Heating?
- Need Stacking Ring Magnets?
- Need More Simulations? Check this out!
-
Frequently Asked Questions: Suspended Magnet Simulation
Q1: What is the purpose of the Suspended Magnet simulation?
The Suspended Magnet simulation is an interactive tool designed to explore the fundamental principles of magnetism and magnetic interactions. It allows users to observe and manipulate a magnet in relation to another object (a rod), investigating concepts such as magnetic repulsion and attraction. The simulation is intended for educational purposes, helping users visualize abstract magnetic forces and understand the factors influencing them.
Q2: How can I interact with the Suspended Magnet simulation?
Users can interact with the simulation by dragging the magnet closer to the rod to observe the resulting interaction. The simulation also provides controls to "flip" the magnet, effectively changing its polarity relative to the rod. Additionally, a "fire" feature allows users to simulate heating the rod, exploring the potential demagnetization of the rod and the subsequent change in magnetic interaction.
Q3: What key variables are available for observation and what do they represent?
The simulation exposes several useful variables for observation, providing insights into the physics at play. These include:
- Coordinates of Rod (xRod, yRod): Indicate the position of the rod, with a specific reference point (East, most right tip).
- Coordinates of Magnet (xMagnet, yMagnetm): Indicate the position of the magnet, with a specific reference point (West, most left tip).
- Heating (fireOn): A boolean variable (true/false) indicating whether the heating feature is active.
- Flip Magnet (flipMagnet): A boolean variable (true/false) that allows users to reverse the polarity of the magnet.
- Distance: The distance between the rod and the magnet.
- Attractive Power: A value representing the strength of the attractive force between the objects (if applicable).
- Debug Variables (e.g., debugangle, check, theta, omega): These variables are likely used for development and debugging purposes, providing more detailed information about the simulation's internal calculations and states.
Q4: How does the simulation model magnetic interaction?
The simulation models magnetic interaction as a combination of repulsion and attempted attraction between the magnet and the rod. The initial setup, where the objects repel, suggests that the rod is initially considered to be a magnet with like poles facing each other. The option to "flip" the magnet introduces the possibility of attraction, simulating the interaction of opposite magnetic poles.
Q5: What is the significance of the "fire" or heating feature in the simulation?
The "fire" or heating feature simulates the effect of heat on the magnetic properties of the rod. The simulation assumes that the fire is strong enough to demagnetize the rod. If the rod is demagnetized, it will no longer repel the magnet and, due to the underlying attempt at attraction programmed in the simulation, will then be attracted to the magnet. This demonstrates the relationship between heat and magnetism.
Q6: What learning goals can be achieved by using this simulation?
This simulation can help users achieve several learning goals, including:
- Understanding the basic principles of magnetic repulsion and attraction.
- Investigating how the relative orientation (polarity) of magnets affects their interaction.
- Exploring the concept of demagnetization through the application of heat.
- Developing observational skills by manipulating variables and analyzing the resulting changes in the system.
- Testing hypotheses about the magnetic properties of the rod through experimentation.
Q7: Is the Suspended Magnet simulation open source and where can I find more related resources?
Yes, the Suspended Magnet HTML5 Applet is part of the Open Educational Resources / Open Source Physics @ Singapore project. This means the underlying code and resources are likely available for educational use and modification under appropriate licenses (specifically mentioned as Creative Commons Attribution-Share Alike 4.0 Singapore License for the content, with a separate license for the EasyJavaScriptSimulations Library). The provided text lists numerous related resources, including other physics simulations, YouTube videos demonstrating the Suspended Magnet applet, and links to platforms like Open Source Physics.
Q8: For whom is this Suspended Magnet simulation designed?
Based on the listed "Sample Learning Goals" and the context of "Open Educational Resources / Open Source Physics @ Singapore," this simulation is likely designed for students learning about magnetism at various levels, potentially ranging from primary school to more advanced physics courses. The "For Teachers" section also indicates its use as a tool for classroom demonstrations and interactive learning activities.
