Sample Learning Goals
[text]
For Teachers

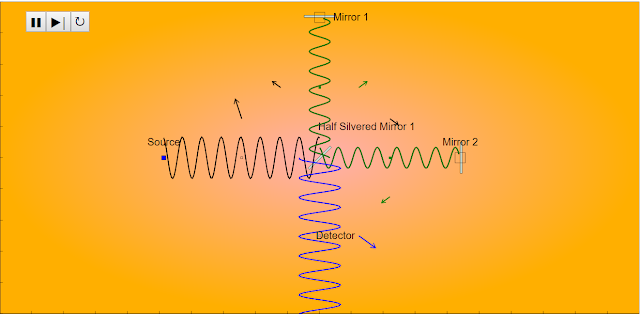

Michelson Interferometer JavaScript Simulation Applet HTML5
Instructions on using the Simulation Applet

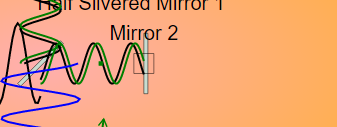

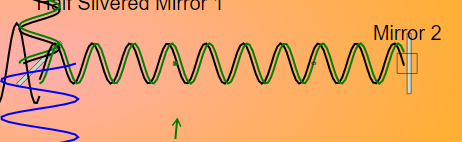

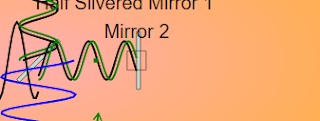

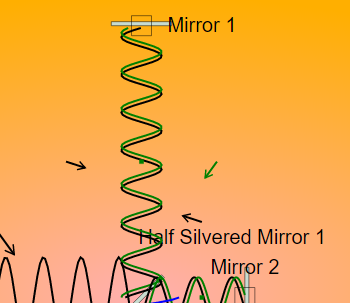

Drag-able Mirrors

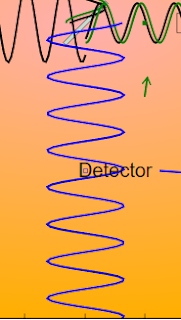

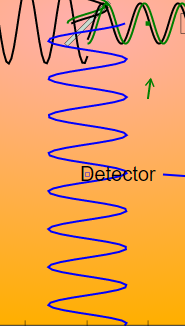

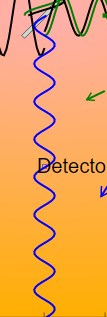

Step 2: Look at the Detector Wave
Drag-able arrows
Research
https://sg.iwant2study.org/ospsg/index.php/606 link |
Exploring the Michelson Interferometer with a JavaScript Simulation Applet
The Michelson Interferometer is one of the most important devices in the history of physics, playing a central role in experiments that revolutionized our understanding of light, space, and time. Today, you can explore how this device works using a powerful Michelson Interferometer Simulation Applet, built in JavaScript and running on HTML5. This interactive tool helps visualize how light interference patterns are formed and how small differences in distance can lead to profound changes in the behavior of light.
What is the Michelson Interferometer?
The Michelson Interferometer was invented by Albert A. Michelson in the late 19th century and is known for its use in the famous Michelson-Morley experiment. The device splits a beam of light into two paths, reflects the beams back, and then recombines them. As the two light beams travel different distances, they interfere with each other when they meet again, creating a pattern of bright and dark fringes.
These interference patterns depend on:
- The wavelength of the light used,
- The difference in the lengths of the two paths traveled by the beams, and
- The angle of the mirrors in the setup.
How the Simulation Works

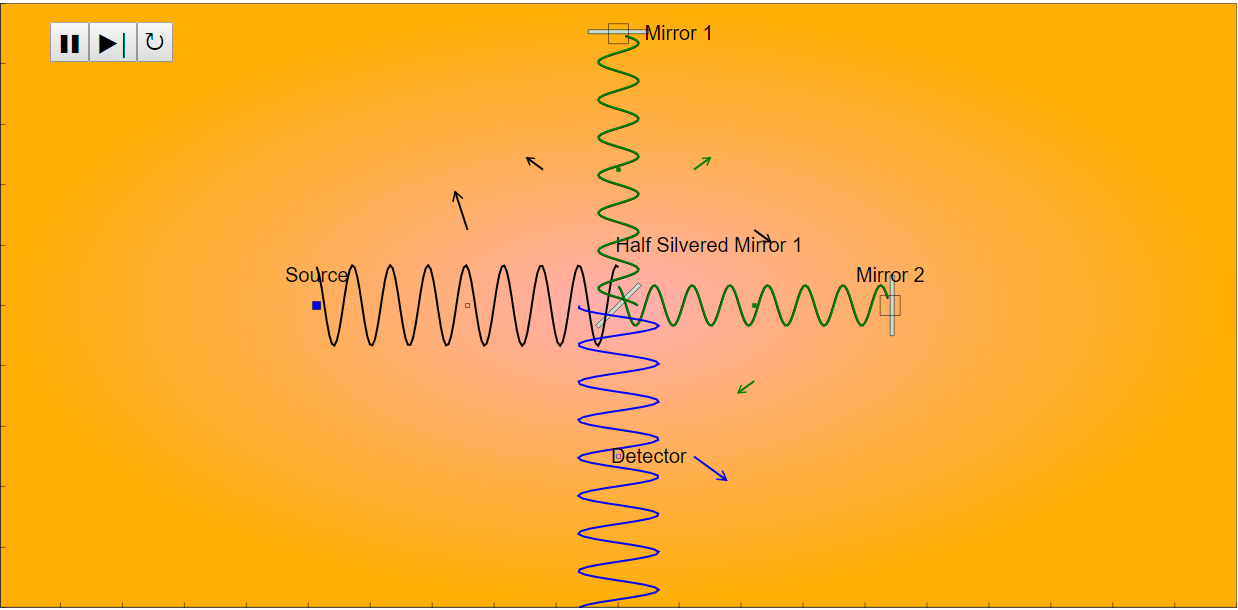

This Michelson Interferometer JavaScript Simulation Applet allows users to interact with a virtual interferometer, replicating real-world experiments in a controlled digital environment.
Key features of the applet include:

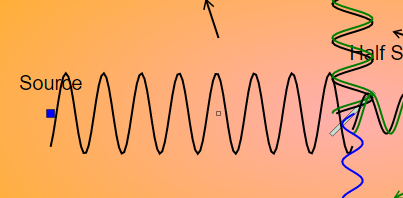

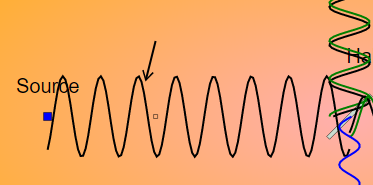

- Light Source: A source of coherent light, which is represented by sinusoidal waves. The light moves from the source and is split by a half-silvered mirror.
- Half-Silvered Mirror: This element splits the light beam into two paths, with half the light passing through and the other half reflecting at a 90-degree angle.

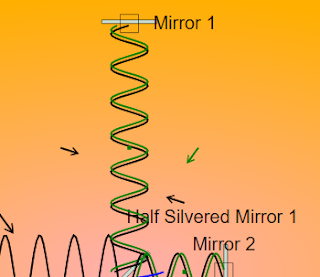

- Mirrors: The two arms of the interferometer reflect light back using two mirrors (Mirror 1 and Mirror 2). These mirrors can be adjusted to change the distance the light travels.
- Detector: The detector captures the recombined light waves, and based on the phase difference between the two beams, an interference pattern is formed.
Interactive Features
The applet offers various controls and parameters that users can adjust in real-time to see how different configurations affect the interference pattern:
- Position of the mirrors: Adjusting the positions of the mirrors allows users to explore how changing the path length of one of the beams affects the resulting interference pattern.
- Wave properties: The applet uses a visual representation of light as waves, making it easy to see how the phase difference between the two beams leads to constructive and destructive interference.
- Real-time animation: The applet can be paused, stepped forward, or reset, allowing users to slow down and analyze specific stages of the interference process.
Exploring Interference Patterns
The key result of the Michelson Interferometer is the interference pattern created at the detector. The pattern is determined by the path difference between the two beams:
- Constructive Interference: When the path difference is an integer multiple of the wavelength, the waves align perfectly, and bright fringes appear on the detector.
- Destructive Interference: When the path difference is an odd multiple of half the wavelength, the waves cancel each other out, creating dark fringes.
By adjusting the mirrors in the applet, users can explore these patterns and see how even small changes in path length can switch between constructive and destructive interference.
Educational Value of the Applet
This applet provides an accessible way for students and educators to explore the concepts of light interference and the functioning of the Michelson Interferometer. It can be particularly useful for:
- Visualizing Interference: Seeing interference in action helps demystify how light behaves in an interferometer.
- Understanding Wave Behavior: By representing light as waves, the applet shows how waves combine and interfere based on their relative phase.
- Experimenting with Variables: The adjustable controls allow users to experiment with different setups, exploring how changes in mirror position or wave properties affect the result.
Applications of the Michelson Interferometer
The Michelson Interferometer is more than just a historical experiment; it has practical applications in many fields of science and engineering, including:
- Metrology: Precision measurement of distances and lengths.
- Astronomy: Measurement of stellar diameters and distances.
- Seismology: Detection of minute shifts in the Earth’s crust.
- Laser Interferometry: The technology behind LIGO, which was used to detect gravitational waves.
Conclusion
The Michelson Interferometer JavaScript Simulation Applet provides a powerful, interactive way to learn about the principles of interference and light waves. By experimenting with mirror positions and observing real-time changes in interference patterns, users can gain a deeper understanding of one of the most significant devices in the history of physics. Whether you’re a student exploring wave interference for the first time or an educator demonstrating the principles of light, this applet is an invaluable tool.
Start exploring today, and experience the power of the Michelson Interferometer in action!
