Working With An Ammeter EJSS Simulation Applet
This simulation is intended to show how the ammeter works across the circuit. Includes:
-Dragable Ammeter and Reading
-Displaying reading besides the cells
-Conclusion Pop-up Box
-Toggling power on/off by touching the switch
-Reset Button
-Full Screen Function by double clicking
Translations
| Code | Language | Translator | Run | |
|---|---|---|---|---|
 |
||||
Credits
Author name; Fremont Teng
Sample Learning Goals
[text]
For Teachers
Working With An Ammeter JavaScript Simulation Applet HTML5
Instructions on how to use the Simulation Applet

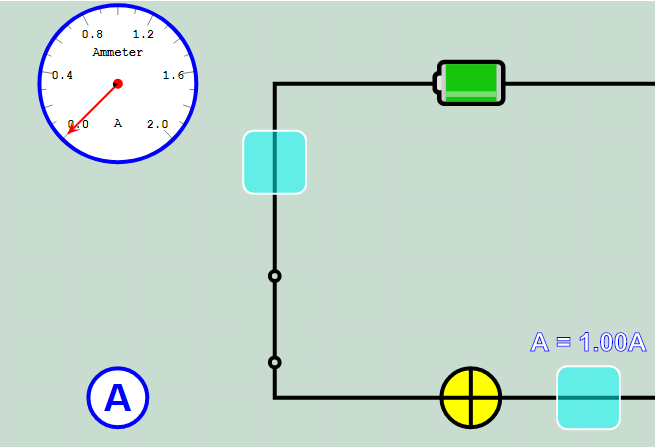

Drag-able Ammeter and Ammeter Reading
(Default position)
Step 1: Look at the ammeter reading.
It gives a default value of 0.0A.
Step 2: Drag the blue ammeter into a cyan cell.
The cyan cell will disappear, as the reading of the current will be placed above the ammeter.
The current across the ammeter also can be checked with the ammeter reader.
Step 3: Check with the ammeter reader.
Step 4: Move the drag-able ammeter away.
The ammeter will return back to it's default position and the reading will become 0.0 A.
However, the reading of the current across that particular cell is stored and remains on the board.
Answering the Questions
To make the answer for the question to appear,
you must place the ammeter at least once per cell.

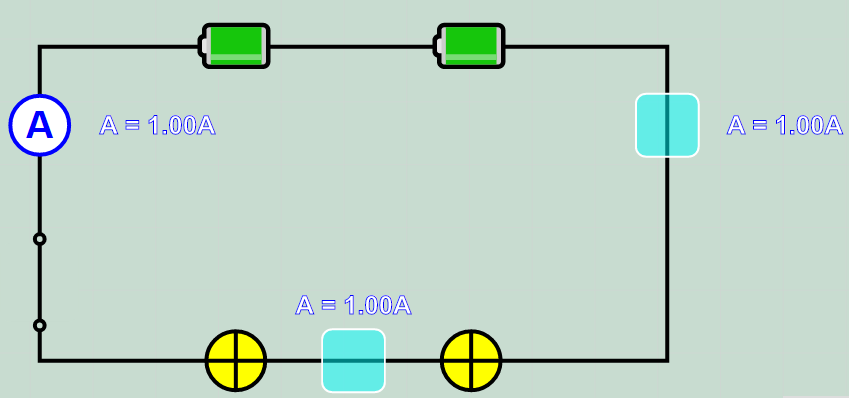

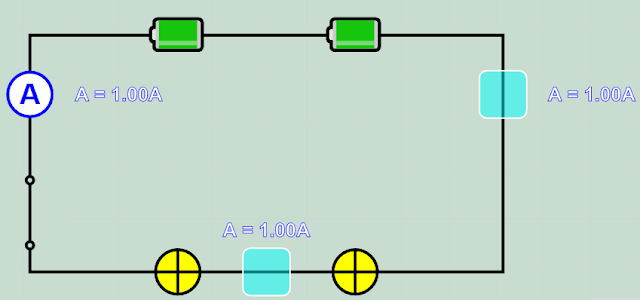

Step 1: Put the ammeter across all three cells at least once
Step 2: Look at the right bottom of the screen.
A conclusion button will appear.
Step 3: Click on the conclusion button.
A blue popup text with a concluding statement will appear in the centre of the circuit.
Reset Button
Clicking on the Reset Button will reset the whole simulation.
Research
[text]
Video
[text]
Version:
Other Resources
[text]
