1. Executive Summary:

This document reviews a project that created an interactive, mobile-responsive simulation of oceanic tides using ChatGPT-3o Mini High. The project highlights the potential of AI to rapidly develop high-fidelity educational tools for complex scientific concepts. The simulation models the gravitational forces of the Moon and their effect on Earth's oceans over a 24-hour cycle.

2. Main Themes and Key Ideas:

• Oceanic Tides as a Complex Geophysical Phenomenon: The document emphasizes that tides are the result of the interplay of gravitational forces from the Moon and Sun, combined with Earth's rotational mechanics. The simulation aims to make this complex interaction more accessible.
• AI-Driven Rapid Development: A central theme is the speed and efficiency with which the simulation was created. The simulation was "conceptualized and implemented within a condensed timeframe of 30 minutes through iterative computational design leveraging ChatGPT-3o Mini High." This showcases the potential of AI to accelerate the development of scientific models.
• Educational Tool: The primary purpose of the simulation is to provide an interactive and visually engaging educational tool for understanding tidal dynamics. The goal is to offer a "quantitatively rigorous visualization of oceanic tides" for students and enthusiasts.
• Mathematical and Physical Foundations: The document outlines the underlying physics and mathematics behind the simulation. This includes:
• Newtonian Gravitational Force: The simulation is based on the gravitational force exerted by the Moon on the Earth. The formula for this force is provided: "where: is the gravitational constant is the Moon’s mass represents the radial separation between the Moon and the mass element on the Earth’s surface"
• Differential Gravitational Interactions: The document notes that tidal bulges arise due to spatial variations in gravitational intensity. "The resultant tidal bulges arise due to spatial variations in gravitational intensity, leading to systematic shifts in oceanic mass distributions."
• Effective Tidal Acceleration: The "effective tidal acceleration" is defined as the net differential force between the local gravitational attraction exerted by the Moon and the corresponding force at the Earth’s center.
• Simulation Features: The simulation includes several key features:
• A 24-hour tidal cycle with a time control slider.
• Interactive controls such as Play/Pause, stepwise increments, and Reset.
• Real-time display of lunar displacement and terrestrial time.
• Enhanced graphical representation with empirical textures of Earth and the Moon.
• Iterative Development Process: The document describes a four-phase development process using AI:

1. Formulation of physical principles and mathematical framework.
2. Integration of interactive UI components (time slider, animation controls).
3. Graphical enhancements (image-mapped planetary textures).
4. Time-synchronized orbital motion.

3. Key Quotes:

• "The dynamic behavior of oceanic tides is a complex geophysical phenomenon resulting from the interplay of gravitational forces exerted by the Moon and the Sun, compounded by the Earth’s rotational mechanics."
• "This discourse introduces an advanced Oceanic Tides Simulation , conceptualized and implemented within a condensed timeframe of 30 minutes through iterative computational design leveraging ChatGPT-3o Mini High."
• "The model replicates the Moon’s orbital motion around the Earth over a 24-hour period."
• "This simulation, developed within 30 minutes through four iterative AI-assisted refinements, demonstrates the efficacy of AI in expediting the conceptualization and deployment of complex scientific models."

4. Potential Extensions:

The document suggests several possible extensions to the simulation:

• "The incorporation of solar tidal effects"
• "Latitudinal tidal variability due to Earth's axial tilt"
• "Simulation of real-world ocean basin geometries"

5. Conclusion:

The Oceanic Tides Simulation project demonstrates the significant potential of AI in creating engaging and informative educational tools for complex scientific topics. The rapid development time highlights the efficiency gains that AI can offer in scientific visualization and education. The simulation provides a solid foundation for further exploration and adaptation, with potential extensions to incorporate additional factors influencing tidal behavior.



Oceanic Tides: A Theoretical and Computational Analysis Study Guide

Quiz

Answer the following questions in 2-3 sentences each.

1. What two celestial bodies primarily influence oceanic tides, and what force do they exert?
2. Explain the concept of "tidal bulges" and how they are formed.
3. What is the significance of the "rotational geocentric reference frame" in the simulation?
4. How does the simulation account for the difference in gravitational pull between the near and far sides of the Earth?
5. What is the purpose of the "magnitude modulation factor" in the mathematical framework of the simulation?
6. Describe two interactive features of the simulation and how they enhance user understanding.
7. What is the time scale of the simulation, and how is time controlled within the model?
8. What is the primary goal of using generative AI (ChatGPT-3o Mini High) in creating the simulation?
9. Briefly outline the four phases of AI-assisted development mentioned in the text.
10. According to the conclusion, what are two potential extensions that could be added to the simulation to enhance its realism?

Quiz Answer Key

1. The Moon and the Sun are the primary influencers of oceanic tides. They exert gravitational forces on the Earth, causing the water to bulge towards and away from these celestial bodies.
2. Tidal bulges are the raised areas of water on opposite sides of the Earth. They form due to the differential gravitational forces exerted by the Moon and the Sun, which are stronger on the side of Earth facing the celestial body and weaker on the opposite side.
3. The "rotational geocentric reference frame" provides a perspective that is fixed on the center of the Earth, allowing the simulation to accurately represent the Earth's rotation and the changing positions of the Moon and Sun relative to the Earth's surface over time.
4. The simulation addresses this difference in gravitational pull by using the effective tidal acceleration formula, which calculates the net differential force between the local gravitational attraction exerted by the Moon and the force at the Earth’s center. This accounts for the stronger pull on the near side and the weaker pull on the far side.
5. The "magnitude modulation factor" is used to artificially exaggerate the size of the tidal bulges in the simulation. This enhancement improves the visual clarity of the tides and allows users to more easily observe and understand their dynamics.
6. Two interactive features are the time control slider, which allows users to observe tidal evolution at any specific hour, and the Play/Pause functionality, which enables users to control the simulation's progression and examine specific moments in time.
7. The simulation models a 24-hour tidal cycle. The time control slider allows users to manipulate the simulated time and observe the corresponding changes in tidal activity.
8. The main goal of using generative AI was to expedite the development of the complex simulation. AI allowed for rapid conceptualization, design, and implementation of the model, significantly reducing the time needed for its creation.
9. The four phases of AI-assisted development are: (1) formulation of the underlying physical principles and mathematical framework, (2) integration of interactive UI components like animation controls and a time slider, (3) graphical enhancements with image-mapped planetary textures, and (4) time-synchronized orbital motion to ensure fidelity to celestial mechanics.
10. Two potential extensions are the incorporation of solar tidal effects and the inclusion of latitudinal tidal variability due to the Earth's axial tilt.

Essay Questions

1. Discuss the role of gravitational forces exerted by the Moon and the Sun in the formation of oceanic tides. How does the simulation model these forces?
2. Explain the mathematical framework used in the simulation to represent the dynamic deformation of the ocean surface. Discuss the significance of each parameter used in the equation.
3. Describe the computational features of the simulation and how they contribute to a better understanding of tidal dynamics.
4. Analyze the impact of generative AI on the development process of the oceanic tides simulation. What are the benefits and limitations of using AI in scientific modeling?
5. How can the oceanic tides simulation be used as an educational tool? Suggest further enhancements to the simulation to make it more effective for teaching and learning.

Glossary of Key Terms

• Tidal Bulges: Elevated areas of water on opposite sides of the Earth caused by the gravitational forces of the Moon and the Sun.
• Gravitational Constant (G): A fundamental physical constant used in calculating gravitational forces. Its approximate value is 6.674 × 10⁻¹¹ N⋅m²/kg².
• Effective Tidal Acceleration: The net differential force experienced at a specific point on Earth due to the gravitational attraction of the Moon, relative to the Earth's center.
• Lunar Angular Displacement: The angle representing the Moon's position relative to a fixed point on Earth, typically expressed in radians.
• Magnitude Modulation Factor: An artificial scaling factor used in the simulation to amplify the visual representation of the oceanic deformation, enhancing clarity.
• 24-Hour Cycle: The period over which the simulation replicates the Moon’s orbital motion around the Earth, corresponding to a single Earth rotation.
• Time Control Slider: An interactive element within the simulation that allows users to adjust the time and observe the corresponding tidal evolution.
• Real-Time Lunar Displacement: The instantaneous angular position of the Moon relative to the Earth, updated continuously within the simulation.
• Empirical Textures: Realistic images or patterns applied to the simulated Earth and Moon to enhance their visual appearance.
• Generative AI: Artificial intelligence capable of generating new content, such as text, images, or in this case, code for a scientific simulation.

A Theoretical and Computational Analysis of Oceanic Tides 🌊🌍🌕

Introduction 🌟🔭🌊

The dynamic behavior of oceanic tides is a complex geophysical phenomenon resulting from the interplay of gravitational forces exerted by the Moon and the Sun, compounded by the Earth’s rotational mechanics. This discourse introduces an advanced Oceanic Tides Simulation, conceptualized and implemented within a condensed timeframe of 30 minutes through iterative computational design leveraging ChatGPT-3o Mini High. The resulting model is a mobile-responsive, interactive framework that meticulously represents time-dependent tidal forces over a 24-hour cycle within a rotational geocentric reference frame. 🌎⚙️📊

https://iwant2study.org/lookangejss/04waves_12generalwaves/oceanicTidalWave/



This exposition elucidates the governing physical principles, fundamental mathematical formalism, and computational methodologies that underlie the simulation's functionality. Additionally, it highlights the role of generative AI in expediting the construction of high-fidelity educational tools. 🚀🤖📚

Physical Foundations of Tidal Dynamics 🌊🌕🌍

Tidal oscillations stem from differential gravitational interactions that vary across the Earth’s surface due to the Moon’s and Sun’s gravitational fields. The resultant tidal bulges arise due to spatial variations in gravitational intensity, leading to systematic shifts in oceanic mass distributions. 🌏⚡💡

1. Gravitational Force Exerted by the Moon 🌑⚖️📏

The Newtonian gravitational force imparted by the Moon on an infinitesimal mass element located on the Earth's surface is expressed as:

where:

• is the gravitational constant

• is the Moon’s mass

• represents the radial separation between the Moon and the mass element on the Earth’s surface

However, due to the spatial non-uniformity of this force, the gravitational pull on the near side of the Earth is marginally stronger than on the far side, inducing the characteristic tidal bulging. 🌊🔄🌎

2. Dynamical Formulation of Tidal Acceleration 📉🌍🔄

The effective tidal acceleration experienced at a specific point on Earth is defined as the net differential force between the local gravitational attraction exerted by the Moon and the corresponding force at the Earth’s center:

where:

• is the Earth's mean radius

• represents the local elevation

• corresponds to the angular displacement relative to the Moon’s orientation

This formulation inherently accounts for the dual bulging phenomenon observed in oceanic tides—one in direct alignment with the Moon and the other on the opposite side due to the equilibrium dynamics of the Earth-Moon system. 🌍🌕🌊

Mathematical Framework of the Simulation 📐📊🌎

To effectively capture the dynamic deformation of the ocean surface, the simulation employs a parametric representation of the tidal bulge:

where:

• is the Earth's reference radius (scaled for visualization purposes)

• signifies the lunar angular displacement in the geocentric frame

• serves as a magnitude modulation factor, artificially accentuating the oceanic deformation for clarity 🌊🔬📏

Additionally, the Moon's motion is formulated as a function of simulated time, spanning a complete 24-hour cycle:

where denotes time in hours within the geocentric frame. 🕰️🌑🌊

Computational Features of the Model 🖥️🛰️📊

1. Simulation of a 24-Hour Tidal Cycle 🔄🌊⏳

• The model replicates the Moon’s orbital motion around the Earth over a 24-hour period.

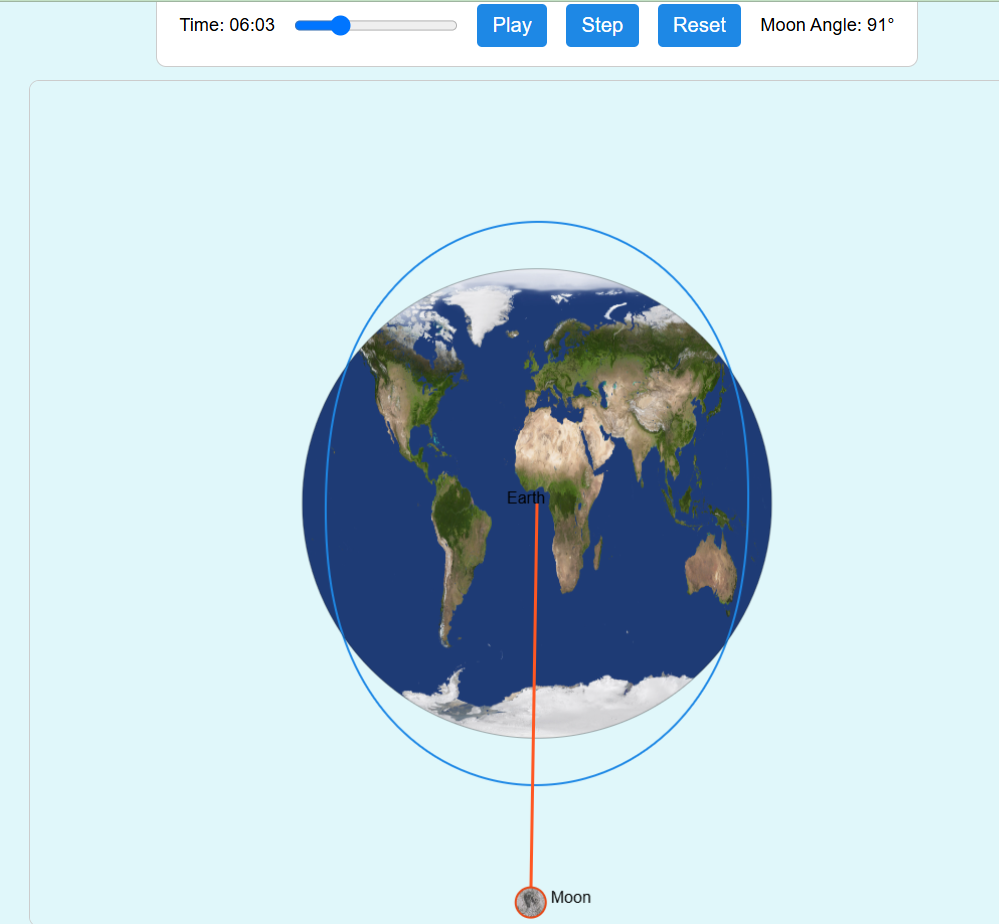

• A time control slider enables users to observe tidal evolution at any specific hour.

  t = 0 hour https://iwant2study.org/lookangejss/04waves_12generalwaves/oceanicTidalWave/

•

• t = 9 hour https://iwant2study.org/lookangejss/04waves_12generalwaves/oceanicTidalWave/




  t = 12 hour https://iwant2study.org/lookangejss/04waves_12generalwaves/oceanicTidalWave/

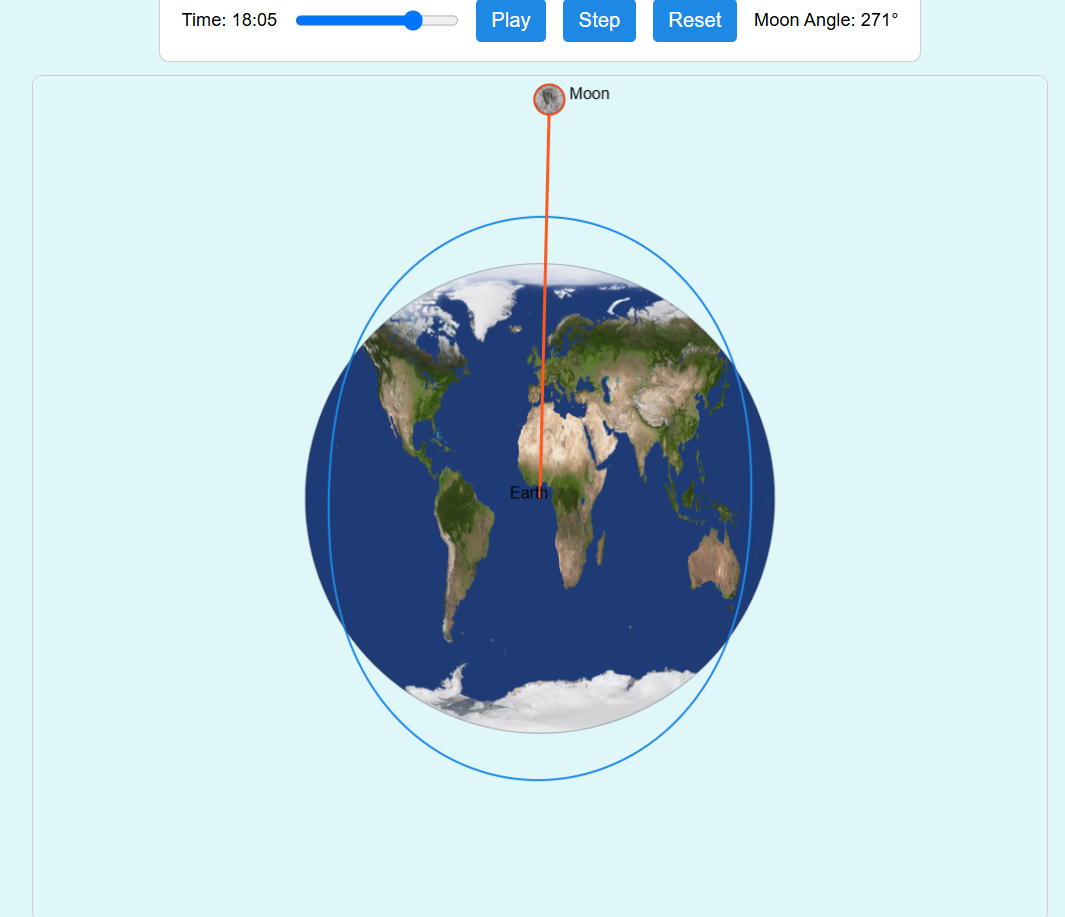

  t = 18 hour https://iwant2study.org/lookangejss/04waves_12generalwaves/oceanicTidalWave/




•

2. Interactivity and Responsiveness 🎮📱🔧

• Users can toggle Play/Pause, advance the system via stepwise increments, and reset the simulation to its initial state.

• The real-time lunar displacement and corresponding terrestrial time are continuously displayed. ⏳🌓📡

3. Enhanced Graphical Representation 🖼️🎨🌍

• Empirical textures of Earth and the Moon enrich the simulation’s visual appeal.

• The expanded simulation domain ensures persistent visibility of the lunar position at all times. 🌓🖥️🌊

Generative AI-Driven Rapid Development of the Simulation 🤖🚀📈

Phase 1: Formulation of the Underlying Physical Principles 🧠📜🛠️

• The first iteration structured the mathematical and computational framework, deriving the necessary governing equations.

Phase 2: Integration of Interactive UI Components 💻🎛️🖱️

• Introduced real-time animation controls, a time slider, and responsive design considerations.

Phase 3: Graphical Enhancements 🎨🌍🖼️

• Implemented image-mapped planetary textures for the Earth and Moon while preserving accurate circular geometric representation.

Phase 4: Time-Synchronized Orbital Motion ⏳🌕🌀

• Adjusted the model to synchronize with a 24-hour cycle, ensuring fidelity to actual celestial mechanics.

Conclusion 🌎🔭📚

This simulation, developed within 30 minutes through four iterative AI-assisted refinements, demonstrates the efficacy of AI in expediting the conceptualization and deployment of complex scientific models. The model provides an educational yet quantitatively rigorous visualization of oceanic tides, incorporating real-time user interactivity and astrophysical accuracy. 🚀💡📊

For educators, researchers, and enthusiasts in planetary sciences, computational physics, or numerical modeling, this simulation offers a robust foundation for further exploration and adaptation. Potential extensions include:

• The incorporation of solar tidal effects

• Latitudinal tidal variability due to Earth's axial tilt

• Simulation of real-world ocean basin geometries 🌍🌞📈

By leveraging AI-driven methodologies, the realm of scientific visualization continues to expand, enabling rapid innovation in physics education and research. 🧠🚀📡

Explore, analyze, and expand the frontiers of geophysical simulation! 🌊🌎🔬



Reference:

https://chatgpt.com/share/67a3686e-ce60-8008-b726-0b75d3700290

http://butikov.faculty.ifmo.ru/Projects/Tides0.html





For Teachers

[SIMU_TEACHER]

Software Requirements

[SIMU_SWREQ]

Translation

[text]

Research

[text]

Video

[text]

Credits

weelookang@gmail.com

Version:

https://weelookang.blogspot.com/2025/02/a-theoretical-and-computational.html

https://weelookang.blogspot.com/2025/02/why-tides-dance-hidden-physics-of.html

https://sg.iwant2study.org/ospsg/index.php/interactive-resources/physics/04-waves/02-general-waves/670-670

Other Resources

https://chatgpt.com/share/67a3686e-ce60-8008-b726-0b75d3700290

https://www.compadre.org/osp/bulletinboard/TDetails.cfm?ViewType=2&TID=5873&CID=143220&#PID147933

 http://butikov.faculty.ifmo.ru/Projects/Tides0.html

Oceanic Tides Simulation FAQ

1. What causes oceanic tides?

Oceanic tides are primarily caused by the gravitational forces exerted by the Moon and, to a lesser extent, the Sun on the Earth's oceans. These forces are not uniform across the Earth's surface, leading to differential gravitational interactions. The side of Earth nearest to the moon experiences a stronger gravitational pull. The inertia of water on the opposite side of Earth results in the dual bulging phenomenon. This causes systematic shifts in oceanic mass distributions, resulting in tidal oscillations.

2. How does the simulation model the Moon's gravitational influence?

The simulation uses Newtonian gravitational force equations to model the Moon's pull on the Earth. It calculates the force exerted by the Moon on infinitesimal mass elements located on the Earth's surface. The model also accounts for the spatial non-uniformity of this force, recognizing that the near side of the Earth experiences a stronger pull, which contributes to the tidal bulge.

3. What is "tidal acceleration" and how is it calculated in the simulation?

Tidal acceleration refers to the net differential force experienced at a specific point on Earth due to the Moon's gravity. The simulation calculates this as the difference between the local gravitational attraction exerted by the Moon and the corresponding force at the Earth’s center. This formulation accounts for the two tidal bulges: one directly aligned with the Moon and another on the opposite side of the Earth.

4. How does the simulation represent the tidal bulge?

The simulation uses a parametric representation of the tidal bulge, incorporating the Earth's reference radius and the lunar angular displacement in the geocentric frame. A magnitude modulation factor is used to exaggerate the oceanic deformation for better visualization, making it easier to observe the tidal changes over time.

5. What are the key interactive features of this oceanic tide simulation?

The simulation offers several interactive features, including:

• A time control slider to observe tidal evolution over a 24-hour cycle.
• Play/Pause functionality, stepwise increment options, and a reset button for controlling the simulation.
• Real-time display of lunar displacement and corresponding terrestrial time.
• Empirical textures of Earth and the Moon for enhanced visual appeal.

6. How was Generative AI used in developing the simulation?

Generative AI, specifically ChatGPT-3o Mini High, was used to rapidly develop the simulation through an iterative design process. The process was split into four phases:

• Formulation of the Underlying Physical Principles: the mathematical and computational framework, deriving the necessary governing equations.
• Integration of Interactive UI Components: Introduced real-time animation controls, a time slider, and responsive design considerations.
• Graphical Enhancements: Implemented image-mapped planetary textures for the Earth and Moon while preserving accurate circular geometric representation.
• Time-Synchronized Orbital Motion: Adjusted the model to synchronize with a 24-hour cycle, ensuring fidelity to actual celestial mechanics.

7. What are the potential extensions or improvements that could be made to the simulation?

Several extensions could enhance the simulation, including:

• Incorporating solar tidal effects in addition to lunar effects.
• Accounting for latitudinal tidal variability due to the Earth's axial tilt.
• Simulating real-world ocean basin geometries for more accurate tidal predictions.

8. What is the purpose of this simulation, and who is the target audience?

The primary purpose of the simulation is to provide an educational and quantitatively rigorous visualization of oceanic tides. It aims to be a useful tool for educators, researchers, and enthusiasts in planetary sciences, computational physics, and numerical modeling. The simulation offers a robust foundation for further exploration and adaptation in physics education and research.
