About

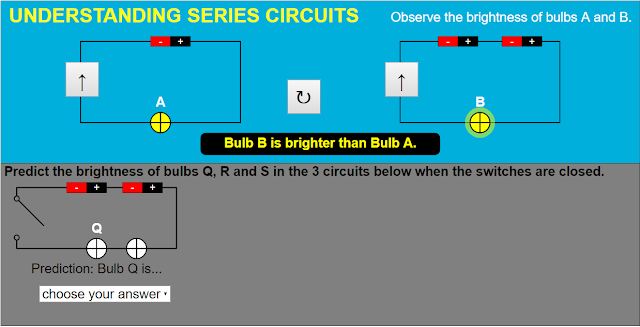

This simulation is designed for students to understand the concept behind series circuits.

Interactions included:

-Full Screen (Double click)

-Blue Panel: Powering on the circuits with switches, Reset Button

-Grey Panel:  Mini drop-down box quiz



Translations

Code	Language		Translator	Run

Credits

Author name; Fremont Teng

Briefing Document: Understanding Series Circuits JavaScript Simulation Applet HTML5

Subject: Review of the "Understanding Series Circuits JavaScript Simulation Applet HTML5" resource from Open Educational Resources / Open Source Physics @ Singapore.

Purpose: To provide an overview of the simulation applet, its functionality, intended use, and related resources.

Key Themes and Information:

• Focus: The primary focus of the simulation is to help students understand the concepts behind series circuits. As stated in the "About" section, "This simulation is designed for students to understand the concept behind series circuits."
• Interactive Elements: The simulation includes interactive elements:
• Switches: Users can power the circuits on and off using switches. The instructions detail how to close the circuit by clicking the switch button until the arrow is parallel to the vertical line.

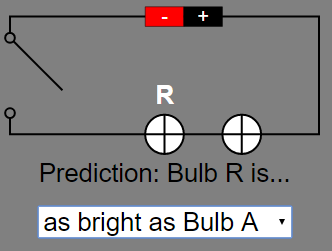

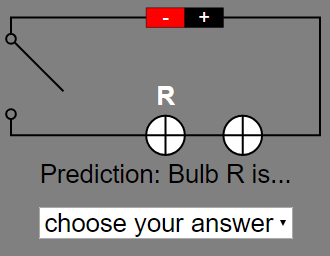

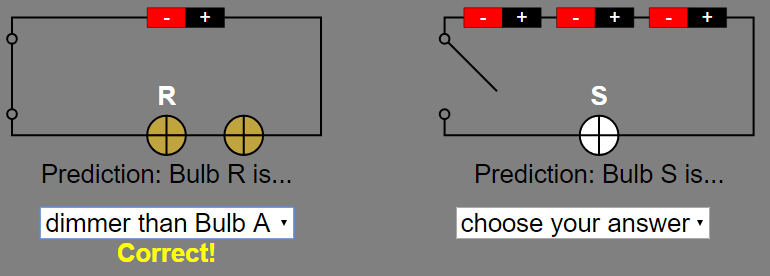

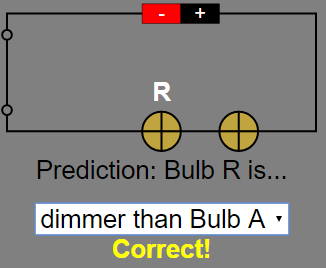

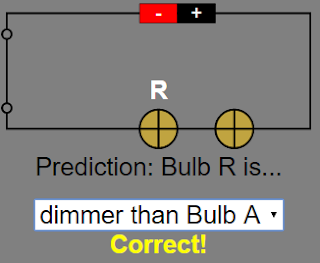

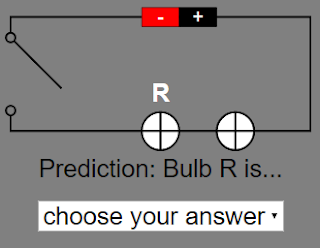

• Quiz: The "Grey Panel" includes a mini drop-down box quiz where students predict the brightness of a bulb in the circuit. "Predict the brightness of the bulb. The bulb with the label above is the indicated bulb. Step 1: Select an answer from the combo box. Selecting the wrong answer will not prompt you to the next question. Selecting the right answer will close the switch and the popup text will appear. The next question will appear on the right of the circuit."
• Reset Button: A reset button is included to allow users to restart the simulation. "Clicking on it will reset the simulation."
• Full Screen: The simulation can be viewed in full screen by double clicking.
• Educational Application: The resource is designed for teachers and students, offering a hands-on approach to learning about series circuits.
• Technical Details: The simulation is built using JavaScript and HTML5, making it embeddable in webpages using an iframe. The provided iframe code is: <iframe width="100%" height="100%" src="https://iwant2study.org/lookangejss/05electricitynmagnetism_18DC/ejss_model_UnderstandingSeriesCircuitsFrem/UnderstandingSeriesCircuitsFrem_Simulation.xhtml " frameborder="0"></iframe>
• Attribution: Fremont Teng is credited as the author of the simulation.
• Related Resources: The page links to numerous other related resources, including simulations on other types of circuits (parallel circuits, voltage in a circuit), electromagnetism, mechanics, math, and interactive learning tools. It appears to be part of a larger collection of Open Educational Resources (OER) for physics.

Key Ideas/Facts:

• The simulation provides a visual and interactive way for students to learn about series circuits.
• It includes a quiz element to test student understanding.
• It is designed to be easy to use with clear instructions for the switch buttons and the grey panel questions.
• The resource is part of a broader OER initiative.
• The simulation is in HTML5 and JavaScript making it cross-platform.

Potential Uses:

• Classroom instruction on series circuits.
• Homework or self-study for students.
• Interactive demonstrations in physics lessons.
• Integration into online learning platforms.

License: The content is licensed under a Creative Commons Attribution-Share Alike 4.0 Singapore License, with specific commercial use terms for the EasyJavaScriptSimulations Library.



Series Circuits: A Study Guide

I. Key Concepts

• Series Circuit: A circuit where components are connected one after another along a single path, so the same current flows through each component.
• Current (I): The flow of electric charge. In a series circuit, the current is the same at all points.
• Voltage (V): The electrical potential difference. In a series circuit, the voltage is divided among the components.
• Resistance (R): Opposition to the flow of current. In a series circuit, the total resistance is the sum of individual resistances.
• Ohm's Law: The relationship between voltage, current, and resistance (V = IR).
• Brightness of a Bulb: Directly related to the power dissipated by the bulb (P = IV = I²R = V²/R). Higher power means a brighter bulb.

II. Simulation Walkthrough & Key Features

1. Accessing the Simulation: The simulation is embedded via an iframe. You can access it using the provided HTML code to embed it in a webpage or navigate directly to the URL if available.
2. Powering the Circuit: Use the switch buttons (Blue Panel) to close the circuit. Closing the circuit allows current to flow, lighting up the bulbs.
3. Grey Panel Quiz: After powering the circuits, a mini quiz appears in the Grey Panel.
4. Answering Quiz Questions: Select the answer from the combo box. Wrong answers will not advance you to the next question.
5. Reset Button: The reset button returns the simulation to its initial state.

III. Formulas and Relationships

• Total Resistance in Series (R_total): R_total = R1 + R2 + R3 + ...
• Current in Series (I): I = V_total / R_total (The same current flows through all components)
• Voltage Drop in Series (V): V = IR (across each component)
• Power Dissipated (P): P = IV = I²R = V²/R

IV. Quiz (Short Answer)

1. What defines a series circuit, and how does it affect the current flow throughout the circuit?
2. In a series circuit with multiple resistors, how is the total resistance calculated?
3. If the voltage of a battery powering a series circuit is known, how is it distributed across each resistor in the circuit?
4. Explain the relationship between power dissipation and brightness of a light bulb.
5. How does increasing the resistance of a single resistor in a series circuit affect the overall current in the circuit? Explain why.
6. Why is the current the same at all points in a series circuit?
7. Describe how to use the simulation's switch buttons to power the circuit.
8. How does the simulation's "Grey Panel" function as a quiz to test one's knowledge?
9. What happens when an incorrect answer is selected in the simulation's quiz?
10. What function does the Reset Button serve in the simulation?

V. Quiz Answer Key

1. A series circuit has components connected along a single path. This means that the current is the same at all points because there's only one path for the charge to flow.
2. The total resistance in a series circuit is the sum of the individual resistances of each resistor.
3. The voltage is divided across each resistor in proportion to its resistance, as dictated by Ohm's Law (V = IR). Higher resistance results in a greater voltage drop.
4. The brightness of a light bulb is directly proportional to the power it dissipates. Higher power means the bulb emits more light and appears brighter.
5. Increasing the resistance of a single resistor in a series circuit increases the overall resistance, which decreases the overall current, according to Ohm's Law.
6. The current is the same at all points in a series circuit because there is only one path for the electrons to flow.
7. Click the switch buttons. When the arrow is parallel to the vertical line of the circuit, it means that the circuit is closed.
8. The Grey Panel provides a mini quiz to test understanding of series circuits.
9. Selecting the wrong answer will not prompt you to the next question.
10. The Reset Button returns the simulation to its initial state.

VI. Essay Questions

1. Discuss how changes in individual resistor values affect the current and voltage drops in a series circuit. Use examples to illustrate your points.
2. Explain the relationship between voltage, current, and resistance in a series circuit, and how Ohm's Law applies to the entire circuit and its individual components.
3. Describe a real-world application of series circuits, and analyze the advantages and disadvantages of using this type of circuit in that application.
4. Analyze the simulation as a learning tool. What aspects of the simulation are most helpful in understanding series circuits, and what improvements could be made?
5. How does the power dissipated by each resistor in a series circuit contribute to the overall energy consumption of the circuit? Explain how the power dissipated is affected by both current and resistance.

VII. Glossary of Key Terms

• Series Circuit: A circuit in which components are connected end-to-end along a single path for current to flow.
• Current (I): The rate of flow of electric charge, measured in amperes (A).
• Voltage (V): The electrical potential difference between two points in a circuit, measured in volts (V).
• Resistance (R): The opposition to the flow of electric current, measured in ohms (Ω).
• Ohm's Law: The relationship between voltage, current, and resistance: V = IR.
• Power (P): The rate at which electrical energy is transferred in a circuit, measured in watts (W).

Sample Learning Goals

[text]

For Teachers

Understanding Series Circuits JavaScript Simulation Applet HTML5

Instructions to using Simulation Applet

Switch Buttons

Grey Panel Appearance

Answering Grey Panel Questions

Reset Button

Research

[text]

Video

[text]

 Version:

Other Resources

[text]

AQ About Understanding Series Circuits Simulation

• What is the purpose of the "Understanding Series Circuits" simulation? The simulation is designed to help students grasp the fundamental concepts of series circuits. It allows users to interact with a virtual circuit and observe its behavior.
• How do I use the switches in the simulation? The simulation has switch buttons. Clicking on a switch button makes an arrow parallel to the vertical line of the circuit, closing the circuit. This allows current to flow and illuminates the bulb in the circuit, triggering a popup text.
• What is the "Grey Panel" and how does it work? The Grey Panel appears after you power both circuits on. This panel presents a mini quiz where you predict the brightness of a labeled bulb in the circuit. You must correctly select the brightness level from a combo box to proceed to the next question, which will appear on the right of the circuit.
• How do I reset the simulation? The simulation includes a "Reset" button. Clicking this button will return the simulation to its initial state, allowing you to start over.
• What can I learn from this simulation about series circuits? By interacting with the simulation, students can learn how components in a series circuit affect the flow of current and the brightness of bulbs. They can also test their understanding through the interactive quiz.
• Is this simulation available in other languages? The resource mentions "Translations," suggesting that the simulation may be available in multiple languages. The specific languages and how to access them are not detailed, but this feature appears to be present.
• Where can I find more related simulations or resources? The page includes links to many related resources, including simulations on other types of circuits, electromagnetism, mechanics, math, and even virtual labs related to biology.
• Can I embed this simulation in my own webpage? Yes, the source provides an <iframe> code snippet that allows you to embed the "Understanding Series Circuits" simulation into a webpage.
