Author name; Fremont Teng

Briefing Document: Types of Circuits JavaScript Simulation Applet HTML5

1. Introduction

This document reviews the "Types of Circuits JavaScript Simulation Applet HTML5" resource, an interactive simulation developed by Fremont Teng and hosted on the Open Educational Resources / Open Source Physics @ Singapore platform. This simulation is designed as a step-by-step tool for learning about basic electrical circuits, specifically DC circuits. The simulation utilizes HTML5 and JavaScript for accessibility across different devices.

2. Main Themes and Functionality

• Interactive Circuit Exploration: The core theme of this applet is hands-on exploration of a simple DC circuit. Users can manipulate components, observe their effects, and gain a concrete understanding of circuit behavior.
• Step-by-Step Learning: The simulation guides users through a sequential process.
• Switch Control: The applet allows users to interact with a switch in two ways:
• Button Control: Clicking a button labeled "Switch" toggles the circuit on and off. The button's text changes to reflect the open or closed state of the switch.
• "Click on the switch Button. The switch will close, and the button will display the option to 'Open' instead. Clicking back the switch button will return it back to it's default state."
• Direct Switch Manipulation: Users can also directly click on the visual representation of the switch to toggle its state.
• "Clicking on the switch itself also allows you to toggle the switch open/close."
• Bulb Functionality:Bulb States: The bulbs in the simulation can have three visual states:
• Lit (Yellow): When the circuit is closed and power is flowing.
• Unlit (White): When the circuit is open or the bulb is not connected.
• Blown (Grey): Indicates the bulb has been intentionally "blown" by the user.
• "Blow" Button: The applet includes a "blow button" which, when clicked, simulates a bulb being damaged and turning gray.
• "Click on the blow button. Notice that the bulb will now turn grey. This indicates that the bulb is blown."

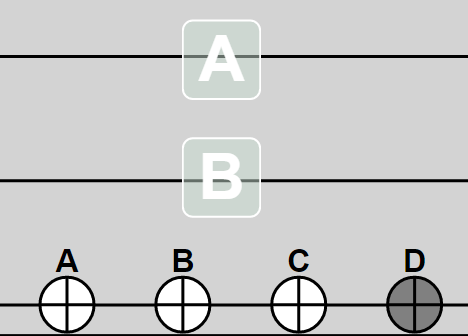

• Drag and Drop Bulbs: After a bulb is blown, the applet enables the ability to drag bulbs from a 'supply' to the correct matching location in the circuit
• "Only the bulb of the same letter can be dragged to the respective cells."
• Reset Functionality: A "Reset Button" is included to revert the simulation back to its initial state at any point.
• "This button resets the whole simulation back to Step 1 with a simple click."

3. Pedagogical Approach

• Guided Exploration: The step-by-step nature of the simulation encourages structured learning. Users are not immediately presented with a complex circuit; they build it incrementally and observe results.
• Hands-on Interaction: The combination of switch controls, the "blow" feature, and drag-and-drop bulbs promotes active engagement with the learning material, rather than passive observation.
• Visual Feedback: Clear visual cues (bulb colors, button state) provide immediate feedback, allowing users to directly relate actions with outcomes.

4. Target Audience

• The simulation is likely geared towards beginners learning about basic electrical circuits, likely in a middle or early high-school physics context.
• The "For Teachers" section also suggests that the applet is intended to be used in a classroom setting as an educational resource.

5. Key Ideas and Facts

• Basic DC Circuit Components: The simulation showcases the basic components of a simple DC circuit: a power source (cell), conductive paths and a load (light bulb).
• Switch Function: The simulation allows the user to control the circuit using a switch, demonstrating its role in completing or breaking the circuit path.
• Consequences of Broken Circuit: The "blown bulb" functionality highlights that if the path is broken, the circuit will not function correctly.
• Matching Components The feature requiring users to drag the correct bulb to the circuit highlights the importance of correct wiring in an electrical circuit.

6. Related Resources

The webpage also lists a large number of related interactive simulations and educational resources covering a wide range of physics and math topics, highlighting the broader educational focus of the Open Educational Resources / Open Source Physics @ Singapore platform. These resources range from mechanics and electromagnetism to math games and AI-powered tools, demonstrating an interdisciplinary approach to learning. There also seems to be a strong emphasis on the use of simulations for education, with many references to workshops and training sessions for teachers.

7. Conclusion

The "Types of Circuits JavaScript Simulation Applet HTML5" is a valuable interactive resource for introductory DC circuit learning. Its clear interface, guided exploration, and hands-on elements provide an engaging and effective learning experience. The broader context of related simulations on the platform suggests a comprehensive, simulation-based approach to STEM education.



Types of Circuits Study Guide

Quiz

1. How can you close a switch in the simulation? You can close a switch by either clicking the switch button which will toggle between "Open" and "Close", or by clicking directly on the switch itself. Both actions will allow you to toggle the switch's state.
2. What happens to the bulb in the simulation when you click the "blow" button? Clicking the "blow" button causes the bulb to turn grey, indicating that it is blown. Unlike normal operation where a bulb is either white (off) or yellow (on), a grey bulb means it is broken and will not light.
3. What action is available only after step two, regarding the bulbs? Only after step two, which involves blowing the bulb, does the simulation allow you to drag the bulbs. This action enables the user to move the bulbs around and connect them to the correct cells.
4. How do you know when you've placed the correct bulb in a cell? When the correct bulb is dragged into its respective cell, the cell text will disappear, indicating a successful connection. If you remove the bulb, the text will reappear.
5. What does the reset button do in the simulation? The reset button restarts the simulation to its initial state, returning the user to step one. This action clears all previous actions, including the status of the blown bulb and the placement of draggable bulbs.
6. What are the two ways a bulb can be represented in the simulation? A bulb in the simulation can be represented as either white, indicating it is not lit, or yellow, which indicates it is lit and working properly. However, a blown bulb is shown as grey.
7. Is this a simulation of an AC or DC circuit? The simulation specifically focuses on DC circuits, which stands for Direct Current circuits. This is noted in the title and context within the page.
8. What is the purpose of the drag-able bulbs in the simulation? The drag-able bulbs allow the user to interact with the circuit by properly placing the bulbs in the correct cells, so the simulation behaves in the way it would in real life. This interaction can happen only after the blow button has been used.
9. Can the simulation be embedded on a webpage? How? Yes, the simulation can be embedded on a webpage by using the provided iframe code. This allows the simulation to be displayed within another webpage's structure.
10. What happens when you drag a bulb away from the correct position? Dragging a bulb away from its correct cell causes the cell text to reappear, indicating that the connection is broken. The bulb returns to its original default position.

Quiz Answer Key

1. You can close a switch by either clicking the switch button which will toggle between "Open" and "Close", or by clicking directly on the switch itself. Both actions will allow you to toggle the switch's state.
2. Clicking the "blow" button causes the bulb to turn grey, indicating that it is blown. Unlike normal operation where a bulb is either white (off) or yellow (on), a grey bulb means it is broken and will not light.
3. Only after step two, which involves blowing the bulb, does the simulation allow you to drag the bulbs. This action enables the user to move the bulbs around and connect them to the correct cells.
4. When the correct bulb is dragged into its respective cell, the cell text will disappear, indicating a successful connection. If you remove the bulb, the text will reappear.
5. The reset button restarts the simulation to its initial state, returning the user to step one. This action clears all previous actions, including the status of the blown bulb and the placement of draggable bulbs.
6. A bulb in the simulation can be represented as either white, indicating it is not lit, or yellow, which indicates it is lit and working properly. However, a blown bulb is shown as grey.
7. The simulation specifically focuses on DC circuits, which stands for Direct Current circuits. This is noted in the title and context within the page.
8. The drag-able bulbs allow the user to interact with the circuit by properly placing the bulbs in the correct cells, so the simulation behaves in the way it would in real life. This interaction can happen only after the blow button has been used.
9. Yes, the simulation can be embedded on a webpage by using the provided iframe code. This allows the simulation to be displayed within another webpage's structure.
10. Dragging a bulb away from its correct cell causes the cell text to reappear, indicating that the connection is broken. The bulb returns to its original default position.

Essay Questions

1. Discuss the pedagogical value of using simulations like the "Types of Circuits" applet in teaching basic concepts of electrical circuits. Consider both the benefits and potential limitations.
2. How does the "Types of Circuits" simulation use step-by-step instructions and interactivity to enhance user understanding? Explain the different stages of interaction and their purpose.
3. Analyze how the "blow" feature and drag-and-drop functionality in the simulation contribute to a better comprehension of how circuits operate, and identify the practical implications.
4. Compare and contrast the simulation’s approach to teaching electrical circuits with a traditional, textbook-based method. What are the unique aspects of using a simulation?
5. Reflecting on the design of the "Types of Circuits" applet, what modifications or additional features could improve its effectiveness as a learning tool? Justify your recommendations.

Glossary

• DC Circuit: A direct current circuit where the electrical charge flows consistently in one direction.
• Switch: A device used to open or close an electrical circuit, controlling the flow of current.
• Simulation: A computer program that models a real-world process or system, often used for educational purposes.
• Bulb: In this context, it's a visual representation of a lightbulb in the circuit that illustrates the flow of electricity.
• Reset Button: A control in the simulation to return the system to its initial state.
• Blow Button: A feature in the simulation that simulates the result of overcurrent through a lightbulb which causes it to fail.
• Drag-able Bulbs: Bulbs in the simulation that can be moved from one location to another to complete a circuit.
• Iframe: An HTML element that embeds another HTML document within the current document, such as the simulation in this case.

Sample Learning Goals

[text]

For Teachers

Switches

Blow Button

Drag-able Bulbs

Reset Button

Research

[text]

Video

[text]

 Version:

Other Resources

[text]

FAQ

1. What is the purpose of the "Types of Circuits JavaScript Simulation Applet HTML5"?
2. This simulation applet is designed as an interactive learning tool to demonstrate the behavior of basic electrical circuits, specifically DC circuits. It allows users to manipulate circuit components like switches and bulbs to observe how they function and to learn the differences between open and closed circuits, along with what happens to a bulb when it is blown. The applet focuses on step-by-step learning where the user progresses through defined actions and receives visual feedback.
3. How can users interact with the switches in the simulation?
4. The simulation provides two methods for operating switches. First, there is a designated switch "Button" which toggles the switch’s state (open or closed) with a click, displaying the reverse action on the button itself. Second, users can click directly on the switch itself within the circuit to open or close it. Both methods achieve the same outcome - either completing or breaking the circuit.
5. What does the "Blow Button" do in the simulation?
6. The "Blow Button" simulates the effect of a bulb burning out or "blowing." Upon clicking the button, a selected bulb in the simulation will change from either illuminated (yellow) or non-illuminated (white) to a grey color. This visual cue indicates that the bulb is no longer functional, unlike the working bulbs.
7. How do draggable bulbs function, and what is their purpose in the simulation?
8. After using the "Blow Button", the simulation unlocks the ability to drag the bulbs. Each bulb is labeled with a letter, and can only be dragged to a specific cell that corresponds with the same letter. Correct placement causes the cell's text to disappear indicating a proper connection has been made. Dragging a bulb away will return the bulb to it's starting position and the cell’s text will reappear. This interaction is intended to provide a hands-on learning experience of proper circuit connectivity.
9. What does the "Reset Button" do?
10. The "Reset Button" restores the simulation to its initial state, effectively restarting the exercise from Step 1. This action resets all switches, bulb states, and the draggable bulb locations, allowing the user to begin the circuit activity fresh.
11. What other interactive resources are available on this platform?
12. This platform contains a vast array of simulations that span multiple subject areas, including Physics, Mathematics, and even some Biology and Chemistry. These resources include simulations focusing on topics such as momentum, collisions, waves, electromagnetism, radioactive decay, mechanics, optics, and many more. This shows that the platform is a broad resource for interactive science and mathematics learning.
13. What types of models are used within this collection of simulations?

The resources provided use various modeling techniques within the simulation. These include JavaScript HTML5 applets, 3D WebGL models, and others. This suggests the platform uses a mix of code based simulation and visualization to create the learning experience, ranging from simple 2D to complex 3D models that can run in a browser without plugins.

1. Is the use of these simulations strictly for individual study?
2. While the simulations are useful for individual study, they are explicitly designed for both teaching and learning. The text mentions "Sample Learning Goals" and a "For Teachers" guide, indicating that the platform intends its simulations to be valuable resources for teachers to incorporate in the classroom. The platform supports interactive learning, and can be used by students or as a teaching aid to engage students in science concepts.
