In special relativity, a light cone (or null cone) is the surface describing the temporal evolution of a flash of light in Minkowski spacetime. This can be visualized in 3-space if the two horizontal axes are chosen to be spatial dimensions, while the vertical axis is time.
Image from wiki: http://en.wikipedia.org/wiki/Light_cone
[img]http://upload.wikimedia.org/wikipedia/commons/thumb/1/16/World_line.svg/300px-World_line.svg.png[/img]

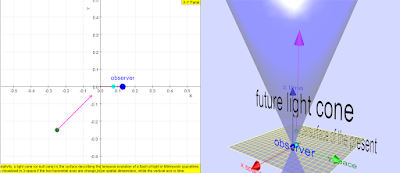

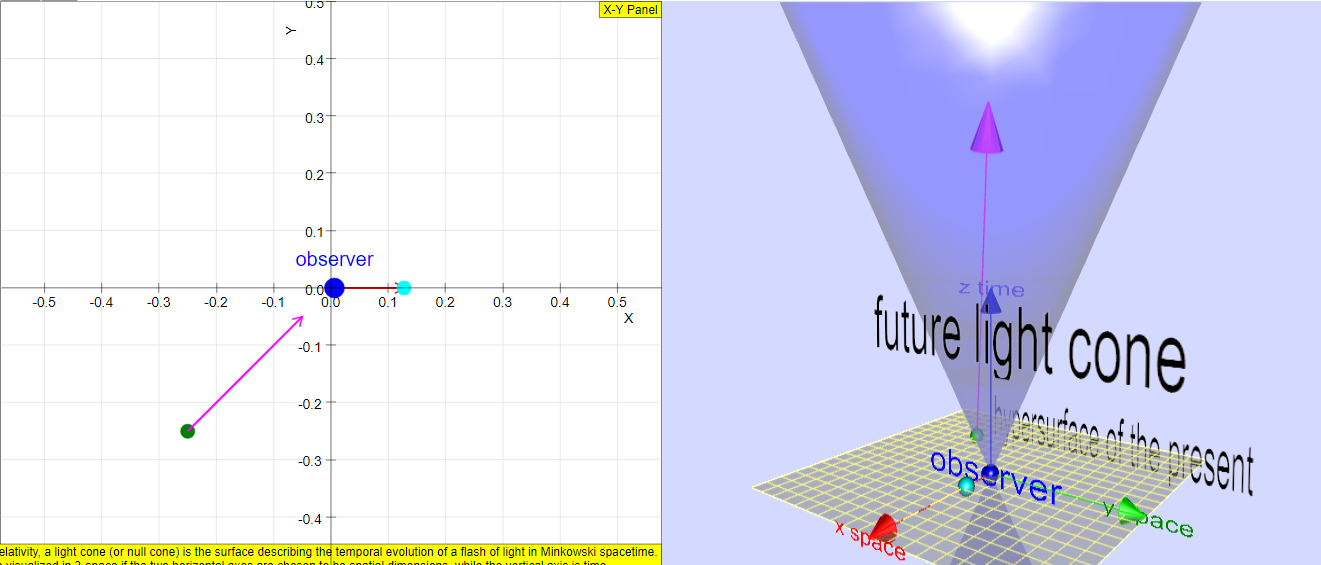

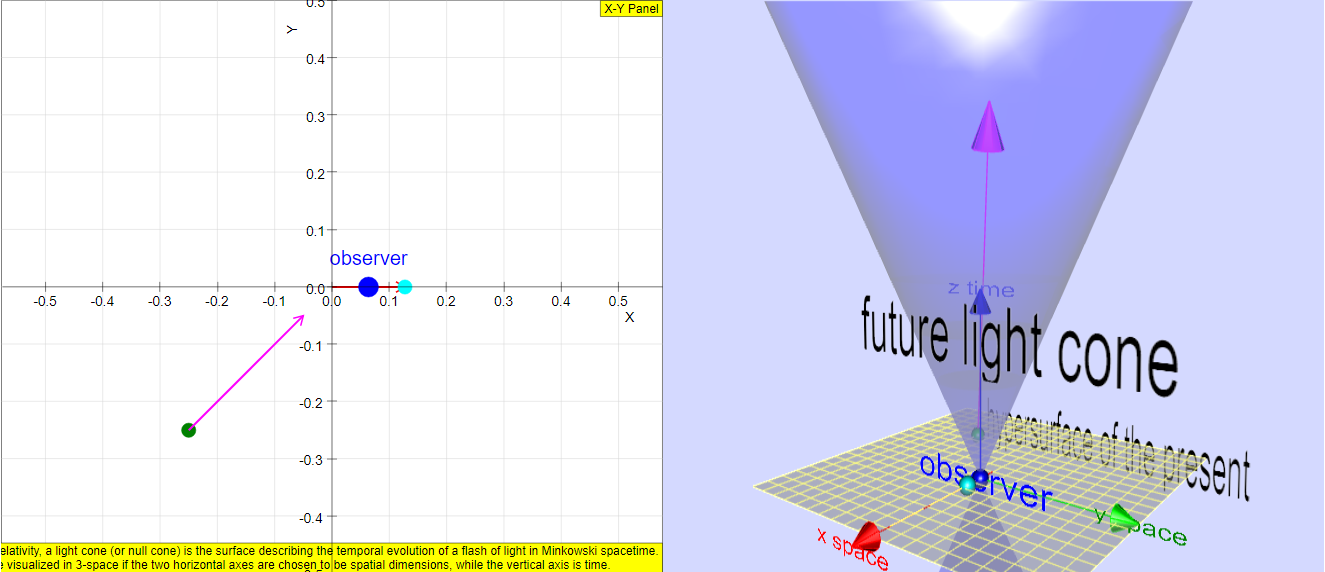

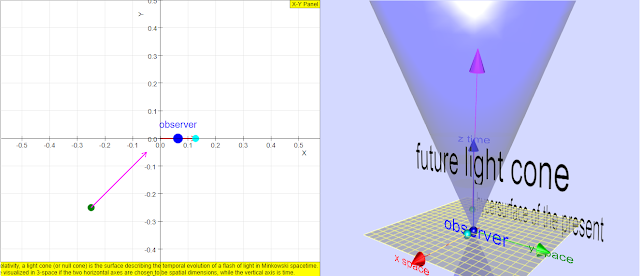

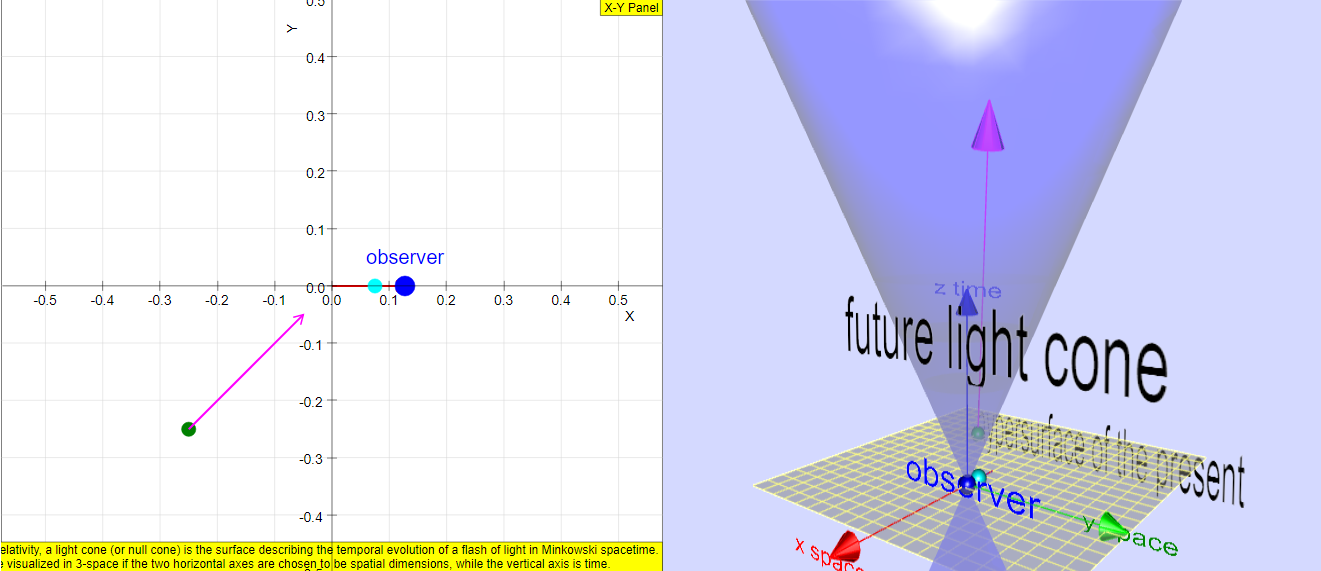

The following simulation was created to help you visualize the light cone (for observer moving with blue dot at the left X-Y panel). Events from three observers are drawed with blue, green and cyan traces.
Translations
Code | Language | Translator | Run | |
---|---|---|---|---|
![]() |
Credits
Fu-Kwun Hwang - Dept. of Physics, National Taiwan Normal Univ.; Fremont Teng; Loo Kang Wee
⏳
1. Main Theme: Visualizing Light Cones in Special Relativity
The primary focus of this resource is to provide an interactive simulation that helps users understand the concept of a light cone within the framework of special relativity. The introductory text clearly states:
"In special relativity, a light cone (or null cone) is the surface describing the temporal evolution of a flash of light in Minkowski spacetime. This can be visualized in 3-space if the two horizontal axes are chosen to be spatial dimensions, while the vertical axis is time."
This highlights the core idea that the simulation aims to bridge the abstract concept of spacetime in special relativity with a visual representation. By using a 3D visualization where two axes represent space and one represents time, the simulation allows users to grasp how a flash of light propagates through spacetime.
2. Key Concepts and Functionality:
- Minkowski Spacetime: The simulation operates within the context of Minkowski spacetime, which is the mathematical framework of space and time used in special relativity.
- Temporal Evolution of Light: The light cone is defined as the "surface describing the temporal evolution of a flash of light." The simulation visually demonstrates how this flash expands over time.
- Observer Dependence: A crucial aspect of special relativity is the dependence of observations on the observer's frame of reference. The simulation explicitly addresses this by allowing users to observe the light cone "for observer moving with blue dot at the left X-Y panel."
- Multiple Observers: The simulation enhances the understanding of relative perspectives by displaying events from the viewpoint of "three observers" represented by blue, green, and cyan traces. This allows for a direct visual comparison of how different observers perceive the same events in spacetime.
- Interactive Manipulation: The simulation offers several interactive features designed to facilitate learning and exploration:
- Draggable Particles: Users can "drag the observer (blue) and cyan particles to anywhere on the hypersurface of the present" using their 2D representations on the graph. This allows for dynamic changes in the observer's motion and the position of events.
- The instructions explicitly mention that by dragging these particles, users can "notice how the entire cone shift along the plane, and watch the difference as you play the simulation." This emphasizes the ability to visualize the impact of relative motion on the light cone.
- (Default) Dragging the Observer Particle: Focuses on the effect of the observer's movement.
- (Dragging both Particles): Encourages observation of the interplay between observer and event positions.
- Toggling Full Screen: This provides a more immersive viewing experience for better visualization.
- Play/Pause and Reset Buttons: These standard controls allow users to manage the simulation's progression and start over as needed for repeated observation and learning.
3. Educational Value:
The resource is explicitly categorized under "Open Educational Resources" and "Interactive Resources," highlighting its pedagogical intent. The inclusion of "Sample Learning Goals" (though the specific text is not provided in the excerpt) further reinforces this. The "For Teachers" section indicates that the resource is designed to be used in educational settings.
The interactive nature of the simulation is a key element of its educational value. By allowing students to manipulate the observer and event particles, they can actively engage with the concepts of light cones and special relativity, leading to a more intuitive understanding. The ability to observe events from multiple perspectives is particularly valuable in grasping the relativity of simultaneity and the structure of spacetime.
4. Technical Aspects:
The simulation is a "JavaScript Simulation Applet HTML5," indicating that it is web-based and should be accessible through modern web browsers without the need for additional plugins. The provision of an embed code (<iframe width="100%" height="100%" src="https://iwant2study.org/lookangejss/06QuantumPhysics/ejss_model_lightcone/lightcone_Simulation.xhtml " frameborder="0"></iframe>) allows educators to easily integrate the simulation into their own online learning platforms or web pages.
The mention of "EasyJavaScriptSimulations Library" and its licensing terms suggests the underlying framework used to develop the simulation.
5. Connections to Other Resources:
The webpage lists a large number of other physics and mathematics simulations available on the platform. This suggests that the Light Cone Simulator is part of a broader collection of interactive learning tools covering various topics. The presence of tags like "Quantum Physics" and the location within the "06QuantumPhysics" directory hint at its potential connection to further explorations of relativistic concepts in quantum physics, although the primary focus here is special relativity.
6. Credits and Translations:
The simulation is credited to "Fu-Kwun Hwang, Fremont Teng, Loo Kang Wee," acknowledging the developers. The "Translations" section suggests that the resource may be available in multiple languages, increasing its accessibility for a wider audience.
7. Potential Research Applications:
While primarily educational, the "Research" section (though the specific text is not provided) indicates a potential link to or basis in research activities. The simulation could be used as a tool for visualizing and understanding theoretical concepts in relativity.
In Conclusion:
The Light Cone Simulator JavaScript Simulation Applet HTML5 appears to be a valuable open educational resource for teaching and learning about light cones and special relativity. Its interactive features, visualization of multiple observers, and web-based accessibility make it a powerful tool for students and educators seeking a more intuitive understanding of these complex concepts. The context within a larger collection of physics simulations further enhances its potential for integrated learning experiences.
Light Cone Simulator Study Guide
Key Concepts:
- Special Relativity: Einstein's theory that space and time are relative and intertwined, forming a four-dimensional continuum called spacetime.
- Minkowski Spacetime: The mathematical framework of special relativity, representing spacetime as a flat, four-dimensional space with three spatial dimensions and one time dimension.
- Light Cone (Null Cone): A surface in Minkowski spacetime representing the paths that a flash of light, emanating from a single point in space and time, would take as it propagates outward. It separates spacetime into regions that can be causally connected by light signals (inside the cone) and those that cannot (outside the cone).
- Temporal Evolution: The change of an object or system over time.
- Spatial Dimensions: The dimensions that define the extent of an object in space (e.g., length, width, height, or in this simulation, two horizontal axes).
- Time Dimension: The dimension that specifies when an event occurs (represented by the vertical axis in the simulation).
- Observer: A frame of reference from which events are observed and measured. The simulation depicts observers with different world lines.
- Event: A specific occurrence at a particular point in space and time.
- World Line: The path that an object traces through spacetime. In the simulation, the traces of events from different observers represent their world lines relative to the depicted light cone.
- Hypersurface of the Present: For a given observer, this is a 3D spatial slice of spacetime representing all the events that the observer considers to be happening "now." In the simulation, the draggable particles are on this surface.
- Causal Connection: The ability of one event to affect another. Events inside the future light cone of a point can be causally affected by it, and events inside the past light cone can causally affect it. Events outside the light cone cannot have a causal relationship mediated by light signals.
Short Answer Quiz:
- In the context of special relativity, what is a light cone (or null cone)? Describe its fundamental purpose in Minkowski spacetime.
- Explain how the Light Cone Simulator visualizes the concept of a light cone. What do the horizontal and vertical axes typically represent in this visualization?
- According to the description, what is the significance of the blue dot in the left X-Y panel of the simulation? What does it represent?
- What do the blue, green, and cyan traces in the simulation represent? How do these relate to the concept of an observer?
- Explain the function of the "draggable particles" in the Light Cone Simulator. On what surface are these particles located, and what does this signify?
- How does dragging the observer particle (blue) in the simulation affect the light cone and the traces of events from other observers?
- What does it mean for two events to be causally connected within the framework of a light cone? Which region of the light cone represents causally connected events?
- Briefly describe what a "world line" represents in the context of spacetime and how it is visualized in the Light Cone Simulator.
- What is the "hypersurface of the present" for an observer? How is this concept relevant to the draggable particles in the simulation?
- What is the purpose of the Play/Pause and Reset buttons in the simulation? How can these features aid in understanding the light cone concept?
Answer Key:
- A light cone (or null cone) in special relativity is the surface describing the temporal evolution of a flash of light in Minkowski spacetime. Its fundamental purpose is to define the boundaries of causal influence for an event, separating regions of spacetime that are causally connected by light from those that are not.
- The Light Cone Simulator visualizes the light cone by representing two spatial dimensions on the horizontal axes (X-Y panel) and the time dimension on the vertical axis. The expanding cone shape illustrates how light propagates outward from an event through spacetime.
- The blue dot in the left X-Y panel represents the observer's current position in the two spatial dimensions at a specific moment in time. This observer serves as the reference frame for visualizing the light cone and other events.
- The blue, green, and cyan traces represent the world lines of events as observed by three different observers, including the one represented by the blue dot. These traces show the path of these events through spacetime from each observer's perspective.
- The draggable (blue and cyan) particles are located on the hypersurface of the present for the observer represented by the blue dot. This signifies events that are occurring simultaneously with the observer's "now" in their frame of reference.
- Dragging the observer particle shifts the entire light cone along the spatial plane, demonstrating how the region of past and future events causally connected to the observer changes with the observer's position in space. The traces of other observers also shift relative to this new light cone.
- Two events are causally connected if a signal (traveling at or below the speed of light) can pass from one to the other. Events inside the future light cone can be affected by the central event, and events inside the past light cone can affect it.
- A world line is the path an object (or event as observed by an observer) traces through spacetime. In the simulator, the colored traces depict the world lines of events as experienced by different observers in relation to the light cone.
- The hypersurface of the present for an observer is the set of all events that are simultaneous in that observer's frame of reference. The draggable particles in the simulation are constrained to this surface for the primary (blue) observer.
- The Play/Pause button allows users to start and stop the temporal evolution of the light cone and the events, while the Reset button returns the simulation to its initial state. These features enable careful observation and repeated analysis of the concepts being visualized.
Essay Format Questions:
- Discuss the significance of the light cone concept in understanding causality within the framework of special relativity. How does the light cone define the limits of cause and effect between events?
- Explain how the Light Cone Simulator helps to visualize the abstract concepts of Minkowski spacetime and the temporal evolution of light. What are the key features of the simulation that contribute to this visualization?
- Consider the role of the observer in the Light Cone Simulator. How does changing the observer's position affect the representation of the light cone and the world lines of other events? What does this illustrate about the relativity of simultaneity?
- Describe the relationship between the hypersurface of the present and the light cone. How does the simulation allow you to manipulate events on this hypersurface, and what does this tell us about the observer's perspective of "now"?
- Beyond the visualization provided, discuss the broader implications of the light cone concept in physics, such as its role in understanding black holes or the propagation of information in the universe.
Glossary of Key Terms:
- Causality: The principle that one event can cause another event. In special relativity, causality is constrained by the speed of light.
- Frame of Reference: A coordinate system used by an observer to measure and describe the positions and motions of objects and events.
- Hypersurface: A generalization of the concept of a surface to spaces of more than three dimensions. In this context, the hypersurface of the present is a 3D spatial slice of 4D spacetime.
- Light Speed (c): The speed at which light propagates in a vacuum, a fundamental constant in physics approximately equal to 299,792,458 meters per second. It is the maximum speed at which information or energy can travel.
- Minkowski Diagram: A graphical representation of spacetime in special relativity, usually showing one spatial dimension and one time dimension. The Light Cone Simulator extends this to two spatial dimensions and one time dimension.
- Null: In the context of the light cone, "null" refers to the spacetime interval between two events that can be connected by a light signal. The light cone is therefore also called the null cone.
- Relativity of Simultaneity: The concept in special relativity that simultaneity is not absolute but depends on the observer's frame of reference. Two events that are simultaneous for one observer may not be simultaneous for another observer in relative motion.
- Spacetime: The unified four-dimensional continuum consisting of three spatial dimensions and one time dimension, in which all physical events occur.
- Temporal: Relating to time. Temporal evolution refers to how something changes over time.
- Trace: The path or sequence of points left by a moving object or event. In the simulation, the colored lines are the traces of events through spacetime.
Sample Learning Goals
[text]
For Teachers
Light Cone Simulator JavaScript Simulation Applet HTML5
Instructions
Draggable Particles
Toggling Full Screen
Play/Pause and Reset Buttons
Research
[text]
Video
[text]
Version:
Other Resources
[text]
Frequently Asked Questions: Light Cone Simulator and Open Educational Resources
1. What is a light cone in the context of special relativity?
In special relativity, a light cone, also known as a null cone, represents the spacetime path that a flash of light, emanating from a single point in space and time, would take as it expands. It defines the boundary between events that are causally connected (within the cone) and those that are not (outside the cone) with respect to the initial event. Visually, if two horizontal axes represent spatial dimensions and the vertical axis represents time, the light cone forms a cone shape, with the initial event at the apex.
2. How does the Light Cone Simulator help visualize this concept?
The Light Cone Simulator is a JavaScript-based interactive tool designed to provide a visual representation of the light cone in Minkowski spacetime. It allows users to observe the temporal evolution of light from different perspectives. The simulation typically shows the light cone for an observer (represented by a blue dot) and traces events from other observers (green and cyan traces) to illustrate how different observers in relative motion perceive the same events within their respective light cones.
3. What does the "draggable particles" feature allow users to do in the simulation?
The "draggable particles" feature enables users to interact directly with the simulation by moving the observer particle (blue) and another particle (cyan) on the hypersurface of the present. By dragging their 2D representations on the graph, users can change the relative positions and states of these observers and observe in real-time how the light cone and the traces of events for different observers are affected by these changes. This helps in understanding the relativity of simultaneity and the observer-dependent nature of spacetime.
4. What is the significance of the different colored traces (blue, green, cyan) in the simulation?
The different colored traces in the Light Cone Simulator represent the worldlines of events as perceived by different observers. Typically, the blue trace corresponds to the observer whose light cone is being visualized. The green and cyan traces represent how other moving observers would perceive the same sequence of events in spacetime. By observing these different traces, users can gain insight into how relative motion affects the observed paths of events through spacetime, a core concept in special relativity.
5. What are some potential learning goals associated with using the Light Cone Simulator?
While specific learning goals are listed as "[text]" in the provided source, based on the description of the simulator, potential learning goals could include: visualizing the concept of a light cone in Minkowski spacetime, understanding the observer-dependent nature of events in special relativity, illustrating the concept of causality and the spacetime interval, exploring the relativity of simultaneity, and gaining an intuitive understanding of worldlines and how they differ for observers in relative motion.
6. Who created the Light Cone Simulator, and where can I find more resources like it?
The Light Cone Simulator was created by Fu-Kwun Hwang from the Department of Physics at National Taiwan Normal University, along with Fremont Teng and Loo Kang Wee. The simulator is part of the Open Educational Resources / Open Source Physics @ Singapore project, which offers a wide variety of interactive resources for learning and teaching physics and mathematics. You can explore their website (iwant2study.org/lookangejss/) for many other JavaScript simulation applets and open educational materials.
7. Can the Light Cone Simulator be embedded in other webpages?
Yes, the Light Cone Simulator can be easily embedded into other webpages using the provided iframe code. This allows educators and content creators to integrate the interactive simulation directly into their online learning materials, providing students with a hands-on tool to explore the concepts of special relativity.
8. What other types of physics and mathematics simulations are available through the Open Educational Resources / Open Source Physics @ Singapore project?
The provided text includes a very extensive list of other interactive simulations available through the project. These cover a wide range of topics in physics, including mechanics (e.g., collisions, oscillations, projectile motion), waves (e.g., wave superposition, reflection), electricity and magnetism (e.g., magnetic fields, circuits, Faraday's law), optics (e.g., reflection, refraction, lenses), thermal physics (e.g., black-body radiation), and quantum physics (e.g., free particle wavepacket). Additionally, there are simulations related to mathematics, such as graphing, differential equations, complex numbers, and geometry. The project aims to provide a rich collection of interactive tools to enhance learning in STEM fields.
