A simulator to understanding the difference in current between Series and Parallel Circuits.

Includes mini drop-down box quiz and interactions with a dragable ammeter, divided between two circuits.



Translations

Code	Language		Translator	Run

Credits

Fremont Teng; lookang

Briefing Document: Current in Series and Parallel Circuits Simulation

1. Overview

This document reviews a resource from Open Educational Resources / Open Source Physics @ Singapore: a JavaScript-based HTML5 simulation applet focused on teaching the differences in current flow between series and parallel circuits. The applet is designed for interactive learning, including a drag-and-drop ammeter and a quiz feature.

2. Key Features and Functionality

• Interactive Simulation: The core of the resource is an interactive simulator that allows users to explore series and parallel circuits.

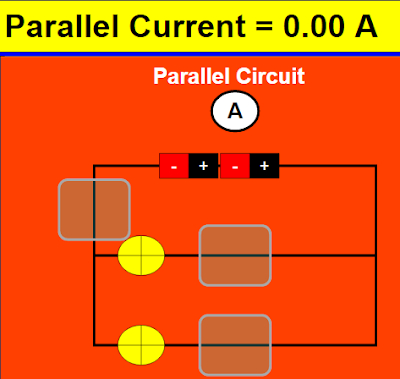

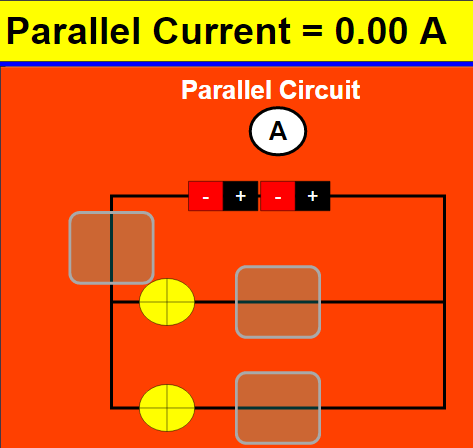

• The user interface is based around the ability to drag and drop an ammeter to various points within the circuit to measure the current.

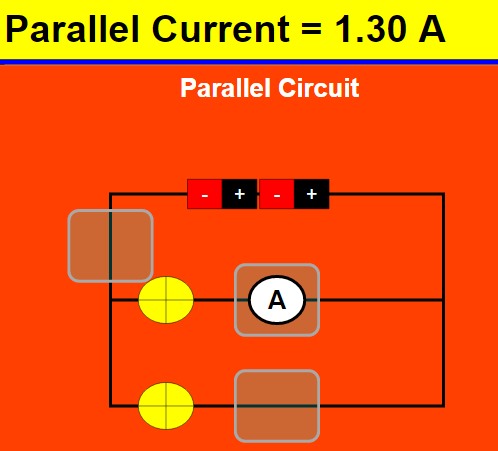

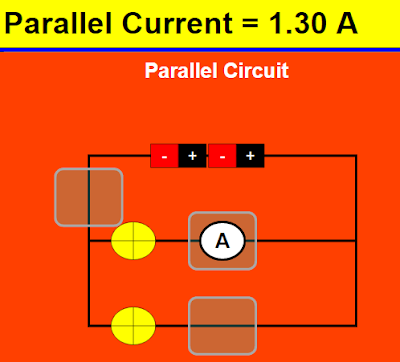

• The ammeter readings are displayed in a yellow panel.
• There is a reset button allowing the user to start again with a fresh circuit.
• Two Circuit Types: The simulation applet is focused on comparing two fundamental circuit configurations:
• Series Circuit: Users can observe how current behaves in a series circuit.
• Parallel Circuit: Users can observe the behavior of current in a parallel circuit.
• Drop-Down Box Quiz: The applet includes a quiz feature that uses a drop-down box for answer selection:
• Users are presented with questions, and need to select the correct answer from the available dropdown menu.

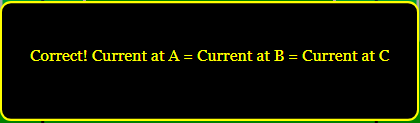

• Correct answers are confirmed via a dialog box.
• Ease of Use: The simulation is designed to be user-friendly:
• The ammeter is drag-and-drop, and transparent cells denote areas where measurements can be taken, making operation intuitive.
• The simulation is web based and requires no additional software.

3. Intended Learning Goals

The simulation aims to provide hands-on understanding of the differences in current flow between series and parallel circuits. While the specific learning goals aren't elaborated in the text, it is clear that the intention is that users:

• Observe and understand the difference in current values at various points in the circuit.
• Gain intuitive knowledge regarding current flow through components in different types of circuits.
• Be able to answer quiz questions related to current in series and parallel circuits.

4. Pedagogical Approach

• Active Learning: The simulation promotes an active learning style, encouraging students to explore the circuit, make measurements, and answer questions.
• Visual Learning: The graphical representation of the circuits and the ammeter readings provides a visual and immediate learning experience.
• Self-Paced: Students can use the simulation at their own pace to test different circuit arrangements and confirm their understanding with the quiz feature.
• Guided Exploration: The step by step instructions for using the applet, starting with observation of the circuit and then measuring current using the draggable ammeter, facilitates directed learning.

5. Target Audience

• The simulation is appropriate for learners who are being introduced to concepts of electric circuits, particularly those learning about current flow in series and parallel arrangements.
• The applet seems to be designed for secondary school students.
• Teachers can use this as a learning tool in class.

6. Technical Aspects

• Technology: The applet is built using JavaScript and HTML5, making it accessible through any modern web browser, without the need for specific browser plugins.
• Embeddable: The simulation can be easily embedded into webpages via an <iframe> tag.
• Open Source: The material is part of an open educational resources project, with the Creative Commons Attribution-Share Alike 4.0 Singapore License.

7. Quotes from the Source

• "A simulator to understanding the difference in current between Series and Parallel Circuits."
• "Drag the ammeter to a 'transparent' cell."
• "Clicking on the Reset Button will enable a full reset on the Simulation."
