1. Overview:

This document provides a briefing on the "Spring Mass System Analogue RLC Circuit JavaScript Simulation Applet HTML5" resource hosted on the Open Educational Resources / Open Source Physics @ Singapore website. This resource is an interactive HTML5 simulation applet designed for educational purposes, specifically to illustrate the analogous behavior between a spring-mass system and an RLC (Resistor-Inductor-Capacitor) circuit in alternating current (AC).

2. Main Themes and Important Ideas/Facts:

• Analogy between Mechanical and Electrical Systems: The core concept of this simulation is to demonstrate the parallels between the components and behaviors of a mechanical spring-mass system and an electrical RLC circuit. This analogy is a powerful tool for understanding complex physical systems by relating them to more intuitive ones. The title itself explicitly states this: "Spring Mass System Analogue RLC Circuit JavaScript Simulation Applet HTML5".
• Interactive Learning Tool: The resource is presented as an interactive JavaScript simulation applet, leveraging HTML5 for accessibility in web browsers without the need for plugins. This interactivity allows users to manipulate parameters and observe the resulting changes in the system's behavior in real-time. The inclusion of the "Embed" code snippet () highlights its intended use for integration into webpages and online learning environments.
• Open Educational Resource: The resource is part of the "Open Educational Resources / Open Source Physics @ Singapore" initiative, indicating that it is intended for free educational use and potentially open to modification and sharing under a Creative Commons license (as indicated at the bottom of the webpage: "Contents are licensed Creative Commons Attribution-Share Alike 4.0 Singapore License").
• Credits and Collaboration: The resource credits Fu-Kwun Hwang from the Dept. of Physics, National Taiwan Normal University; Fremont Teng; and Loo Kang Wee for its creation. This highlights the collaborative nature of open educational resource development.
• Learning Goals (Sample): While the specific learning goals are presented as "[texthttps://iwant2study.org/lookangejss/05electricitynmagnetism_17AC/ejss_model_springRLC/springRLC_Simulation.xhtml " frameborder="0"></iframe>.
• The instructions highlight the interactive elements: "Adjusting the sliders will affect the respective variables in the simulation.", "Double Click anywhere in the panel to toggle full screen.", and "Plays/Pauses, steps and resets the simulation respectively.".

4. Conclusion:

The "Spring Mass System Analogue RLC Circuit JavaScript Simulation Applet HTML5" is a valuable open educational resource that utilizes an interactive JavaScript simulation to illustrate the analogy between mechanical and electrical oscillatory systems. Its accessibility through web browsers, user-friendly controls, and the provision for embedding make it a practical tool for educators looking to enhance student understanding of these concepts. The resource is part of a larger collection of interactive simulations, demonstrating a commitment to using technology to improve physics and mathematics education.



Spring Mass System Analogue RLC Circuit Simulation Study Guide

Quiz

1. What is the main function of the JavaScript simulation applet described in the source?
2. What analogy is being drawn in the title of the applet? Briefly explain the connection between a spring-mass system and an RLC circuit.
3. How can users interact with the simulation according to the provided instructions? Name at least two methods.
4. Who are credited with the development or contribution to this simulation applet?
5. Where can a user find the HTML code to embed this simulation into a webpage?
6. What does the "Embed" functionality allow users to do with the simulation?
7. Besides this specific simulation, what other types of physics or mathematics related interactive resources are listed on the same webpage? Provide at least two examples.
8. What do the "Play/Pause," "Step," and "Reset" buttons do in the context of the simulation?
9. Under what category of the website's navigation is this simulation located?
10. What type of license governs the content provided on the Open Educational Resources / Open Source Physics @ Singapore website?

Answer Key

1. The main function of the JavaScript simulation applet is to provide an interactive model of a Spring Mass System Analogue RLC Circuit, allowing users to observe the behavior of these systems and explore the relationships between their variables.
2. The title draws an analogy between a mechanical spring-mass system and an electrical RLC circuit. Both systems exhibit oscillatory behavior, with energy being stored and exchanged between different forms (potential and kinetic energy in the spring-mass system; energy in capacitors, inductors, and resistors in the RLC circuit).
3. Users can interact with the simulation by adjusting sliders to change variable values and by using buttons such as "Play/Pause," "Step," and "Reset" to control the simulation's progression. Additionally, double-clicking in the panel toggles full screen.
4. Fu-Kwun Hwang from the Dept. of Physics, National Taiwan Normal Univ.; Fremont Teng; and Loo Kang Wee are credited with the development or contribution to this simulation applet.
5. The HTML code to embed the simulation into a webpage is located directly beneath the "Embed" heading, provided within an <iframe> tag.
6. The "Embed" functionality allows users to integrate the interactive Spring Mass System Analogue RLC Circuit simulation directly into their own webpages.
7. Besides this simulation, the webpage lists other interactive resources related to topics such as wave phenomena (e.g., Wave in 2D of Particles and Springs), thermodynamics (e.g., Pressure Volume Diagram), mechanics (e.g., Roller Coaster Simulator), and mathematics (e.g., Exploring Optimization Through Interactive Pathfinding).
8. The "Play/Pause" button starts and stops the simulation's animation. The "Step" button advances the simulation by a single time increment. The "Reset" button returns the simulation to its initial conditions.
9. This simulation is located under the navigation path: Home > Interactive Resources > Mathematics.
10. The content on the Open Educational Resources / Open Source Physics @ Singapore website is licensed under a Creative Commons Attribution-Share Alike 4.0 Singapore License.

Essay Format Questions

1. Discuss the educational benefits of using interactive JavaScript simulations, like the Spring Mass System Analogue RLC Circuit applet, for learning physics and mathematics concepts.
2. Explain the concept of analogy in physics and elaborate on the similarities and differences between a mechanical spring-mass system and an electrical RLC circuit. How does the simulation applet help illustrate this analogy?
3. Based on the limited information provided, propose several learning activities or experiments that teachers could implement using this Spring Mass System Analogue RLC Circuit simulation applet in their classrooms.
4. Analyze the structure and organization of the Open Educational Resources / Open Source Physics @ Singapore website based on the provided excerpt. What features contribute to its potential as a valuable resource for educators and learners?
5. Consider the accessibility and usability of the embedded simulation. What are the advantages and potential limitations of providing interactive learning resources through embedded HTML5 applets?

Glossary of Key Terms

• Applet: A small application, often written in Java or JavaScript, designed to be run within another application (like a web browser).
• RLC Circuit: An electrical circuit consisting of a resistor (R), an inductor (L), and a capacitor (C), connected in series or in parallel. These circuits can exhibit oscillatory behavior due to the interplay of energy storage in the inductor and capacitor and energy dissipation in the resistor.
• Spring Mass System: A mechanical system consisting of a mass attached to a spring. When displaced from its equilibrium position, the system oscillates due to the restoring force of the spring and the inertia of the mass.
• Analogue: Something that is similar or comparable to something else, either in general or in specific details. In this context, it refers to the similar mathematical and physical behaviors of the spring-mass system and the RLC circuit.
• JavaScript: A high-level, often just-in-time compiled programming language that conforms to the ECMAScript specification. It is widely used as a client-side scripting language for web pages, allowing for interactive and dynamic content.
• HTML5: The latest evolution of the standard that defines HTML (HyperText Markup Language). It supports new multimedia elements and APIs that allow for richer interactive web applications without the need for plugins.
• Open Educational Resources (OER): Teaching, learning, and research materials that are in the public domain or have been released under an open license, permitting no-cost access, use, adaptation, and redistribution by others with no or limited restrictions.
• Open Source Physics (OSP): A project focused on creating and disseminating freely available physics courseware, including simulations, videos, and other resources, often with modifiable source code.
• Simulation: A computer program that models a real or hypothetical system to show how the system behaves under different conditions or over time.
• Embed: To integrate an object or content (such as a video or an applet) from one digital location into another, for example, inserting a YouTube video into a webpage.

Sample Learning Goals

[text]

For Teachers

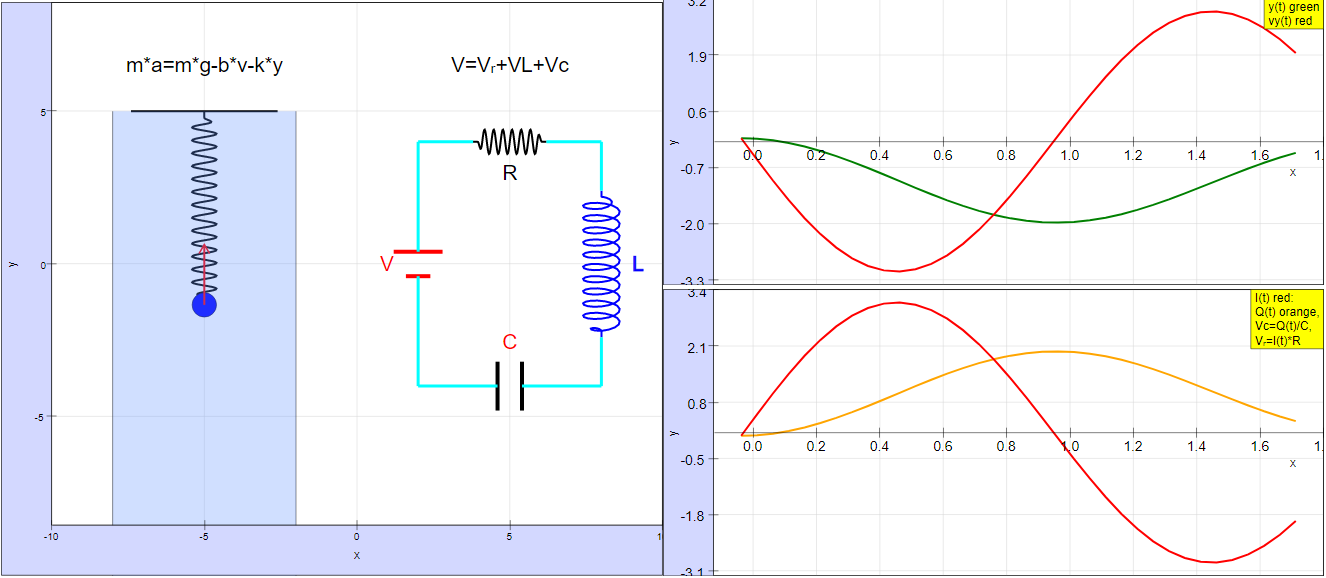

Spring Mass System Analogue RLC Circuit JavaScript Simulation Applet HTML5

Instructions

Sliders

Toggling Full Screen

Play/Pause, Step and Reset Buttons

Research

[text]

Video

[text]

 Version:

Other Resources

[text]

Frequently Asked Questions: Spring Mass System Analogue RLC Circuit Simulation

1. What is the purpose of the Spring Mass System Analogue RLC Circuit JavaScript Simulation Applet?

This interactive simulation is designed as an open educational resource to help learners visualize and understand the analogous relationship between a mechanical spring-mass system and an electrical RLC (Resistor-Inductor-Capacitor) circuit. By manipulating parameters in the simulation, users can observe how changes in one system directly correspond to changes in the other, fostering a deeper understanding of both physical phenomena.

2. Who created this simulation and where can I find it?

This HTML5-based JavaScript simulation applet was developed by Fu-Kwun Hwang from the Dept. of Physics at National Taiwan Normal University, with contributions from Fremont Teng and Loo Kang Wee. It is hosted by Open Educational Resources / Open Source Physics @ Singapore and can be accessed and embedded via the provided iframe link: https://iwant2study.org/lookangejss/05electricitynmagnetism_17AC/ejss_model_springRLC/springRLC_Simulation.xhtml.

3. How can I interact with the simulation?

The simulation features interactive elements such as sliders, play/pause, step, and reset buttons. Users can adjust the sliders to modify the variables within the simulated spring-mass system and RLC circuit, observing the immediate effects of these changes. Double-clicking within the panel allows toggling to full-screen mode for better visualization.

4. What are the learning goals associated with this simulation?

While specific learning goals are not detailed in the provided text, the nature of the simulation suggests goals related to understanding the concepts of oscillation, damping, resonance, energy storage and transfer in both mechanical and electrical systems, and the mathematical analogies between these systems (e.g., mass and inductance, damping coefficient and resistance, spring constant and inverse capacitance).

5. Is this simulation intended for a specific educational level?

Given its inclusion under "Mathematics" and the physics concepts involved (AC circuits, oscillations), this simulation is likely suitable for secondary school (high school) and potentially introductory undergraduate physics courses. It could also be a valuable tool for motivated learners of any age interested in exploring these concepts.

6. Are there any resources or supporting materials available for teachers using this simulation?

The "For Teachers" section indicates the availability of instructions on how to use the sliders and other interactive elements. However, the provided text does not explicitly mention additional resources such as lesson plans or worksheets. Teachers may need to develop their own supplementary materials to fully integrate the simulation into their lessons.

7. Is this simulation open source and can it be used commercially?

The simulation is presented as part of "Open Educational Resources / Open Source Physics @ Singapore," and its content is licensed under the Creative Commons Attribution-Share Alike 4.0 Singapore License. This generally allows for free use and sharing, with attribution. However, the underlying EasyJavaScriptSimulations Library used to create the simulation has a separate commercial use license, which requires contacting This email address is being protected from spambots. You need JavaScript enabled to view it. for permission and details.

8. Besides this simulation, what other types of interactive resources are available from Open Educational Resources / Open Source Physics @ Singapore?

The extensive list of links provided showcases a wide variety of interactive JavaScript simulations covering diverse topics in physics and mathematics. These include mechanics (e.g., projectile motion, collisions), waves (e.g., wave superposition, diffraction), thermodynamics (e.g., pressure-volume diagrams), electricity and magnetism (e.g., magnetic fields, Faraday's law, circuits), optics (e.g., refraction, lenses), and mathematical concepts (e.g., graphing, calculus). The platform offers a rich collection of tools for interactive learning and exploration.
