Overview:

This briefing document reviews the information provided on the Open Educational Resources / Open Source Physics @ Singapore website regarding their "3D Visualization of Magnetic Field From A Bar Magnet JavaScript Simulation Applet HTML5". This resource is an interactive tool designed for learning and teaching about the magnetic field produced by a bar magnet.

Main Themes and Important Ideas/Facts:

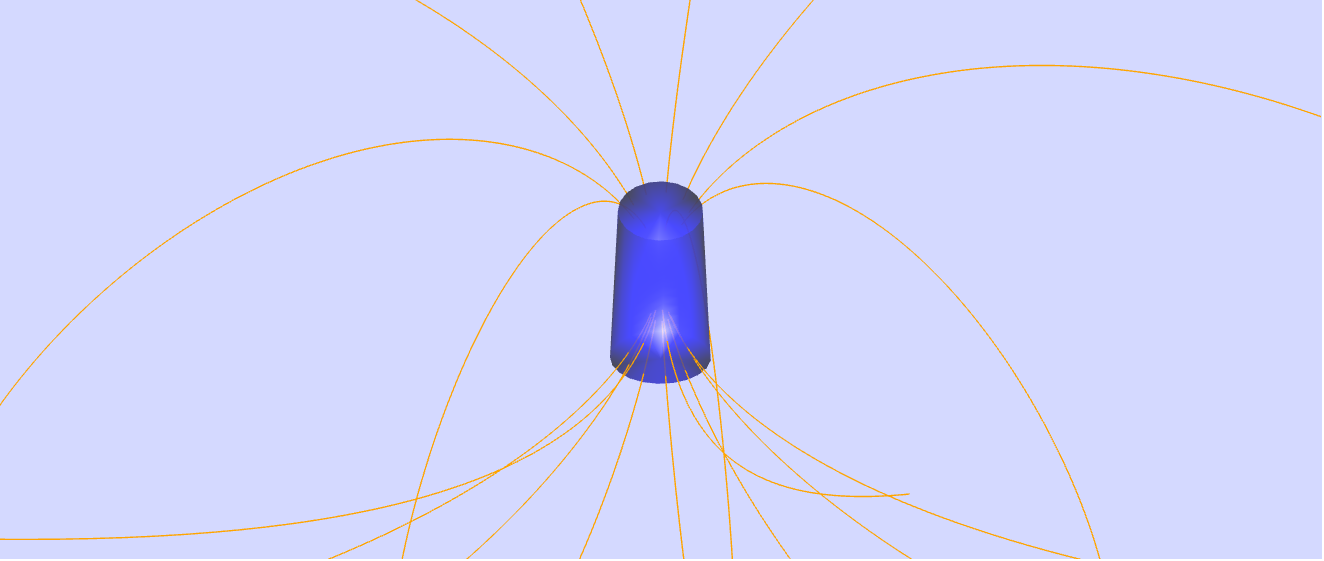

1. Interactive Learning Tool: The core of this resource is a JavaScript simulation applet built using HTML5, allowing users to visualize the magnetic field of a bar magnet in three dimensions. The website provides an embeddable iframe link for easy integration into other web pages:
2. <iframe width="100%" height="100%" src="https://iwant2study.org/lookangejss/05electricitynmagnetism_20magnetism/ejss_model_fieldlines3Dwee/fieldlines3Dwee_Simulation.xhtml " frameborder="0"></iframe>
3. This highlights the platform's commitment to providing readily usable interactive educational materials.
4. Customizable Visualization: The applet includes sliders that enable users to configure key parameters of the simulation, specifically:

• Number of B-Field lines: Users can adjust the density of the magnetic field lines displayed, allowing for a visual understanding of the field's strength and distribution.
• Magnet size: The dimensions of the bar magnet can be altered, likely demonstrating the effect of size on the magnetic field's extent and strength.

1. This interactivity allows learners to explore the relationship between these parameters and the resulting magnetic field.
2. User Controls: The simulation features standard playback controls:

• Play/Pause: To start and stop the dynamic visualization.
• Step: To advance the simulation frame-by-frame, potentially for detailed observation.
• Reset: To return the simulation to its initial state.

1. These controls provide flexibility for users to interact with the simulation at their own pace.
2. Full-Screen Capability: The applet offers a full-screen toggle, activated by double-clicking on the screen (though this feature is noted to not work while the simulation is playing). This enhances the viewing experience by maximizing the display area.
3. Open Educational Resource: The resource is part of the "Open Educational Resources / Open Source Physics @ Singapore" initiative, indicating its commitment to freely accessible educational materials. The content is licensed under the Creative Commons Attribution-Share Alike 4.0 Singapore License, promoting sharing and adaptation under specific conditions.
4. Credited Developers: The creators of the simulation are credited as Wee Loo Kang, Mike Galis, Wolfgang Christian, Fremont Teng, and Mike Gallis. This provides transparency and acknowledges the work involved in developing the resource.
5. Sample Learning Goals (Placeholder): The presence of a "[text]" placeholder under "Sample Learning Goals" suggests that specific learning objectives for this simulation are intended to be provided, though they are not included in the provided excerpts. These would typically outline what students should be able to understand or do after interacting with the simulation.
6. For Teachers Section (Placeholder): Similarly, a "[text]" placeholder under "Research" and "Video" within the "For Teachers" section indicates that supplementary materials and pedagogical guidance for educators are likely available on the full webpage but are not present in these excerpts.
7. Related Resources: The "Other Resources" section lists numerous links to other interactive simulations related to magnetism and electricity, as well as other physics topics. This demonstrates a broader collection of educational tools available on the platform. Notably, there are specific links related to bar magnets, such as:

• "Need a Bar Magnet and Earth?"
• "Need a Bar Magnet Field Line?"
• "Need 2 Bars Magnet?"
• "Need a 3D visualization of a Bar Magnet Field Line?"
• "Bar Magnet Field Line Simulator JavaScript Simulation Applet HTML5"
• "Bringing the EJS Java based Magnetic Bar Field Simulation to Life in HTML5 using GPTo1"
• "🧲2 Magnetic Bars Field JavaScript HTML5 Applet Simulation Model"

1. This suggests a suite of simulations focusing on different aspects of bar magnets and their magnetic fields.
2. Use of Easy JavaScript Simulations (EJS): The mention of the "EasyJavaScriptSimulations Library" and the contact information for commercial use implies that this simulation, and potentially others on the platform, are built using this library. This is a tool specifically designed for creating interactive science simulations.
3. Wide Range of Physics and Math Simulations: The extensive list of other simulations available on the website, covering topics from kinematics and dynamics to waves, electricity, magnetism, and even mathematics, showcases the breadth of educational resources offered by Open Source Physics @ Singapore.
4. Focus on Interactive and Visual Learning: The emphasis on JavaScript/HTML5 applets across the listed resources underscores a commitment to interactive and visual learning experiences in science and mathematics education.

Potential Use Cases:

• Classroom Demonstrations: Teachers can use the embedded simulation to visually explain the concept of magnetic fields around a bar magnet in 3D.
• Student Exploration: Students can interact with the sliders and controls to investigate how changes in magnet size and the number of field lines affect the visualization.
• Homework and Self-Study: The embeddable nature allows students to access and interact with the simulation outside of the classroom.

Conclusion:

The "3D Visualization of Magnetic Field From A Bar Magnet JavaScript Simulation Applet HTML5" is a valuable interactive resource for teaching and learning about magnetism. Its customizable features and user-friendly controls allow for engaging exploration of magnetic field concepts. As part of a larger collection of open educational resources, it highlights the platform's dedication to providing accessible and effective tools for science education. The placeholders for learning goals and teacher resources suggest that further pedagogical support is likely available on the full webpage.



Study Guide: 3D Visualization of a Bar Magnet's Magnetic Field

Key Concepts

• Magnetism: A physical phenomenon produced by the motion of electric charge, resulting in attractive and repulsive forces between objects.
• Magnetic Field: A region around a magnet or current-carrying conductor where magnetic forces are exerted. Magnetic fields are represented by field lines.
• Bar Magnet: A permanent magnet in the shape of a rectangular prism or cylinder with two poles, a north pole and a south pole.
• Magnetic Field Lines: Imaginary lines used to visualize the direction and strength of a magnetic field. They emerge from the north pole and enter the south pole of a magnet, forming closed loops. The density of the lines indicates the strength of the field.
• 3D Visualization: The representation of objects and data in three dimensions, allowing for a more comprehensive understanding of spatial relationships.
• JavaScript Simulation Applet: An interactive computer program written in JavaScript that simulates a physical phenomenon, in this case, the magnetic field of a bar magnet.
• HTML5: The latest version of the standard markup language for creating web pages, enabling multimedia and interactive elements like simulations.
• Open Educational Resources (OER): Teaching, learning, and research materials that are freely available and can be reused, adapted, and redistributed.
• Open Source Physics (OSP): An initiative focused on creating and disseminating open-source computational tools and resources for physics education.
• Sliders: Interactive graphical elements that allow users to adjust parameters in a simulation.
• Toggling Full Screen: The action of switching between a windowed view and a full-screen view.
• Play/Pause, Step, and Reset Buttons: Common controls for interactive simulations, allowing users to control the animation or process.
• Embed: To integrate content, such as a simulation, from one website into another.
• Credits: Acknowledgement of the individuals or teams who created the resource.
• Learning Goals: Specific objectives that learners are expected to achieve through the use of the resource.
• Instructions: Directions on how to interact with the simulation.
• Other Resources: Links to related learning materials or simulations.

Short Answer Quiz

1. What is the purpose of the 3D visualization simulation described in the source material?
2. According to the text, what two parameters can users configure using the sliders in the simulation?
3. How can a user toggle the full-screen mode of the simulation, and when might this function not work?
4. Describe the function of the "Play/Pause," "Step," and "Reset" buttons in the context of the simulation.
5. What does the acronym OER stand for, and how does it relate to the provided simulation?
6. What programming language is the simulation applet written in, and what web technology allows it to be embedded in a webpage?
7. Explain the concept of magnetic field lines as they relate to the visualization provided by the simulation.
8. Who are some of the individuals credited for the development of this 3D visualization resource?
9. Besides adjusting the magnetic field lines and magnet size, what other functionalities does the simulation interface provide according to the instructions?
10. Based on the "Other Resources" section, what other related physics topics and simulations are available on the Open Educational Resources / Open Source Physics @ Singapore website?

Answer Key

1. The purpose of the 3D visualization simulation is to provide an interactive and three-dimensional representation of the magnetic field produced by a bar magnet, aiding in the understanding of this abstract concept.
2. Users can configure the number of magnetic field lines displayed and the size of the bar magnet using the provided sliders.
3. A user can toggle full-screen mode by double-clicking anywhere on the screen. This function may not work when the simulation is actively playing.
4. The "Play/Pause" button starts or stops the animation of the magnetic field visualization, the "Step" button likely advances the simulation by a single increment, and the "Reset" button returns the simulation to its initial state.
5. OER stands for Open Educational Resources, which are freely available teaching and learning materials. This simulation is an example of an OER as it is openly accessible and intended for educational purposes.
6. The simulation applet is written in JavaScript, and it utilizes HTML5 to be embedded and run within a web browser.
7. Magnetic field lines are imaginary lines that represent the direction and strength of the magnetic field around the bar magnet. In the visualization, these lines emerge from the north pole, curve around, and enter the south pole, with their density indicating field strength.
8. Wee Loo Kang, Mike Galis, Wolfgang Christian, Fremont Teng, Mike Gallis, and Wolfgang Christian are credited for the development of this resource.
9. Besides adjusting sliders, the simulation interface includes buttons for playing, pausing, stepping through, and resetting the simulation, and it also allows toggling to full-screen mode.
10. The "Other Resources" section indicates the availability of other simulations related to magnetism, such as simulations involving bar magnets and the Earth's magnetic field, field lines, multiple magnets, and demonstrations of magnetism passing through non-magnetic materials, among many other physics topics.

Essay Format Questions

1. Discuss the benefits of using 3D visualizations, such as the bar magnet simulation, in physics education compared to traditional two-dimensional representations. How does the interactive nature of the JavaScript applet enhance learning about magnetic fields?
2. Explain the relationship between magnetic poles and magnetic field lines in a bar magnet. Based on what you would expect to observe in the 3D simulation, describe the characteristics of the magnetic field lines around a bar magnet, including their direction and density.
3. Considering the principles of Open Educational Resources and Open Source Physics, analyze the significance of providing free and embeddable simulations like this one for science education globally. What are the potential impacts on accessibility and pedagogical approaches?
4. The provided text lists numerous other physics simulations available on the same platform. Choose three other simulation titles that seem related to electricity and magnetism or other physics concepts you are familiar with and discuss how these resources, in conjunction with the bar magnet simulation, could contribute to a more comprehensive understanding of physics.
5. Reflect on the "Instructions" provided for the 3D bar magnet visualization. How do the simple interactive elements (sliders, buttons, full-screen toggle) contribute to the user's ability to explore and understand the magnetic field? What are some potential learning activities that could be designed around this simulation for students?

Glossary of Key Terms

• Applet: A small application, often written in Java or JavaScript, that runs within another program, typically a web browser.
• B-Field Lines: Another term for magnetic field lines, where "B" represents the magnetic field vector.
• Dipole: A system with two equal and opposite magnetic poles (north and south), such as a bar magnet.
• Electromagnetism: The interaction between electric and magnetic fields. Changes in one field induce the other.
• Field Strength: The intensity of a magnetic field, often indicated by the density of magnetic field lines. A higher density of lines signifies a stronger field.
• Interactive Simulation: A computer program that allows users to manipulate variables and observe the resulting changes in a modeled system.
• Permanent Magnet: An object that produces its own persistent magnetic field due to the alignment of the magnetic moments of its atoms.

Sample Learning Goals

[text]

For Teachers

3D Visualization of Magnetic Field From A Bar Magnet JavaScript Simulation Applet HTML5

Instructions

Sliders

Toggling Full Screen

Play/Pause, Step and Reset Buttons

Research

[text]

Video

[text]

 Version:

Other Resources

1. Need a Bar Magnet and Earth?
2. Need a Bar Magnet Field Line?
3. Need 2 Bars Magnet?
4. Need a 3D visualization of a Bar Magnet Field Line?
5. Need 2 Bar Magnets on a level surface for Primary School Science?
6. Need Riveting and Rotating Paperclip and Magnet to demonstrate magnetism passes through non-magnetic materials
7. Need Suspended Magnet with effects of Heating?
8. Need Stacking Ring Magnets?
9. Need More Simulations? Check this out!

Frequently Asked Questions: 3D Magnetic Field Visualization Simulation

What is the purpose of the 3D Magnetic Field from a Bar Magnet JavaScript Simulation Applet HTML5?

This simulation allows users to interactively visualize the three-dimensional magnetic field lines produced by a bar magnet. It is designed as an open educational resource to aid in learning and teaching the principles of magnetism.

How can I interact with the simulation?

The simulation provides sliders to adjust the number of magnetic field lines displayed and the size of the bar magnet. There are also buttons to play, pause, step through, and reset the simulation. Double-clicking on the screen toggles full-screen mode (though this function may not work while the simulation is playing).

Where can this simulation be used?

The simulation can be embedded into webpages using the provided iframe code, making it accessible for online learning platforms, educational websites, and digital resources.

Who developed this simulation?

The simulation was created by Wee Loo Kang, Mike Galis, and Wolfgang Christian, with contributions from Fremont Teng, Mike Gallis, and Wolfgang Christian. It is part of the Open Educational Resources / Open Source Physics @ Singapore project.

What are some suggested learning goals for using this simulation?

The provided text mentions "Sample Learning Goals" but does not specify them. Typically, learning goals for such a simulation would include understanding the shape and direction of magnetic field lines around a bar magnet, visualizing the 3D nature of the magnetic field, and observing how the field lines emerge from one pole and enter the other.

Are there other related resources available on this platform?

Yes, the platform offers a wide variety of interactive physics simulations covering topics such as magnetism (including simulations for bar magnets, magnetic loops, and Helmholtz coils), mechanics, waves, electricity, and optics. There are also simulations for mathematics and even some interactive games.

Is this simulation free to use for educational purposes?

Yes, as part of the Open Educational Resources / Open Source Physics @ Singapore project, the content is licensed under the Creative Commons Attribution-Share Alike 4.0 Singapore License, suggesting it is free to use and share for educational purposes, with attribution. Commercial use of the underlying EasyJavaScriptSimulations Library has separate licensing terms.

What other types of interactive learning tools can be found on this website?

Beyond physics simulations, the website hosts interactive tools for mathematics, chemistry (via links to PHET simulations), and even some literacy-focused interactives. These range from simulations of physical phenomena to games for learning basic math skills and tools for exploring geometric concepts.
